Item PHB1 (PHB105) PHB2 (PHB2.5) Single Unit Weight 0.5 kg 1.1 kg Package Specification 10 pieces per set 5 pieces per set Standard Size CETOP 5 CETOP 5 Port Configuration P-T-B-A all closed (code 0) Multiple configurations available, codes 0-5 (refer to symbol description) Total Thickness 14 mm 30 mm Mounting Hole Spec M4 Ø6.5, fits N°5 OR 2050 seal M4 Ø6.5, fits N°5 OR 2050 seal Overall Dimension (L×H) 66 mm × 85 mm 66 mm × 85 mm
Pehel/PHB215/High Pressure Hydraulic Oil Block/Sizes Can Be Customized
PEHEL Hydraulic Model: PHB215
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: Manifold Block
Thread Type: Can be customized
About the item:
1.Precise Standard Compatibility:Fully compliant with CETOP 5 standard, matching mainstream hydraulic valve systems for stable installation.
2.Customizable Configurations:Multiple port opening/closing combinations available, custom sizes supported to fit special hydraulic system demands.
3.High Pressure Resistance:Premium material treatment ensures stable performance under high hydraulic pressure, no leakage risk.

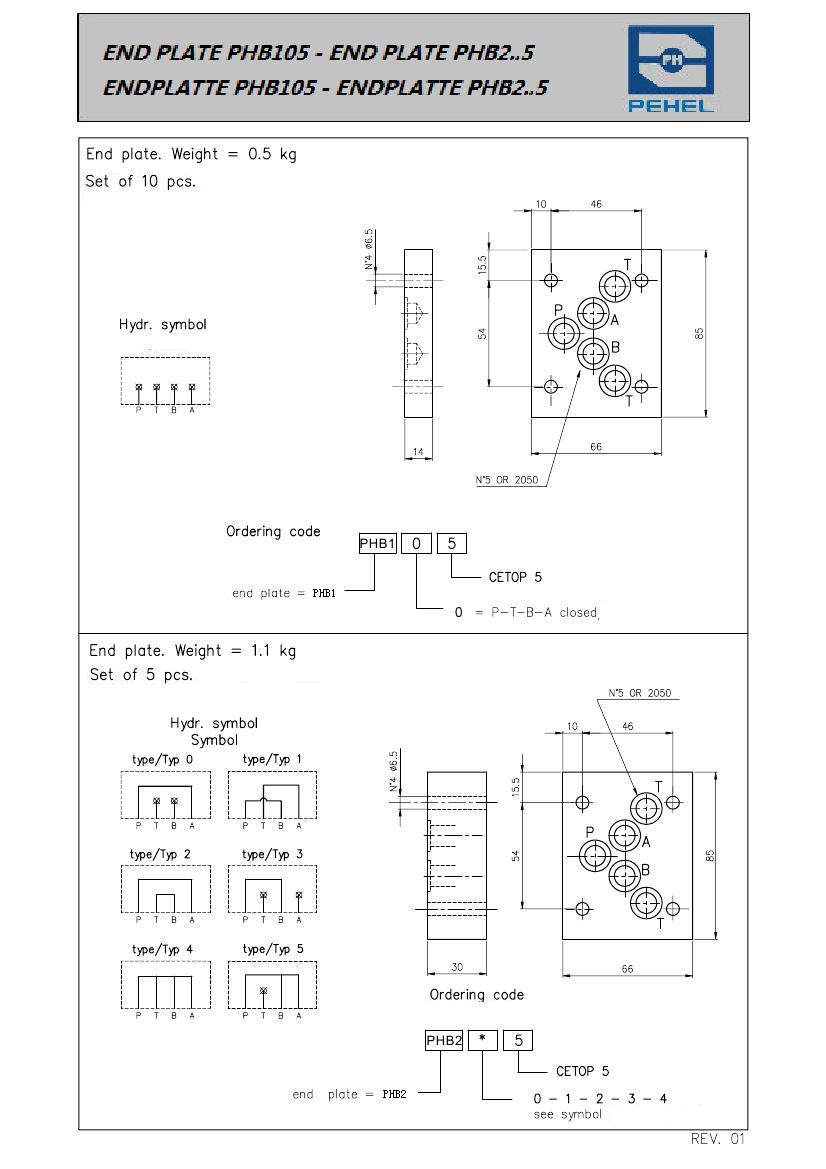

- 1. End plate. Weight=0.5kg, set of 10 pcs
2. End plate. Weight=1.1kg, set of 5 pcs
3. Scientific design and precise manufacturing
4. High performance and cost effective.
