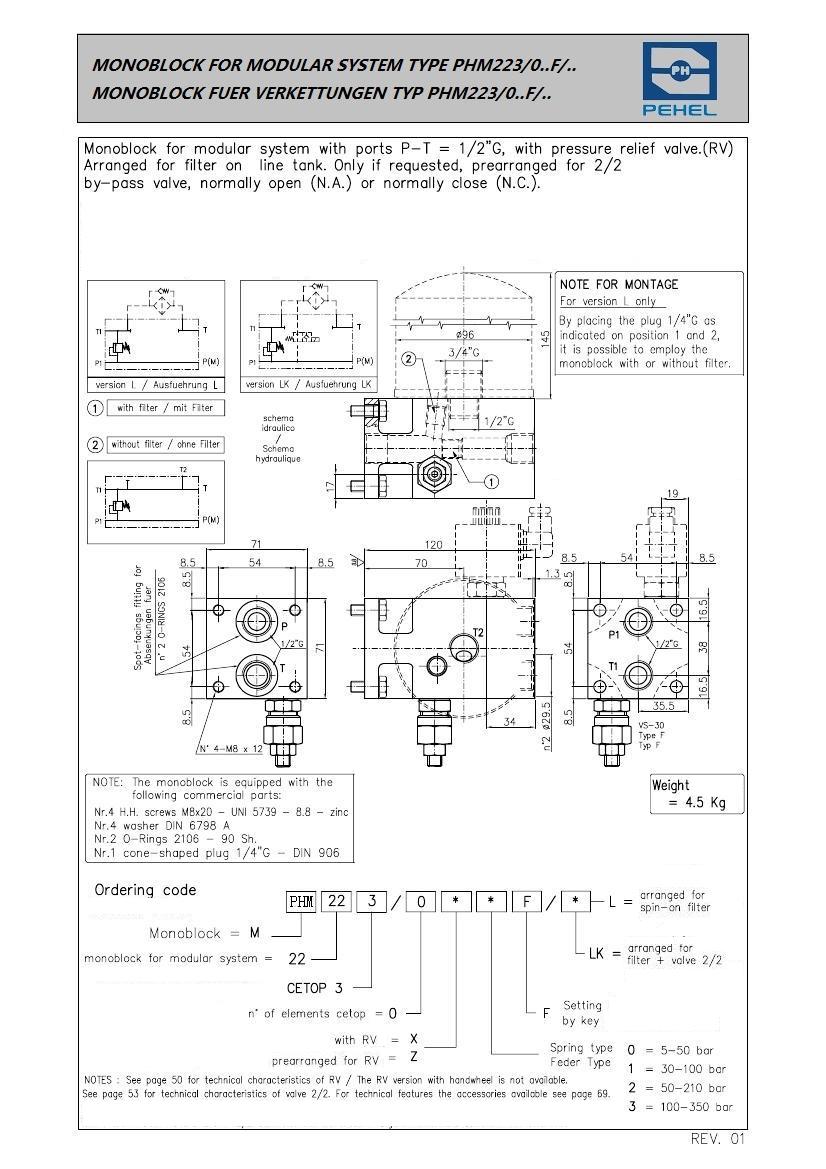

Basic Information Model: PHM223/0..Brand: PEHELWeight: 4.5 KgOrdering Code: PHM 22 3 / 0 * * F / * - L/LK Configuration Versions Version L: For spin-on filterVersion LK: For filter + 2/2 valveNote: The monoblock can be assembled with or without a filter by placing the plug 1/4"G at position 1 and 2 Built-in Components 4 pcs M8x20 - UNI 5739 - 8.8 - zinc plated high-strength screws4 pcs washer 6798 A2 pcs O-Rings 2106 - 90 Sh1 pc cone-shaped plug 1/4"G - DIN 906 Interface & Structure P-T Interface: 1/2"GSpring Type Pressure Range: 0=5-50 bar, 1=50-100 bar, 2=50-210 bar, 3=100-350 bar Valve Parameters 2/2 bypass valve: Normally open (N.A.) or normally close (N.C.)Note: RV version with handwheel is not available. Technical characteristics of RV see page 50, 2/2 valve see page 53
Pehel/PHM2230/High Pressure Hydraulic Manifold Block With Relif Valve
PEHEL Hydraulic Model: PHM2230...FLK
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: Manifold Block
Thread Type: BSP
About the item:1. Monoblock for modular system with ports P-T=1/2”G2. With pressure relief valve. (RV)3. Arranged for filter on line tank.4. Only if requested, prearranged for 2/2 by pass valve, normally open (N.A.) or normally close (N.C.).5. Superior in quality and competitive in price
