PART NO. THREAD DIMENSIONS E F A L S1 5TN-02SP R1/8"X28 Z1/8"X27 10 26 17 5TN-04-02SP R1/4"X19 Z1/8"X27 14.5 22 17 5TN-04SP R1/4"X19 Z1/4"X18 14.5 34.5 19 5TN-06-02SP R3/8"X19 Z1/8"X27 15 23 19 5TN-06-04SP R3/8"X19 Z1/4"X18 15 23 19 5TN-06SP R3/8"X19 Z3/8"X18 15 36.5 24 5TN-08-04SP R1/2"X14 Z1/4"X18 20 29 24 5TN-08-06SP R1/2"X14 Z3/8"X18 20 28.5 24 5TN-08SP R1/2"X14 Z1/2"X14 20 47 30 5TN-12-06SP R3/4"X14 Z3/8"X18 20 30.5 30 5TN-12-08SP R3/4"X14 Z1/2"X14 20 30.5 32 5TN-12SP R3/4"X14 Z3/4"X14 20 49 36 5TN-16-04SP R1"X11 Z1/4"X18 25.5 35.5 36 5TN-16-06SP R1"X11 Z3/8"X18 25.5 35.5 36 5TN-16-08SP R1"X11 Z1/2"X14 25.5 35.5 36 5TN-16-12SP R1"X11 Z3/4"X14 25.5 36.5 36 5TN-16SP R1"X11 Z1"X11.5 25.5 60 41 5TN-20-08SP R1.1/4"X11 Z1/2"X14 26.5 38.5 46 5TN-20-12SP R1.1/4"X11 Z3/4"X14 26.5 38.5 46 5TN-20-16SP R1.1/4"X11 Z1"X11.5 26.5 41 46 5TN-20SP R1.1/4"X11 Z1.1/4"X11.5 26.5 58.5 50 5TN-24-08SP R1.1/2"X11 Z1/2"X14 26.5 41 50 5TN-24-12SP R1.1/2"X11 Z3/4"X14 26.5 41 50 5TN-24-16SP R1.1/2"X11 Z1"X11.5 26.5 41.5 50 5TN-24-20SP R1.1/2"X11 Z1.1/4"X11.5 26.5 41.5 50 5TN-32-12SP R2"X11 Z3/4"X14 30 46 65 5TN-32-16SP R2"X11 Z1"X11.5 30 47 65 5TN-32-20SP R2"X11 Z1.1/4"X11.5 30 47 65 5TN-32-24SP R2"X11 Z1.1/2"X11.5 30 47 65 5TN-32SP R2"X11 Z2"X11.5 30 64 70

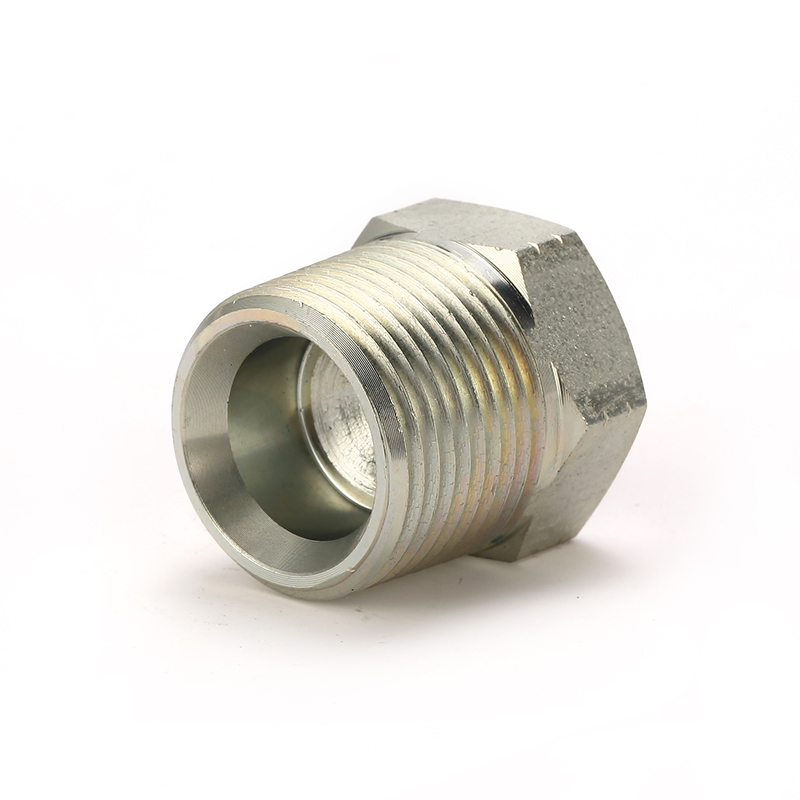

PEHEL/BSPT MALE/NPT FEMALE
PEHEL Hydraulic Model: 5TN-SP
QTY:
BSPT MALE/NPT FEMALE ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type 1: BSPT MALE
Thread Type 2: NPT FEMALE
About the item:
- 1. Professional thread transition connector designed to link BSPT (R taper male, 55° thread angle) and NPT (Z taper female, 60° thread angle) systems, solving the connection barrier between European British standard pipelines and American standard hydraulic equipment.
- 2. Complete full-size specifications covering thread range from 1/8" up to 2", including same-size straight adapters and multi-size reducing transition models, fully matching various pipeline layout conversion demands for flexible on-site assembly.
- 3. Made of high-strength carbon steel with precise CNC thread cutting and uniform zinc plating anti-corrosion treatment; accurate taper thread machining ensures tight fit with PTFE tape for stable leak-proof performance under medium and high hydraulic pressure.
- 4. Integrated hexagonal wrench flat on the main body, with standardized dimension parameters (A, L, S1) for easy torque control during installation and disassembly, fully interchangeable with mainstream international hydraulic adapter brands.
- 5. Widely applied in engineering machinery, injection molding machines, pneumatic equipment, hydraulic power units and general industrial fluid systems, ideal for cross-standard pipeline transformation with stable quality and cost-effective performance.
