PART NO. tdREAD E HOSE BORE DIMENSIONS DN DASH A C H S1 S2 Per hundred weight Weight per case P26791K-04-04PO 7/16"X20 6 4 11.7 9 18 11 17 200 P26791K-06-04PO 9/16"X18 6 4 14 10.5 20.5 14 19 200 P26791K-06-06PO 9/16"X18 10 6 15.5 10.5 21 16 19 100 P26791K-08-06PO 3/4"X16 10 6 16 11 22.5 16 24 80 P26791K-08-08PO 3/4"X16 12 8 15.7 11 22.5 19 24 60 P26791K-10-10PO 7/8"X14 16 10 18.5 12 27.5 22 27 100 P26791K-12-12PO 1.1/16"X12 20 12 21.5 15 30 27 32 70

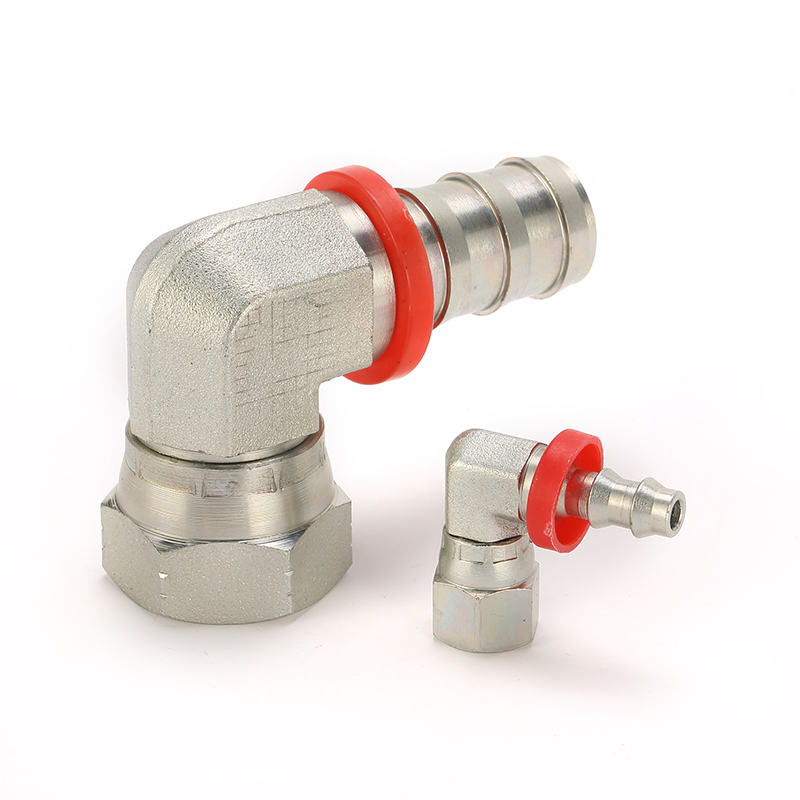

Pehel/26791K-PO/Female JIC 37° Cone Elbow Compact Socketless Hose Fitting
PEHEL Hydraulic Model: P26791K-PO
QTY:
90 Elbow Fitting 26791K JIC Female Compact Pipe Fitting 74 Cone Seat SAE J514 Hydraulic Hose Fitting
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: JIC 37° Cone
About the item:
1.Precision 37° cone profile for SAE J514 standard seal
2.Insert-fit no-weld structure for quick tubing assembly
3.Smooth full inner bore to eliminate flow turbulence
4.High-tensile alloy steel for 6000psi rated pressure
5.Anti-slip knurled insert end for firm tubing grip
