PEHEL | BSP MALE/METRIC MALE WITH O-RING ADAPTER| Fast Delivery

PEHEL | BSP MALE/METRIC MALE WITH O-RING ADAPTER| Fast Delivery

PEHEL Hydraulic Model: 1ZE

QTY:

  • 1. Stainless Steel & Carbon Steel Material Available

    2. Anti-corrosion, High Pressure Resistant

    3. In Stock, Fast Delivery, Custom Service Supported

  • Specification
  • You May Also Like
  • PART NO. THREAD O-RING DIMENSIONS
    E F F A B L S1
    1ZE-04-14 G1/4"X19 M14X1.5 10X1.9 12 11 29 19
    1ZE-06-22 G3/8"X19 M22X1.5 16X2.4 13.5 12 33.5 24
    1ZE-08-22 G1/2"X14 M22X1.5 16X2.4 16 13 39 30
    1ZE-08-30 G1/2"X14 M30X1.5 24X1.4 16 14 41 32
    1ZE-12-27 G3/4"X14 M27X1.5 20X2.4 18.5 13 42.5 32
    1ZE-12-30 G3/4"X14 M30X1.5 24X1.4 18.5 14 43.5 32

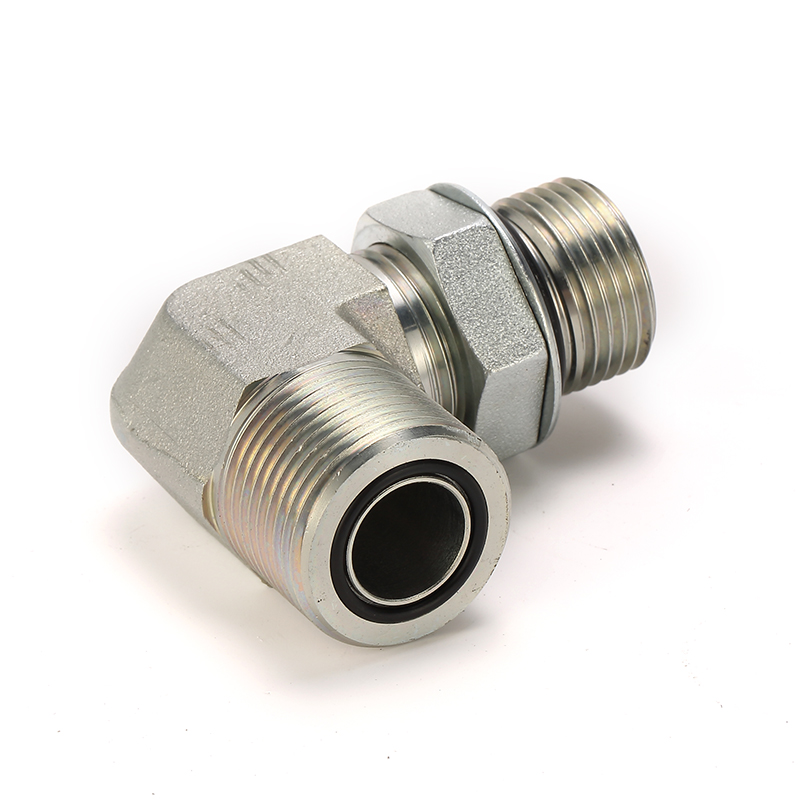

  • HYDRAULIC ORFS MALE O-RING ADAPTER
    Details

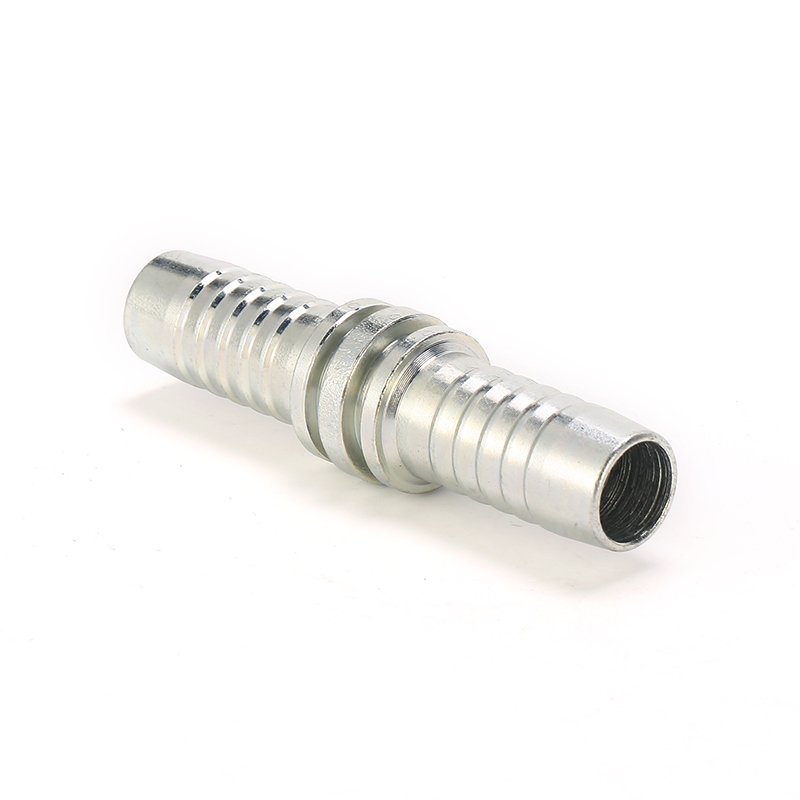

    HYDRAULIC HOSE DOUBLE CONNECTOR
    Details

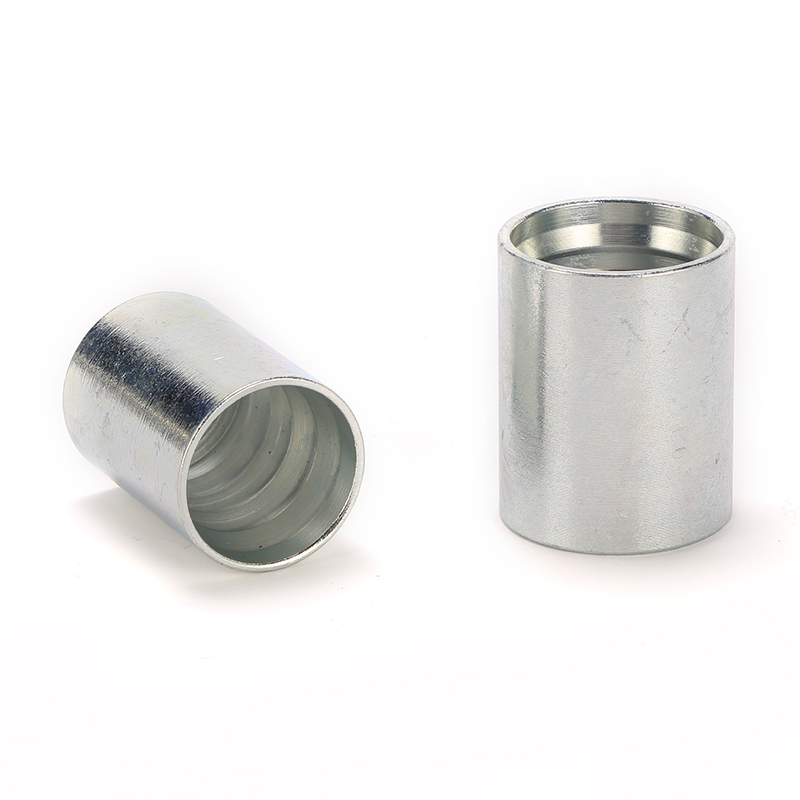

    1SN HOSE FERRULE HYDRAULIC
    Details

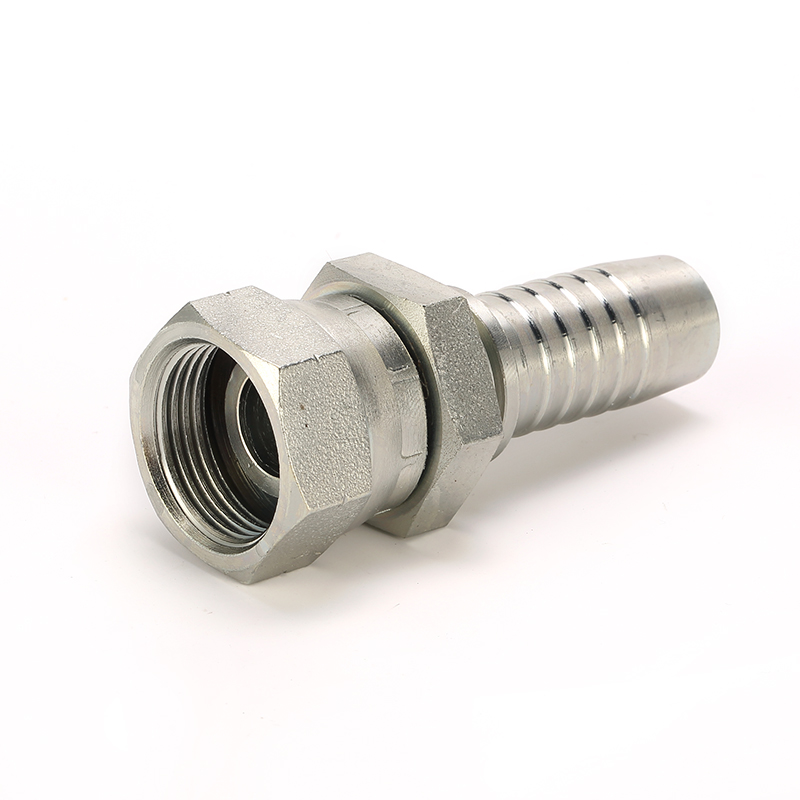

    BSP FEMLAE HYDRAULIC HOSE CONNECTOR
    Details
