PEHEL | BSP Female 60°Cone Seat Hydraulic Hose Fitting| Stainless Steel & Carbon Steel Material Available

PEHEL | BSP Female 60°Cone Seat Hydraulic Hose Fitting| Stainless Steel & Carbon Steel Material Available

PEHEL Hydraulic Model: P22611-PO

QTY:

22611 Good Quality BSP Female 60 Cone BSP Female Hydraulic Hose Fitting BSP connector

  • Material: Carbon steel

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: Straight

    Thread Type: BSP Female

  • 1. Ready Stock Fast Dispatch

    2. Low MOQ Support OEM ODM

    3. Strict Factory QC Inspection

    4. Custom Size & Surface Treatment Available

  • Specification
  • You May Also Like
  • PART NO THREAD E HOSE BORE DIMENSIONS
    DN DASH A C S2 Per hundred weight
    		 Weight per case
    22611-04-04PO G1/4''X19 6 4 19.5 5.5 19 2.9 300
    22611-06-06PO G3/8''X19 10 6 21.5 6.3 22 4.6 200
    22611-08-08PO G1/2''X14 12 8 24.5 7.5 27 7.9 100
    22611-12-12PO G3/4''X14 20 12 29 10.9 32 12.6 80-100

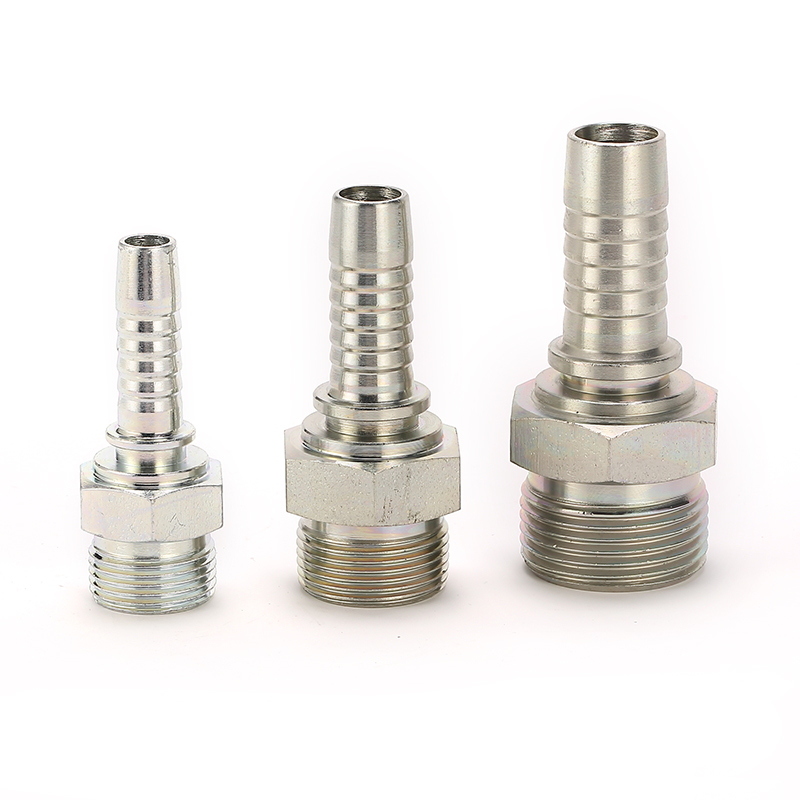

  • Metric Thread Male Hydraulic Hose Fitting
    Details
    Hydraulic Clamp For One Wire Fitting
    Details

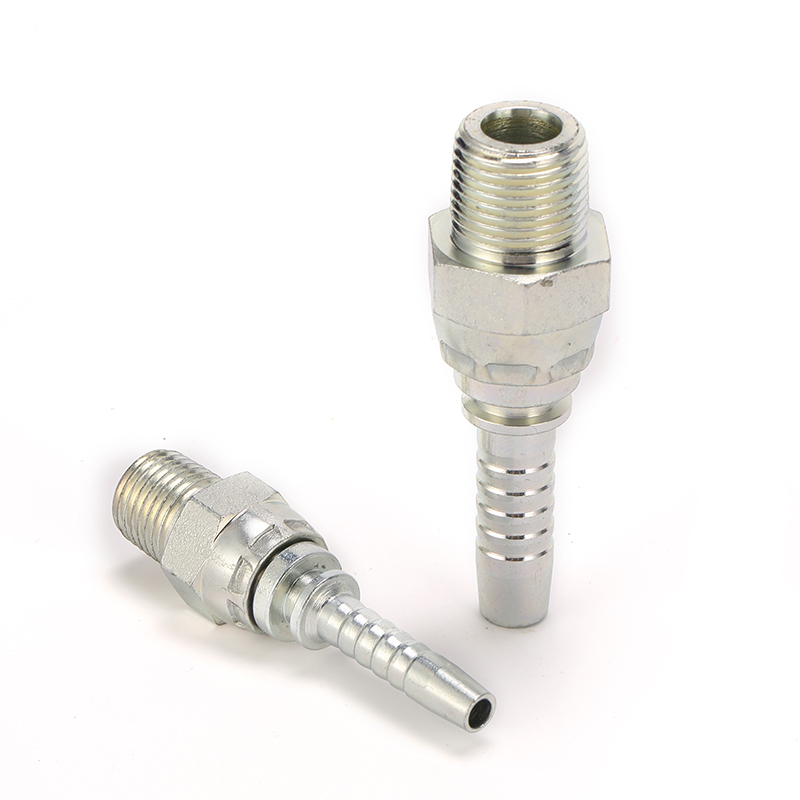

    Hydraulic NPT Male Thread Hose Fitting
