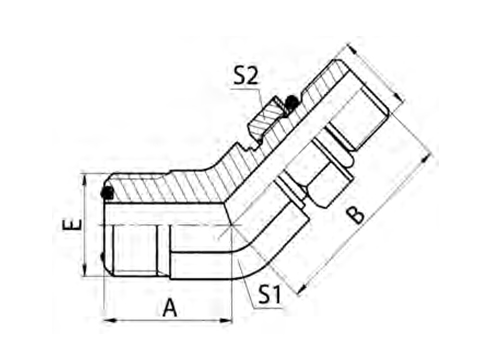

PART NO. THREAD O-RING DIMENSIONS E F E F A B S1 S2 1FH4-04-14OG 9/16"X18 M14X1.5 O011 O11.3X2.4 18.3 29.5 14 19 1FH4-06-14OG 11/16"X16 M14X1.5 O012 O11.3X2.4 20.5 33 19 19 1FH4-06-16OG 11/16"X16 M16X1.5 O012 O13.3X2.4 20.5 32.5 19 22 1FH4-08-16OG 13/16"X16 M16X1.5 O014 O13.3X2.4 24 33.5 22 22 1FH4-08-18OG 13/16"X16 M18X1.5 O014 O15.3X2.4 24 36 22 24 1FH4-10-22OG 1"X14 M22X1.5 O016 O19.3X2.4 28 38.5 27 27 1FH4-12-22OG 1.3/16"X12 M22X1.5 O018 O19.3X2.4 30.7 39.5 30 27 1FH4-12-27OG 1.3/16"X12 M27X2 O018 O23.5X3.0 30.7 40 30 32 1FH4-16-33OG 1.7/16"X12 M33X2 O021 O29.5X3.0 33 48.5 36 41
PEHEL | 45° ELBOW ORFS MALE O-RING | Stainless Steel & Carbon Steel
PEHEL Hydraulic Model: P1FH4-OG
QTY:
1.tested before delivery, extremely low defective rate
2.Custom non-standard connectors available, material test reports provided
3.Moisture-proof export packaging, no damage during long-distance transportation
