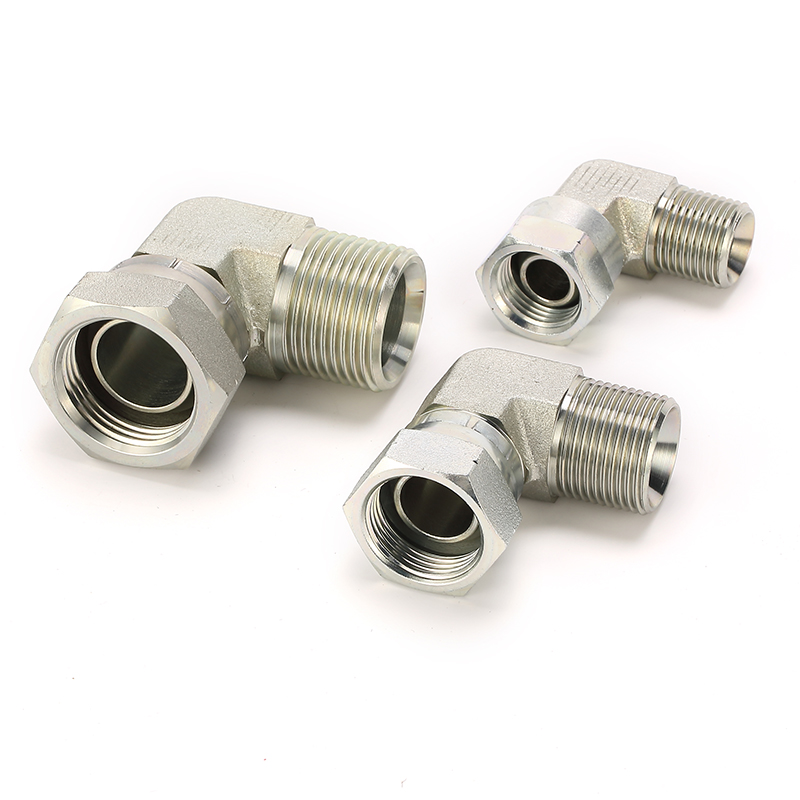

PEHEL|90 BSP MALE O-RING/BSP FEMALE HYDRAULIC CONNECTOR|SHORT LEAD TIME

PEHEL|90 BSP MALE O-RING/BSP FEMALE HYDRAULIC CONNECTOR|SHORT LEAD TIME

PEHEL Hydraulic Model: 5GB9-OG

QTY:

  • Material: Carbon steel, Stainless Steel, Aluminium, Brass

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: STRAIGHT

    Thread Type: HYDRAULIC HOSE ADAPTER

  • 1. Tested before delivery, extremely low defective rate

    2. Custom non-standard connectors available, material test reports provided

    3. Moisture-proof export packaging, no damage during long-distance transportation

    4. In Stock, Fast Delivery, Custom Service Supported

  • Specification
  • You May Also Like
  • PART NO. THREAD O-RING DIMENSIONS
    E F E A B S1 S2
    5GB9-08OG G1/2"X14 G1/2"X14 17.12X2.62 46.5 31 27 27
    5GB9-08-12OG G1/2"X14 G3/4"X14 17.12X2.62 50 37 33 27
    5GB9-12OG G3/4"X14 G3/4"X14 23.47X2.62 53 37 33 32
    5GB9-12-08OG G3/4"X14 G1"X11 23.47X2.62 51 31 27 32

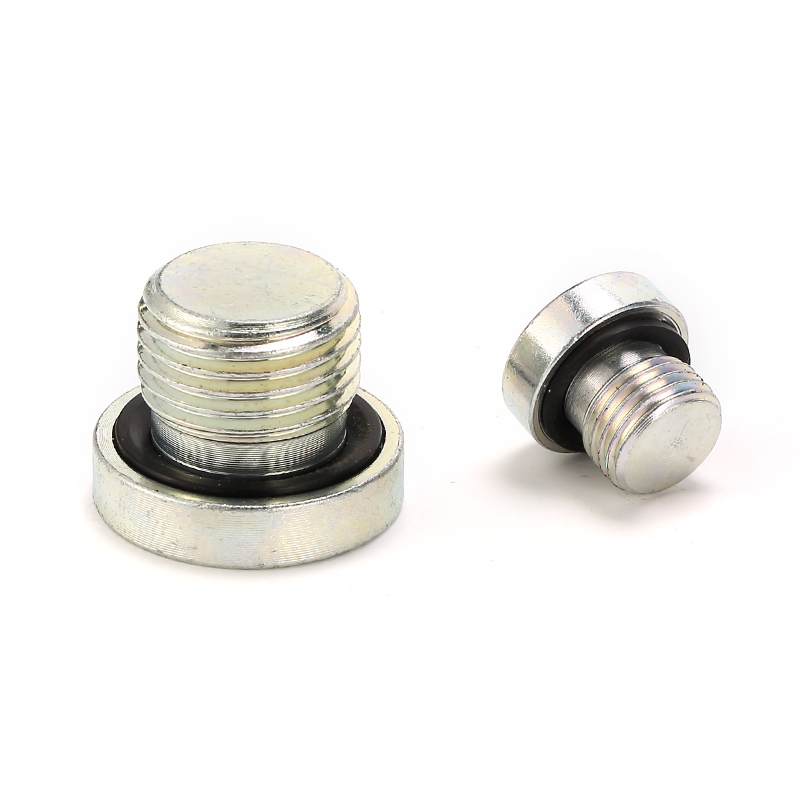

  • METRIC MALE HOLLOW HEX PLUG
    Details

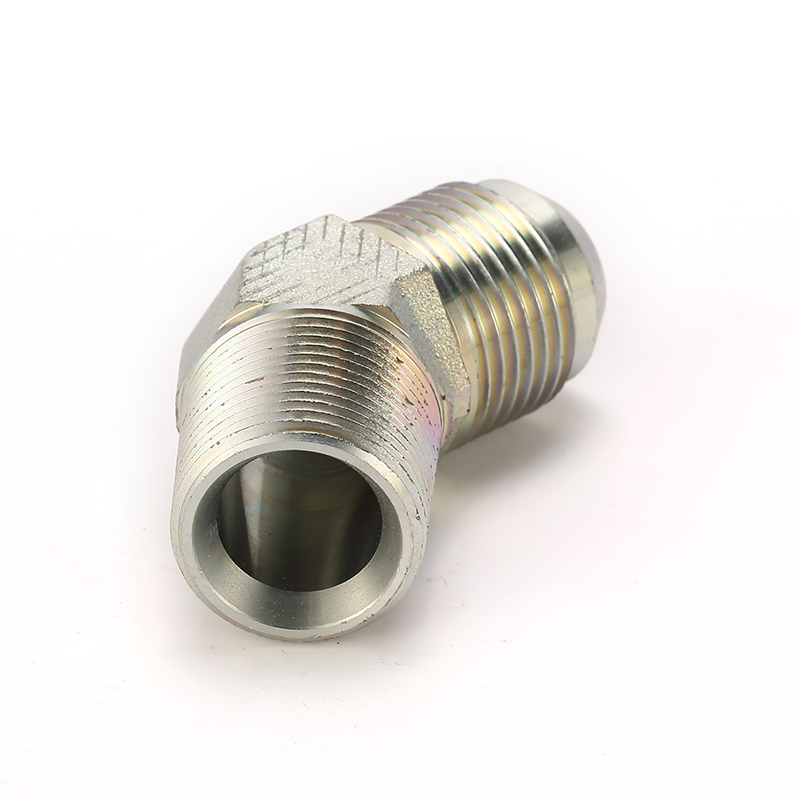

    45 BLBOW JIC NPT HOSE CONNECTOR
    Details

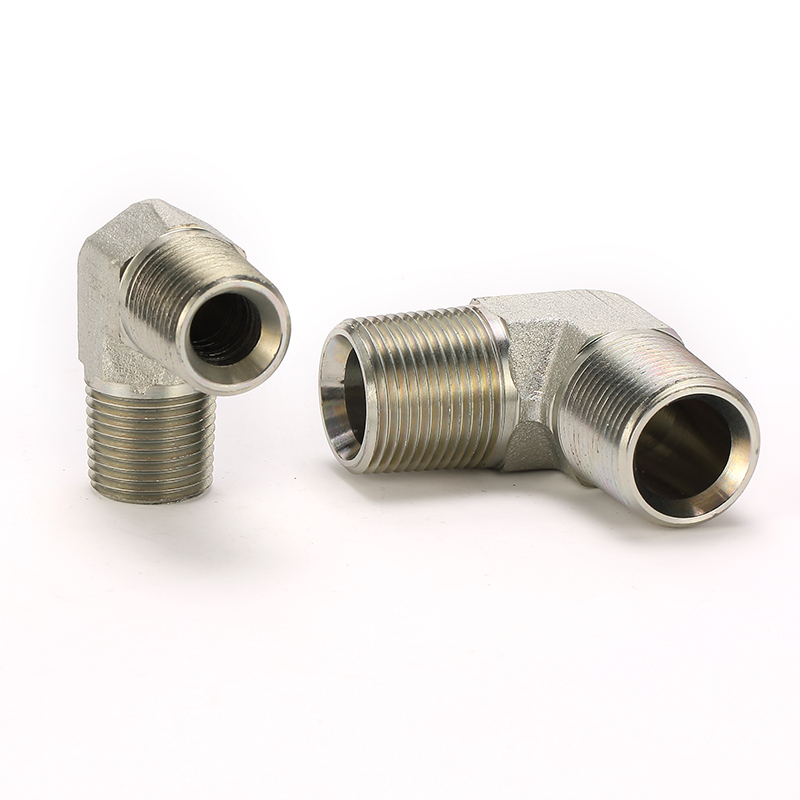

    NPT MALE 90 ELBOW HOSE ADAPTER
