Pehel | 90 Degree Butt Weld Tube BSP Female 60 Hydraulic Fitting

Pehel | 90 Degree Butt Weld Tube BSP Female 60 Hydraulic Fitting

PEHEL Hydraulic Model: 2WB9

QTY:

  • Material: Carbon steel, stainless steel

    Brand: Pehel, OEM

    Color: Silver color zinc plating

    Connector Type: Butt weld, 90 degree elbow

    Thread Type: BSP Female, 60° sealing angle

  • 这是一个文本段落,你可以使用它来向模板中加入文本内容

  • Specification
  • You May Also Like
  • PART NO. THREAD DIMENSIONS
    F A B D S1 S2
    2WB9-08-04 G1/4"X19 21 5.5 8 11 19
    2WB9-12-06 G3/8"X19 25.5 6.3 12 14 22
    2WB9-16-08 G1/2"X14 29.5 7.5 16 19 27
    2WB9-22-12 G3/4"X14 35.5 10.9 22 24 32
    2WB9-28-16 G1"X11 42 11.7 28 30 41
    2WB9-34-20 G1.1/4"X11 49.5 11 34 41 50
    2WB9-42-32 G2"X11 66 16 42 63 70

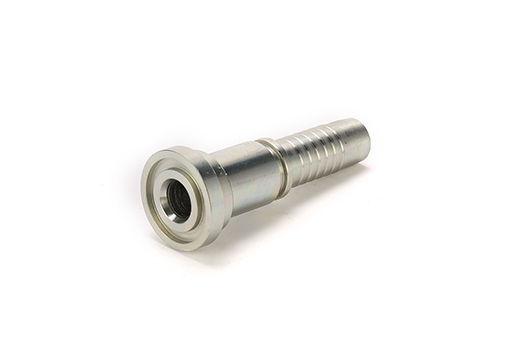

  • SAE Female 3000psi ISO Flange Fittings
    Details

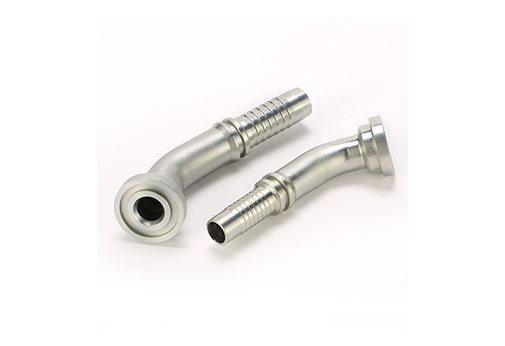

    87342 3000 PSI flange hose fittings 45 degree elbow fitting adapter ferrule flange hydraulic flange

    Details

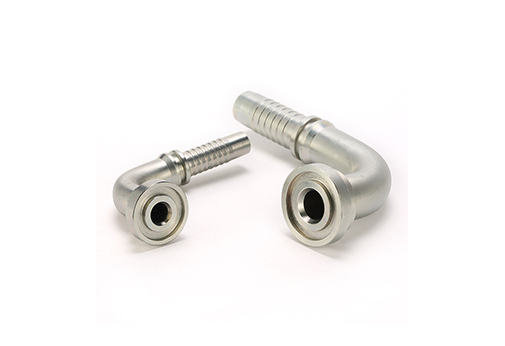

    Pehel 90° SAE Flange 3000PSI Hydraulic Hose Fittings 87392
    Details

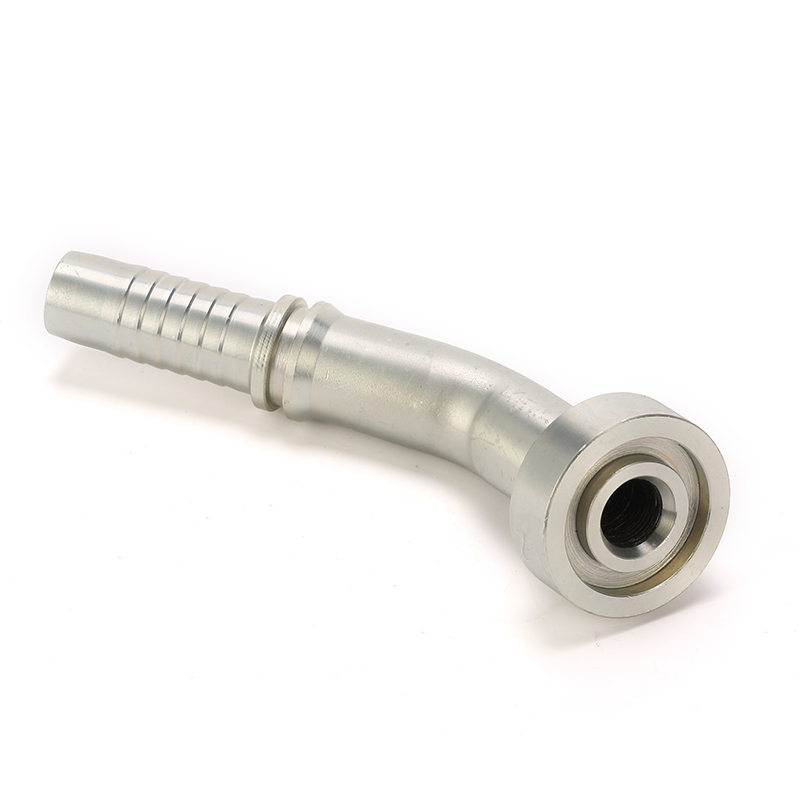

    P87942 / carbon or stainless 45° SAE Flange 9000PSI
