Pehel | 45° SAE Flange 9000PSI High Pressure Hydraulic Flange Core

Pehel | 45° SAE Flange 9000PSI High Pressure Hydraulic Flange Core

PEHEL Hydraulic Model: P87942

QTY:

  • Material: Carbon steel, stainless steel

    Brand: Pehel, OEM

    Color: Silver color zinc plating， Chrome plating, nickle plating

    Connector Type: 45° angled SAE hydraulic flange core

    Standard & Pressure: SAE Flange, 9000PSI pressure rating

  • About the item:

    1. 1.This 45° SAE Flange 9000PSI hydraulic flange core is specially designed for angled high-pressure hydraulic pipeline connections
    2. 2.Available in carbon steel and stainless steel to satisfy different heavy-duty hydraulic working scenarios
    3. 3.Precision machined sealing surface ensures stable, leak-free performance under 9000PSI working pressure
    4. 4.45° angled flange insert saves installation space for compact hydraulic equipment layout
    5. 5.Silver zinc plating for carbon steel material enhances anti-corrosion property and extends service life
    6. 6.Pehel brand & OEM custom service supported, standard SAE hydraulic flange core for global supply

  • Specification
  • You May Also Like
  • PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
    DN DASH A C D L H
    87942-12-12KT 3/4" 20 12 85.3 41.3 31 14.3 35.5
    87942-16-16KT 1" 25 16 94 47.6 37 14.3 37.5
    87942-20-20KT 1-1/4" 32 20 105 54 42 14.3 42
    87942-24-20KT 1-1/2" 32 20 106 63.5 49 14.3 43
  • 1B9 / 90 ELBOW MALE BSP ADAPTER
    Details

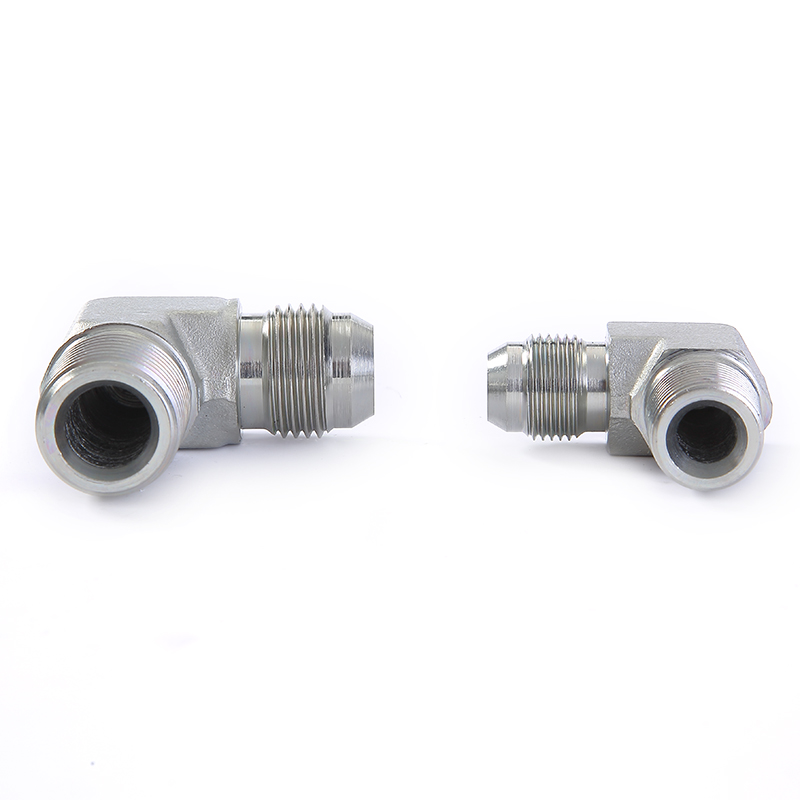

    90 elbow male jis-male bspt hydraulic adapter
    Details

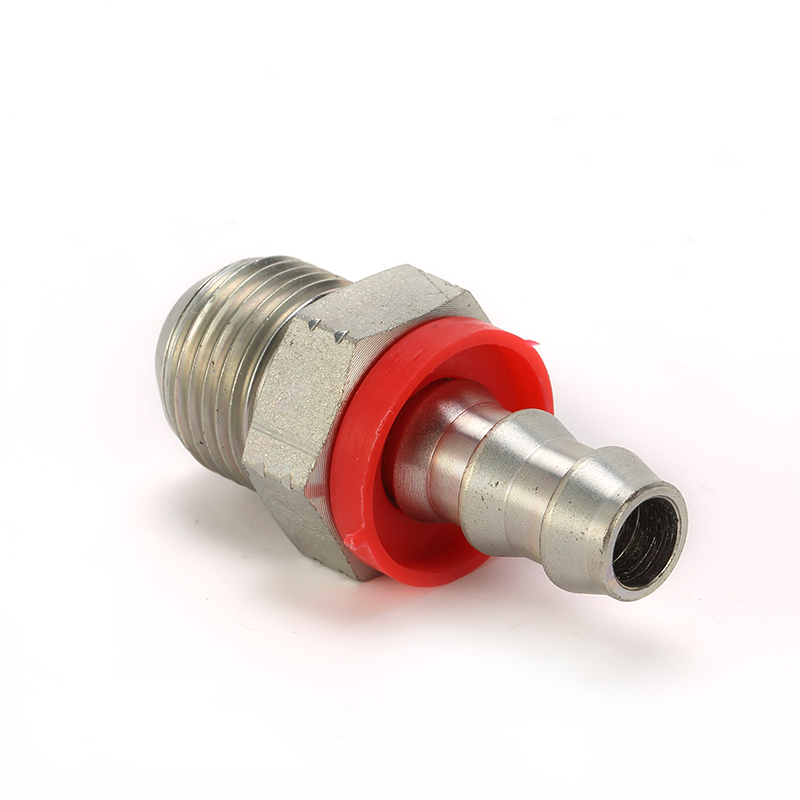

    Pehel/P16711PO/JIC Male Push Lock Fittings
