Pehel | 45 Degree BSPT Male × BSP Female Threaded Hydraulic Pipe Joint

Pehel | 45 Degree BSPT Male × BSP Female Threaded Hydraulic Pipe Joint

PEHEL Hydraulic Model: P5TB4

QTY:

  • Material: Carbon steel, stainless steel

    Brand: Pehel, OEM

    Color: Silver color zinc plating ,nickle plating, chrome plating

    Connector Type: 45° angled threaded hydraulic joint adapter

    Thread Type: 45° BSPT Male / BSP Female

  • About the item:

    1. 1.This 45° BSPT male to BSP female angled hydraulic joint adapter features precision-cut BSP threads for leak-free hydraulic pipe connections
    2. 2.Available in carbon steel and stainless steel hydraulic fitting, to suit diverse industrial hydraulic pipeline working environments
    3. 3.Silver zinc plating surface treatment boosts corrosion resistance, extending service life of this threaded hydraulic pipe connector
    4. 4.Compact 45 degree angled hydraulic adapter saves installation space for tight hydraulic machinery layouts
    5. 5.Pehel brand & OEM service supported, custom sizes of BSP threaded hydraulic joints are available

  • Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F A B S1
    P5TB4-02 R1/8"X28 G1/8"X28 18 20 16
    P5TB4-04 R1/4"X19 G1/4"X19 22 20 19
    P5TB4-06 R3/8"X19 G3/8"X19 25.5 23.5 24
    P5TB4-08 R1/2"X14 G/2"X14 31.5 27 30
    P5TB4-12 R3/4"X14 G3/4"X14 32.5 30 33
    P5TB4-16 R1"X11 G1"X11 42 37 41
    P5TB4-20 R1.1/4"X11 G1.1/4"X11 45.5 40 48

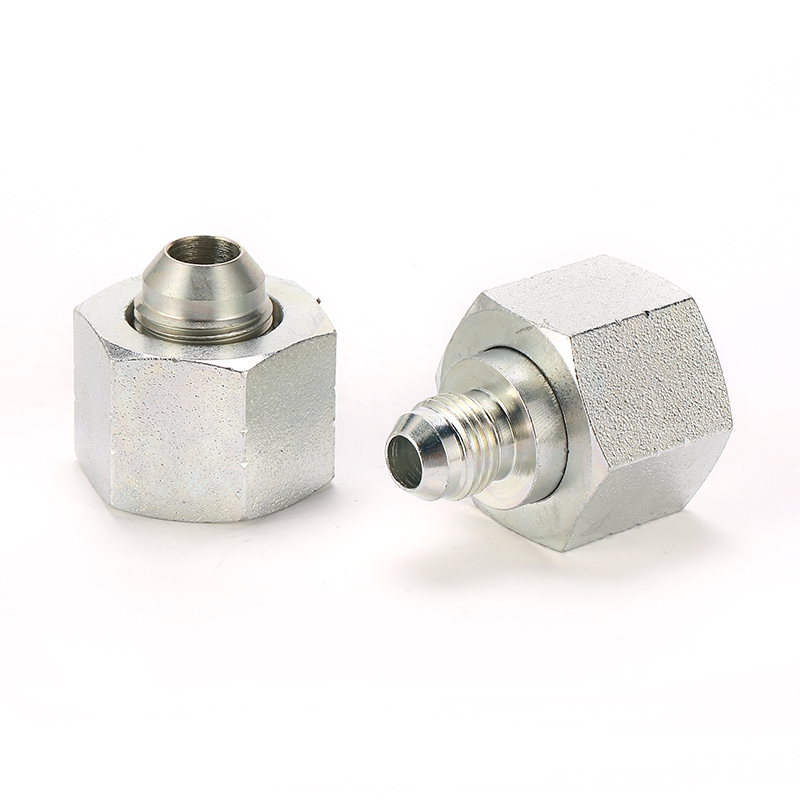

  • 2B / MALE BSP 60 CONE FEMALE BSP 60 CONE ADAPTER
    Details

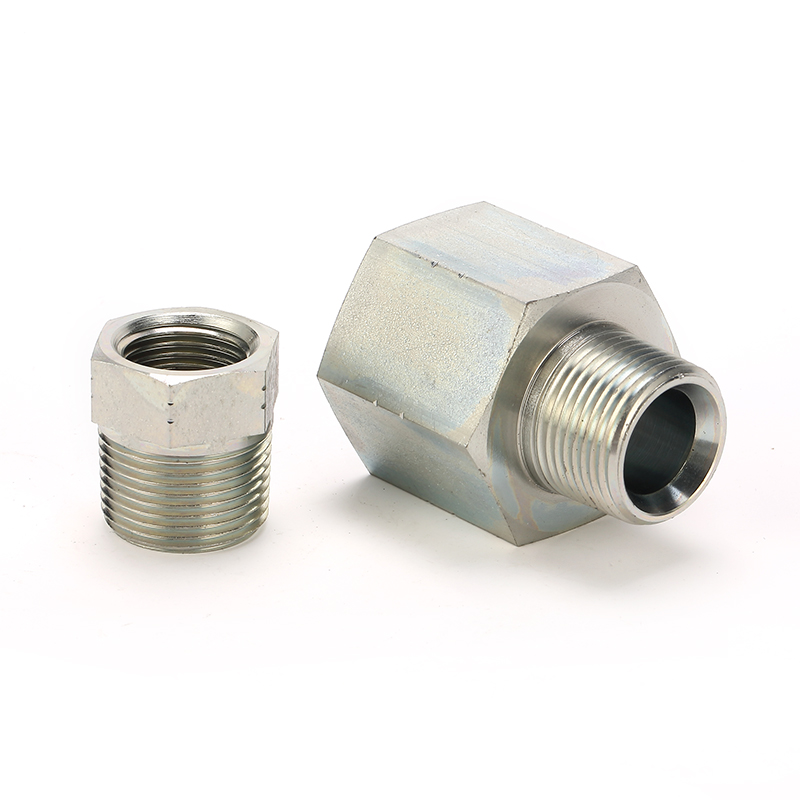

    5N / MALE AND FEMALE NPT ADAPTER

    Details

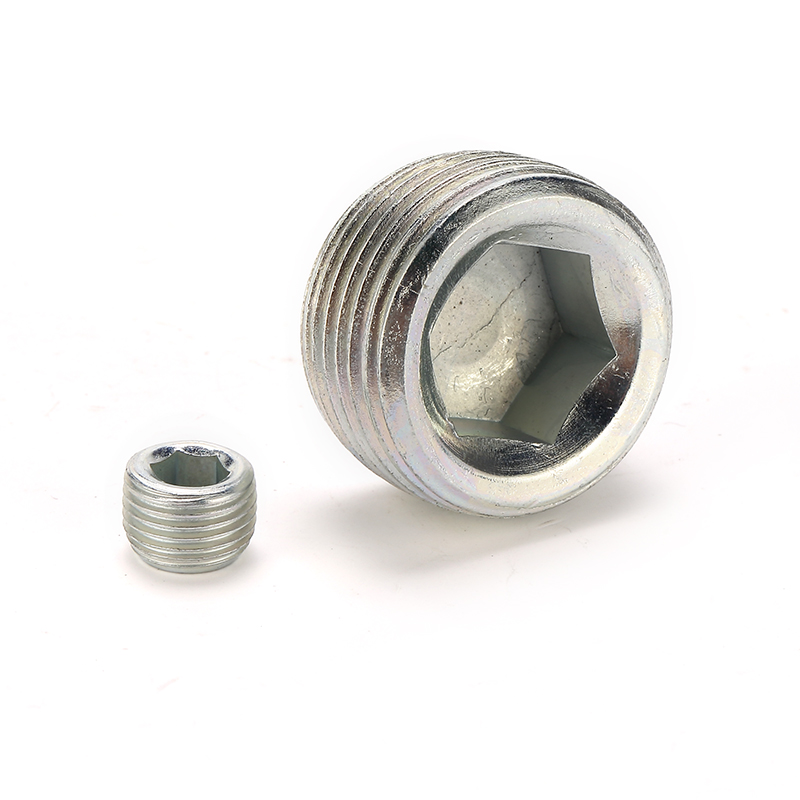

    4NN / NPT HOLLOW PLUG
