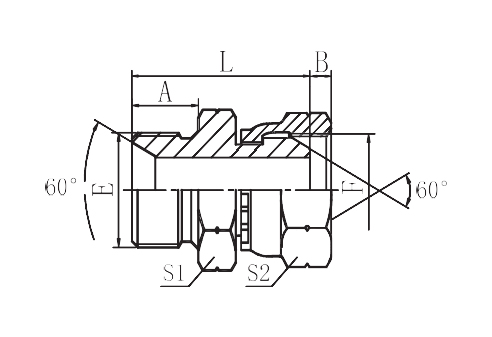

THREAD DIMENSIONS PART NO. E F A B L S1 S2 2B-02 G1/8"X28 G1/8"X28 10 6 25 14 14 2B-02-04 G1/8"X28 G1/4"X19 10 5 27 14 19 2B-04 G1/4"X19 G1/4"X19 12 5 29 19 19 2B-04-06 G1/4"X19 G3/8"X19 12 6.5 30.5 19 22 2B-04-08 G1/4"X19 G1/2"X14 12 7.8 32 19 27 2B-06 G3/8"X19 G3/8"X19 13.5 6.5 34 22 22 2B-06-08 G3/8"X19 G1/2"X14 13.5 7.8 35.5 22 27 2B-06-10 G3/8"X19 G5/8"X14 13.5 9 36 22 30 2B-08 G1/2"X14 G1/2"X14 16 7.8 40 27 27 2B-08-06 G1/2"X14 G3/8"X19 16 6.5 May-38 27 22 2B-08-12 G1/2"X14 G3/4"X14 16 10.5 41 27 32 2B-10 G5/8"X14 G5/8"X14 17.5 9 42 30 30 2B-10-08 G5/8"X14 G1/2"X14 17.5 7.8 41.5 30 27 2B-10-12 G5/8"X14 G3/4"X14 17.5 10.5 42.5 30 32 2B-12 G3/4"X14 G3/4"X14 18.5 10.5 44.5 32 32 2B-12-10 G3/4"X14 G5/8"X14 18.5 9 44 32 30 2B-12-16 G3/4"X14 G1"X11 18.5 11 46 32 41 2B-16 G1"X11 G1"X11 20.5 11 50 41 41 2B-16-12 G1"X11 G3/4"X14 20.5 10.5 49 41 32 2B-16-20 G1"X11 G1.1/4"X11 20.5 11.5 52 41 50 2B-20 G1.1/4"X11 G1.1/4"X11 20.5 11.5 54 50 50 2B-20-16 G1.1/4"X11 G1"X11 20.5 11 52 50 41 2B-20-24 G1.1/4"X11 G1.1/2"X11 20.5 12.5 55.5 50 55 2B-24 G1.1/2"X11 G1.1/2"X11 23 12.5 57.5 55 55 2B-32 G2"X11 G2"X11 25.5 17 64.6 70 70
PEHEL/BSP MALE DOUBLE USE ADATER
PEHEL Hydraulic Model: P2B
QTY:
- BSP MALE DOUBLE USE FOR60\"SEATOR BONDED SEAL/BSP FEMALE 60\"CONE ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: PIPE ADAPTER
Thread Type1: MALE BSPP 60 CONE
Thread Type1: FEMALE BSPP 60 CONE
ABOUT THIS ITEM:

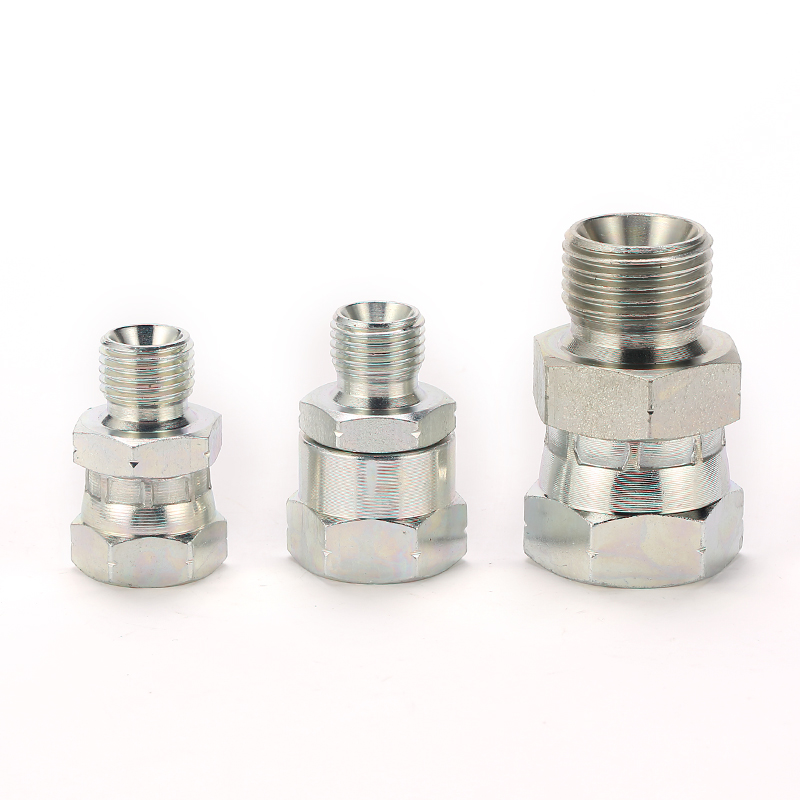

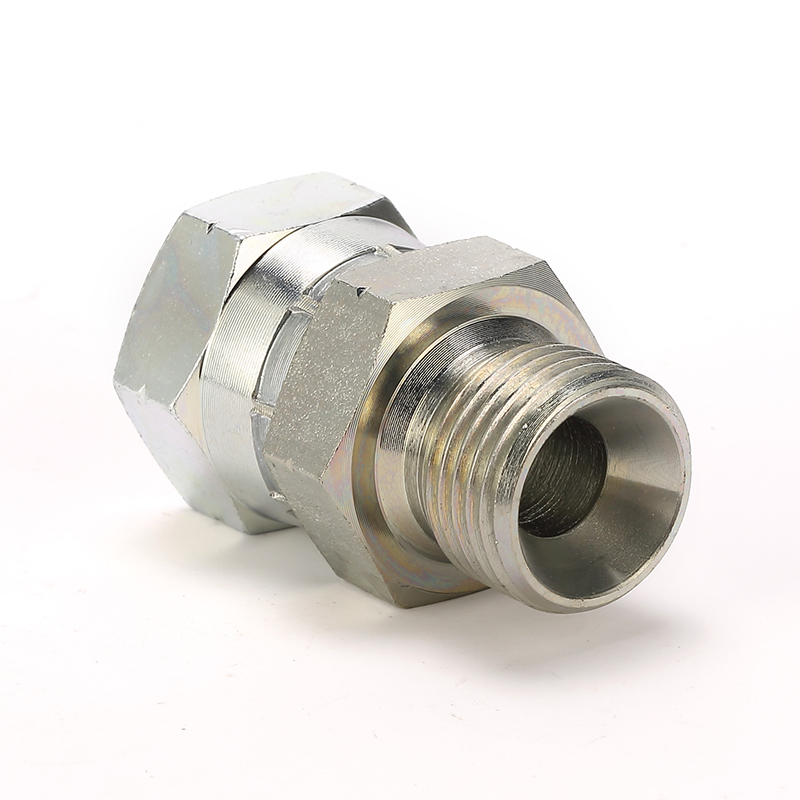

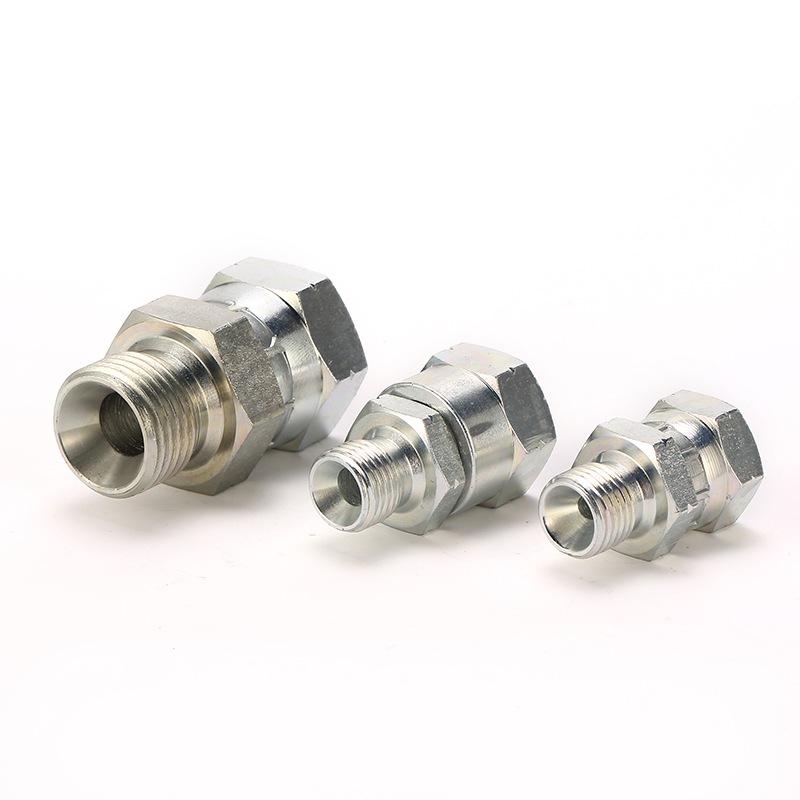

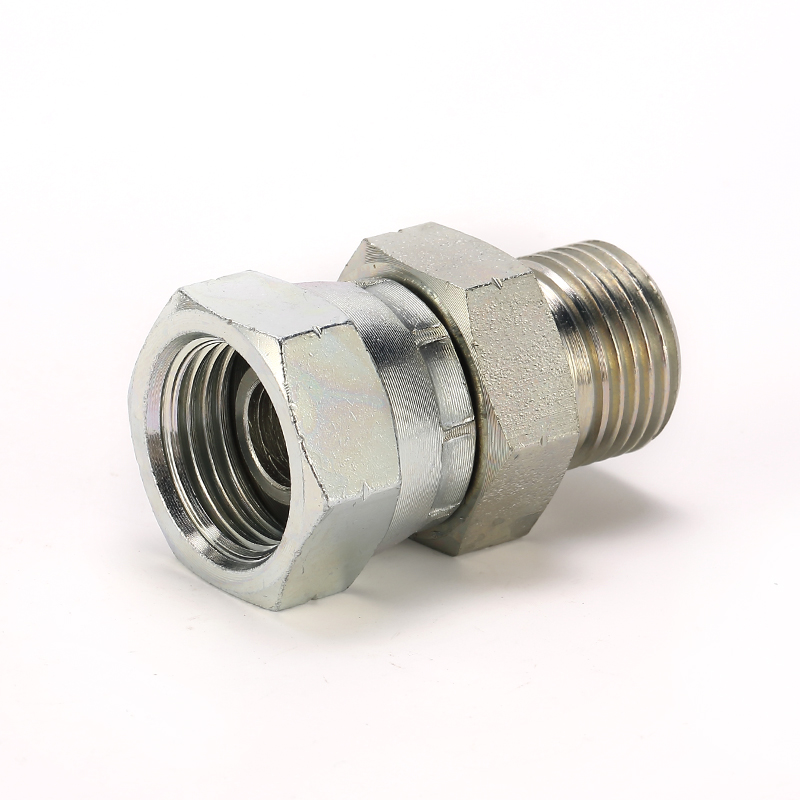

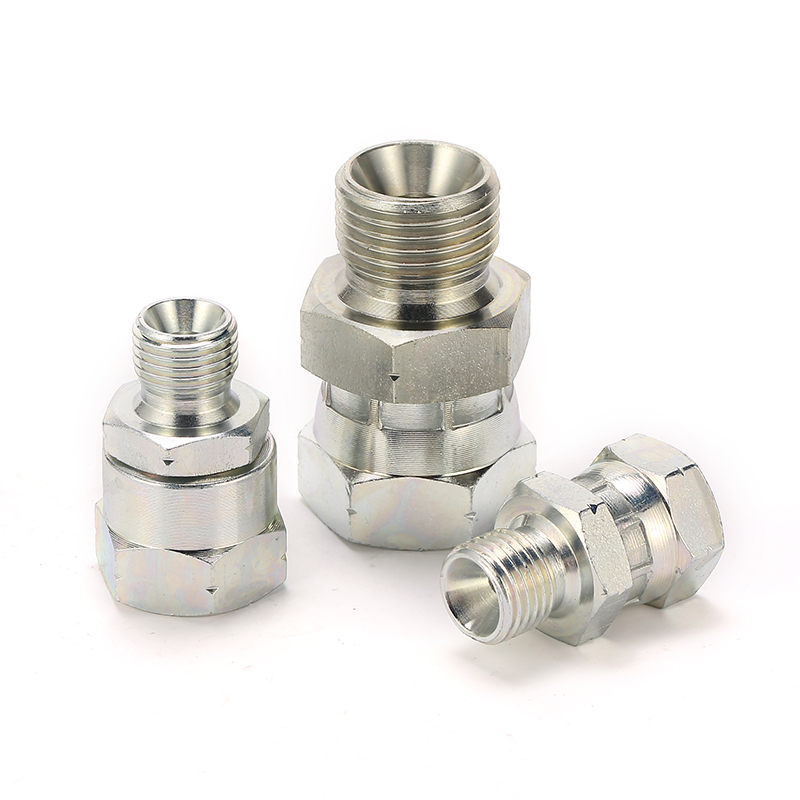

1.PEHEL P2B straight adapter features dual-purpose BSP male (60° cone seat / bonded seal) + BSP swivel female 60° cone, unifies dual sealing solutions for standard BSP hydraulic pipelines.
2.Full size range from 2B-02 to 2B-32 covers all mainstream G parallel thread specs, standardized A/B/L/S1/S2 dimensions for cross-brand quick interchange.
3.CNC precision machined carbon steel with zinc electroplated surface offers strong anti-corrosion and anti-vibration performance, zero-leak sealing under continuous high-pressure working conditions.
4.Dual hex wrench flats S1 & S2 design allows easy torque tightening during assembly, effectively prevents thread loosening and hydraulic oil leakage for industrial, marine and construction machinery.
5.Direct factory supply P2B BSP to BSP transition fitting with strict thread & cone angle inspection, supports bulk wholesale, OEM custom drawing and fast delivery for global hydraulic distributors.
