PART NO.
FLANGE SIZE
DIMENSIONS
BOLT
MPa
A
B
C
D
E
FL-08
1/2"
53.8
46.1
38.1
9
18.2
M8X25
34.5
FL-12
3/4"
65
52.4
47.6
11
23.8
M10X30
FL-16
1"
69.9
58.7
52.4
11
27.8
M10X30
FL-20
1.1/4"
79.2
73
58.7
11
31.8
M10X30
27.6
FL-24
1.1/2"
93.7
82.6
69.9
13.5
36.6
M12X35
20.7
FL-32
2"
101.6
96.8
77.8
13.5
44.4
M12X35
FL-40
2.1/2"
114
109
88.9
13.5
44.4
M12X40
10
NOTE:1.Bolt should be ordered anther.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2008, sell to North America(20.00%),Domestic Market(15.00%),Western Europe(10.00%),Oceania(10.00%),South Asia(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Mid East(5.00%),Africa(2.00%),Eastern Asia(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hydraulic Hose Fittings,Adapters,Manifold Block,Crimping Machine,Cutting Machine
4. why should you buy from us not from other suppliers?
PEHEL is an ISO9001 and UKAS certified company and member of China Hydraulic and Pneumatic Seal Element Industrial Association,quipped with advanced CNC machines and professional technicians, can design, develop and produce hydraulic controlling component.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese

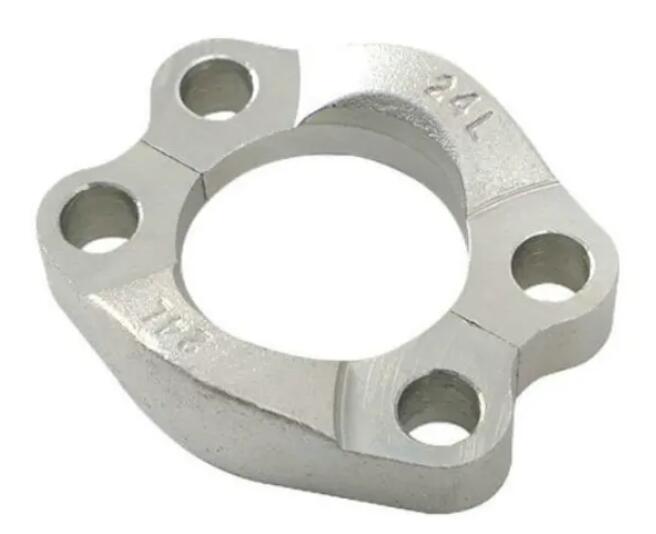

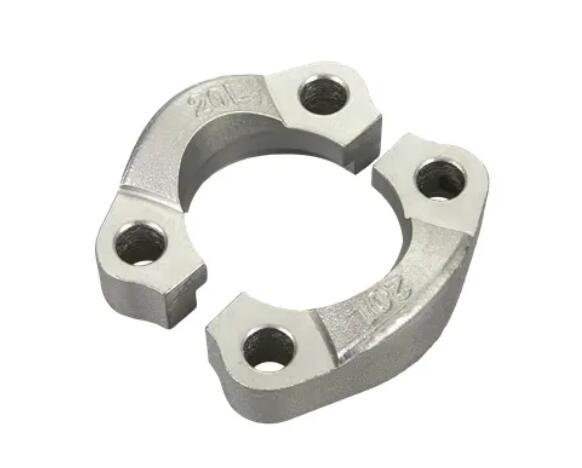

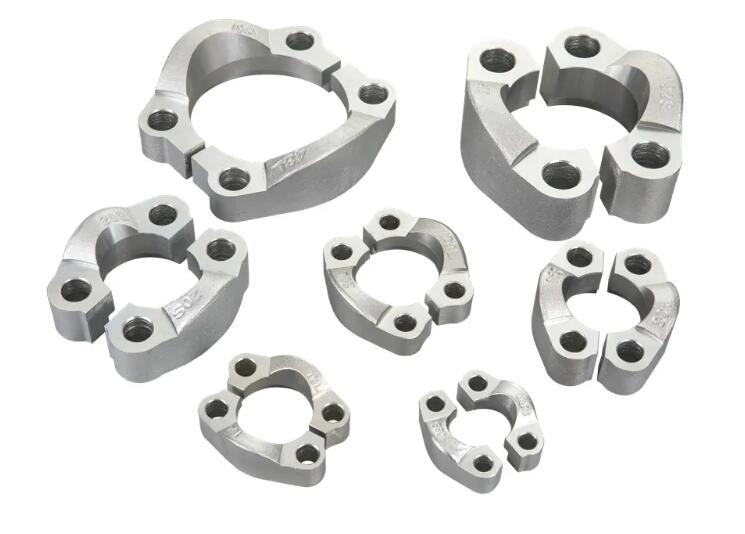

SAE Split Flange Clamp 3000PSI ISO 6162, SAE J518 Swaged Hose Fitting L.T.
PEHEL Hydraulic Model: PFL
QTY:
SAE Split Flange Clamp 3000PSI ISO 6162, SAE J518 Swaged Hose Fitting L.T.
- SAE Flange L.T Description: the marerial is 45 carbon steel. PFL is supplied as our 3000PSI hydraulic flanges.
SAE Split Flange Clamp Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color
Connector Type:
connect standard:
- About the item:
- 1.This SAE J518 L.T. Swaged Hose Fitting perfectly matches 3000PSI SAE Split Flange Clamp complying with ISO 6162 industry standard.
- 2.Made of carbon steel or stainless steel with silver zinc plating, this ISO 6162 hydraulic flange fitting owns outstanding anti-corrosion performance.
- 3.Light Type (L.T.) lightweight design of swaged hydraulic joint reduces pipeline load, ideal for compact engineering hydraulic equipment installation.
- 4.Forged & precision machined SAE split flange clamp ensures zero leakage under 3000PSI working pressure for long service life.
