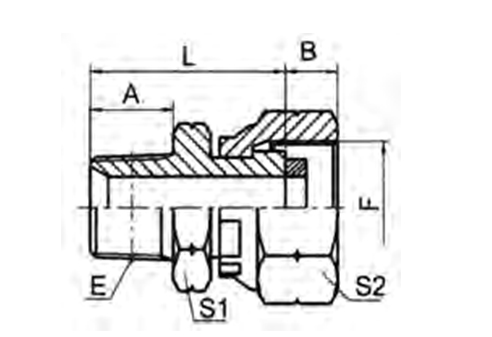

THREAD COPPER WASHER DIMENSIONS PART NO. E F F A B L S1 S2 2TB-02-04G/SP R1/8"X28 G1/4"X19 DP-B04G 10 14.5 24.5 12 19 2TB-04G/SP R1/4"X19 G1/4"X19 DP-B04G 14.5 14.5 29 17 19 2TB-04-08G/SP R1/4"X19 G1/2"X14 DP-B08G 14.5 20 31.5 19 27 2TB-06-04G/SP R3/8"X19 G1/4"X19 DP-B04G 15 14.5 29.5 19 19 2TB-08-04G/SP R1/2"X14 G1/4"X19 DP-B04G 20 14.5 36.5 22 19 2TB-08G/SP R1/2"X14 G1/2"X14 DP-B08G 20 20 39 22 27
PEHEL丨Hydraulic Pressure Gauge Connector – BSPT Male to BSP Female
PEHEL Hydraulic Model: P2TB-G
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: Straight
Thread Type: BSP, BSPT
Surface Treatment: CR3+ White Zinc Plated
About the item:
· 1.Forged Construction: Ensures durability and strength for heavy-duty applications.
· 2.High Pressure Rating: Designed to withstand high-pressure hydraulic systems.
· 3. Zinc Plated Finish: Provides rust resistance and enhances longevity.
· 4. Strict tolerance crimp stem enables stable hose crimping, avoids hose pull-off & oil seepage.
· 5. Customizable Options: Available in various sizes and configurations for tailored solutions.
