One Wire Braid-Textile Cover Hose-SAE 100R5

Model: SAE 100R5

QTY:

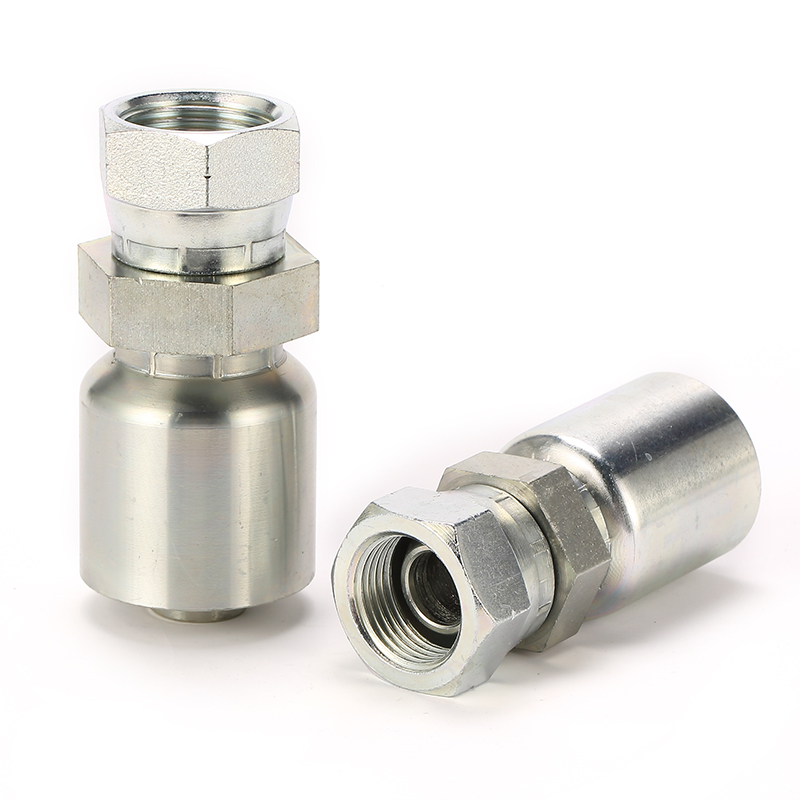

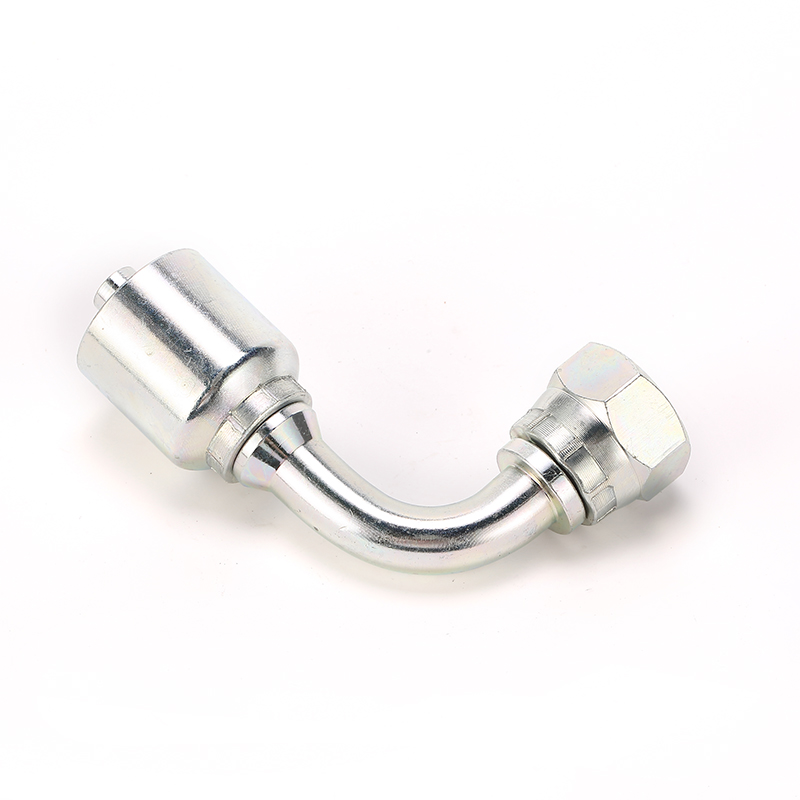

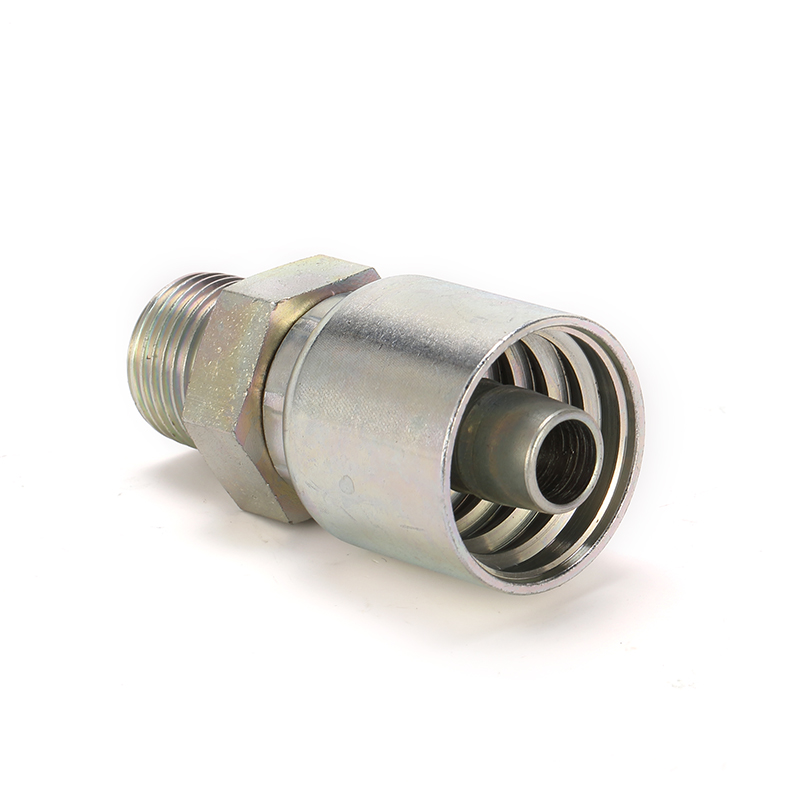

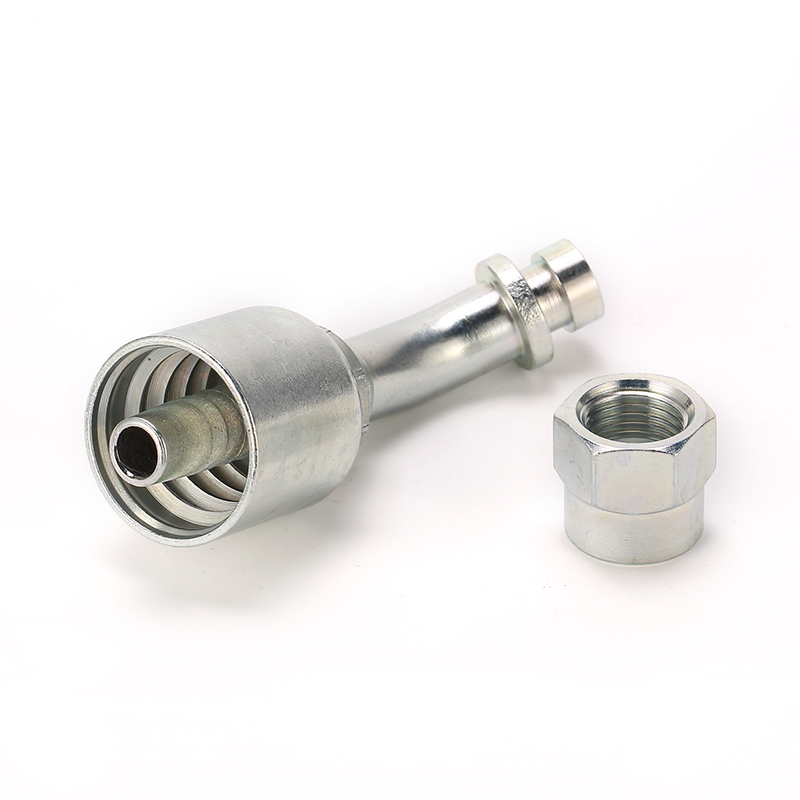

  • You May Also Like

  • TUBE: HYDRAULIC OIL RESISTANT,SPECIAL SYNTHETIC RUBBER.
    REINFORCEMENT : SYNTHETIC TEXTILE AND HIGH TENSILE 1 STEEL WIRE BRAID
    COVER : OIL AND WEATHER RESISTANT SYNTHETIC RUBBER INMPREGNATED COTTON BRAID
    TEMPERRATURE RANGE: -40oCto +120oC
    Inside Outside   Working pressure Burst pressure Bend radius Weight
    inch mm mm bar psi bar psi mm kg/m
    3/16 4.8 13.2 207 3002 828 12006 76 0.245
    1/4 6.4 14.8 207 3002 828 12006 86 0.278
    5/16 7.9 17.2 155 2248 620 8990 102 0.345
    13/32 10.3 19.5 138 2001 552 8004 117 0.414
    1/2 12.7 23.4 121 1755 484 7018 140 0.55
    5/8 15.9 27.4 103 1494 412 5974 165 0.689
    7/8 22.2 31.4 55 798 220 3190 187 0.757
    1.1/8 28.6 38.1 43 624 172 2494 229 0.971
    1.3/8 34.9 44.5 34 493 136 1972 267 1.095
    1.13/16 46 56.4 24 348 96 1392 337 1.322
