PARTNO. THREAD O-RING DIMENSIONS E F G E G A B C S1 S2 BF-04 9/16"X18 9/16"X18 9/16"X18 7.65X1.78 7.65X1.78 23 8.5 23 14 19 BF-06 11/16"X16 11/16"X16 11/16"X16 9.25X1.78 9.25X1.78 27.5 10 27.5 19 22 BF-08 13/16"X16 13/16"X16 13/16"X16 12.42X1.78 12.42X1.78 31 11 31 22 27 BF-10 1"X14 1"X14 1"X14 15.6X1.78 15.6X1.78 36.5 13.5 36.5 27 30 BF-12 1.3/16"X12 1.3/16"X12 1.3/16"X12 18.77X1.78 18.77X1.78 42 15 42 33 36 BF-16 1.7/16"X12 1.7/16"X12 1.7/16"X12 23.52X1.78 23.52X1.78 48 15 48 41 41

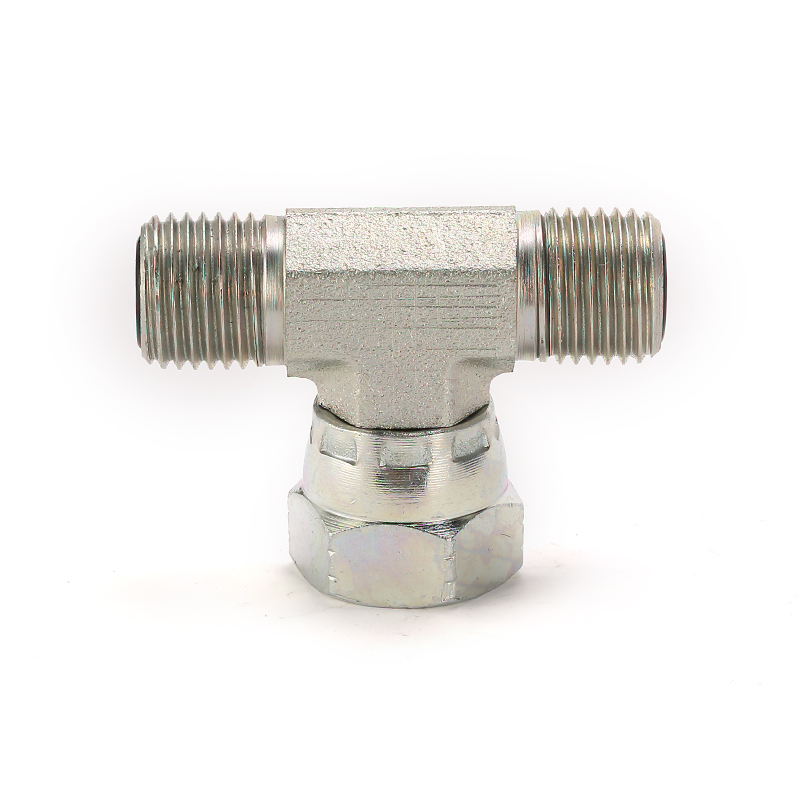

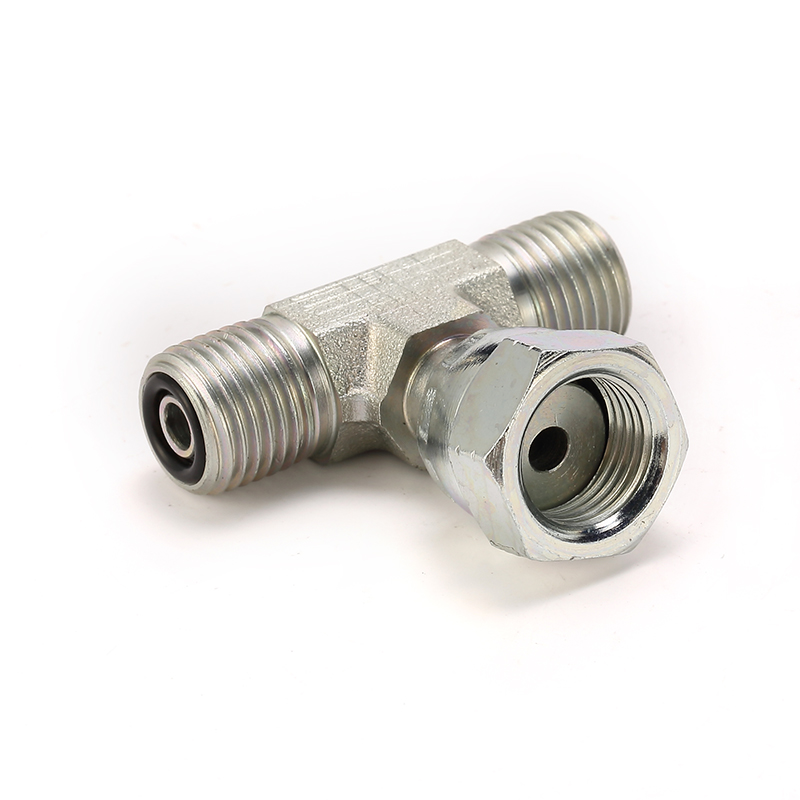

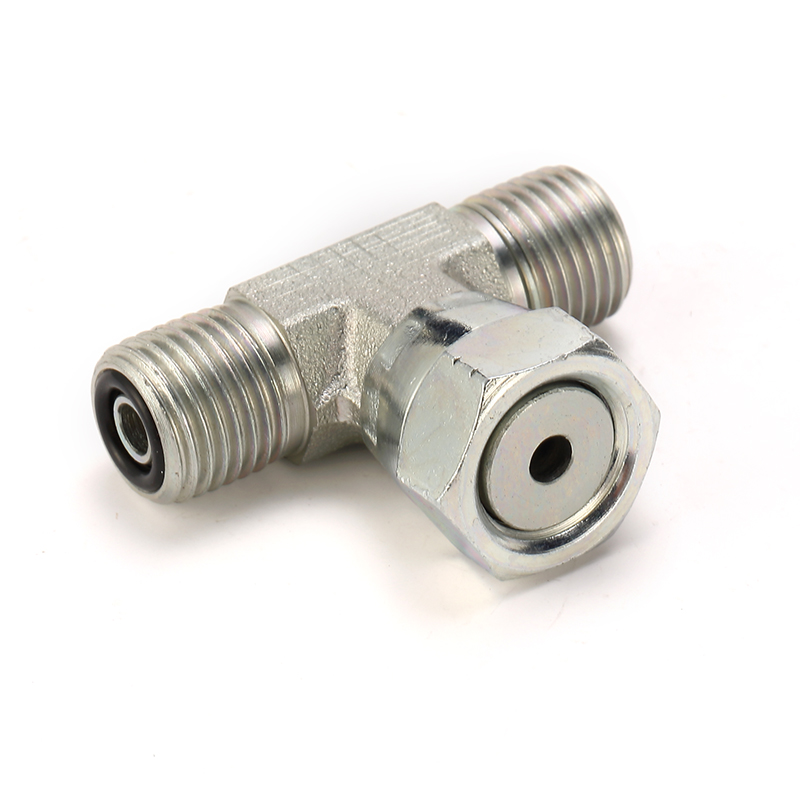

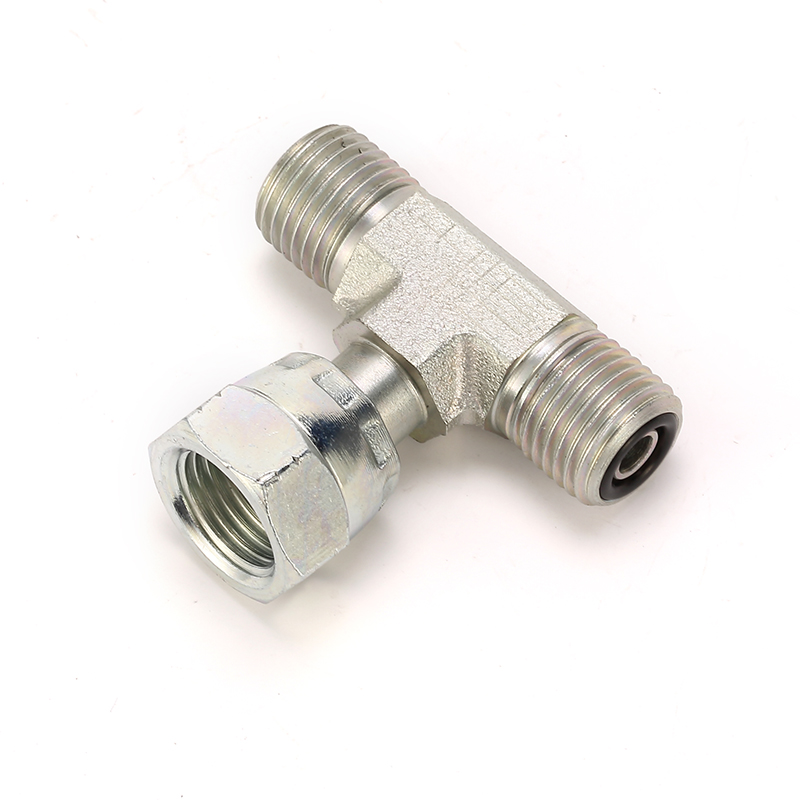

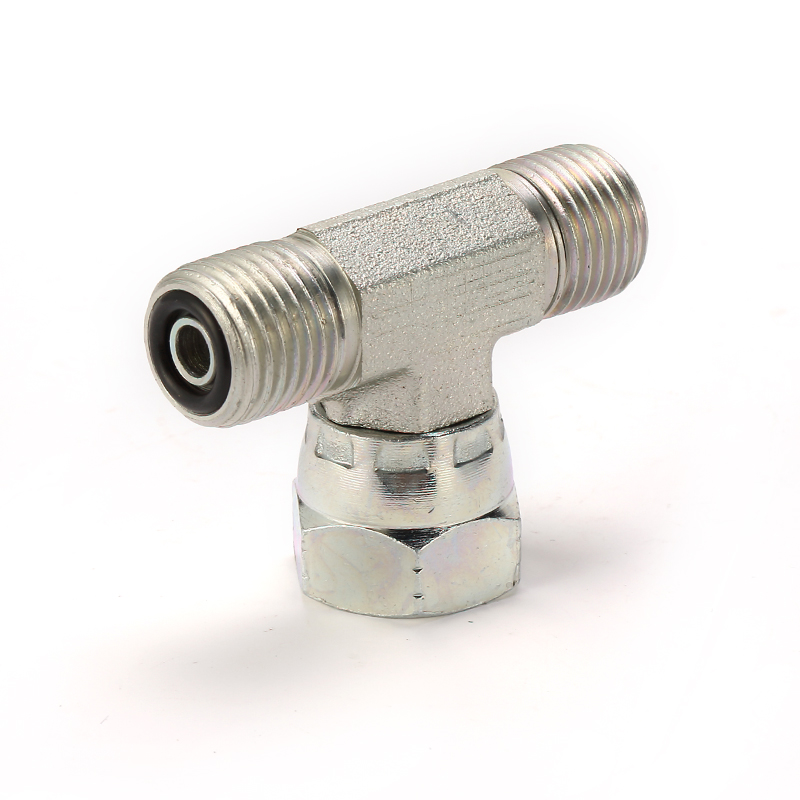

Pehel | ORFS Male Female Male Tee Adapter O‑Ring Face Seal
PEHEL Hydraulic Model: BF
QTY:
- Material: Carbon steel, stainless steel
- Brand: Pehel, OEM
- Color: Silver color zinc plating
- Connector Type: ORFS Male / ORFS Female / ORFS Male Tee
- Thread Type: ORFS O‑ring face seal (UNF straight thread)
About the item:
- 1.This premium ORFS tee adapter adopts O‑ring face‑seal design to deliver reliable zero‑leak performance for hydraulic circuits.
- 2.Heavy‑duty ORFS hydraulic fitting supplied in carbon steel and stainless steel for multiple working environments.
- 3.Silver zinc‑plated surface provides excellent anti‑corrosion property for this robust hydraulic tee connector.
- 4.Male‑female‑male tee configuration, this ORFS face seal tee enables simple branch connection for hydraulic pipelines.
- 5.Pehel factory direct supply, OEM custom sizes available for your ORFS male female male tee projects.
