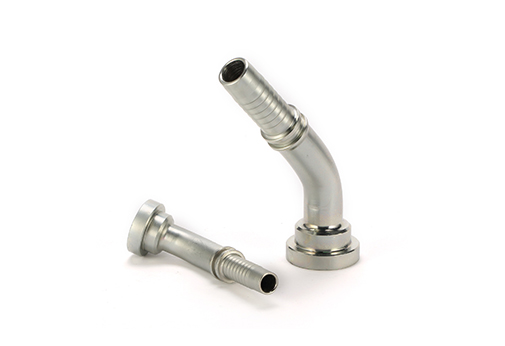

45° SAE Flange 6000PSI

PEHEL Hydraulic Model: P87642

QTY:

  • You May Also Like

  • PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
    DN DASH A C D H L
    87642-08-08 1/2" 12 08 59 31.8 23.9 24 7.9
    87642-08-12 1/2" 20 12 79.8 31.8 23.9 31.8 7.9
    87642-12-10 3/4" 16 10 72.5 41.3 31.7 28 8.9
    87642-12-12 3/4" 20 12 79.3 41.3 31.7 31.8 8.9
    87642-16-16 1" 25 16 90 47.6 38 34.7 9.6
    87642-20-20 1.1/4" 32 20 104 54 43.6 41.5 10.4
    87642-24-20 1.1/2" 32 20 106 63.5 50.8 45 12.7
    87642-24-24 1.1/2" 40 24 120 63.5 50.8 46 12.7
    87642-32-24 2" 40 24 125 79.4 66.5 55 12.7
    87642-32-32 2" 50 32 143 79.4 66.5 52.7 12.7
    NOTE:1.For use with braided hoses.                   2.If use with spiral hoses,hose fitting series number is 87641-XX-XX
