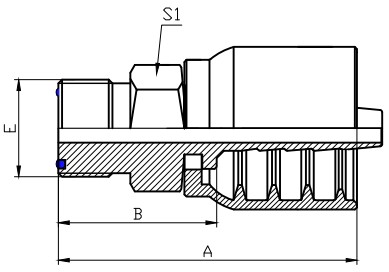

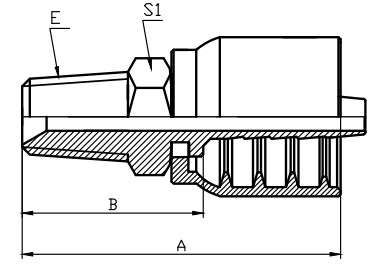

PART NO. THREAD DIMENSIONS E F A B S1 7N4-02 Z1/8"X27 Z1/8"X27 18.5 18.5 16 7N4-04 Z1/4"X18 Z1/4"X18 20 20 19 7N4-06 Z3/8"X18 Z3/8"X18 25 25 24 7N4-08 Z1/2"X14 Z1/2"X14 27.5 27.5 27 7N4-12 Z3/4"X14 Z3/4"X14 31.5 31.5 33 7N4-16 Z1"X11.5 Z1"X11.5 37.5 37.5 41
Pehel | 45 Degree Pressure Gauge Connectors NPT Male BSP Thread Zinc Plated Steel Adapters
PEHEL Hydraulic Model: 7N4
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- Our Pehel 45 degree pressure gauge connectors adopt carbon steel and stainless steel with anti-corrosion silver zinc plating.
- Unique 45 degree bent design of pressure gauge connectors simplifies installation in narrow hydraulic pipeline spaces.
- Dual NPT male and BSP thread structure on this 45 degree gauge connector ensures wide compatibility with all pressure gauges.
- Precisely machined BSP thread fitting on 45 degree adapters offers tight sealing and zero fluid leakage.
- Heavy-duty zinc plated steel 45 degree pressure gauge connectors sustain high pressure for industrial equipment.
