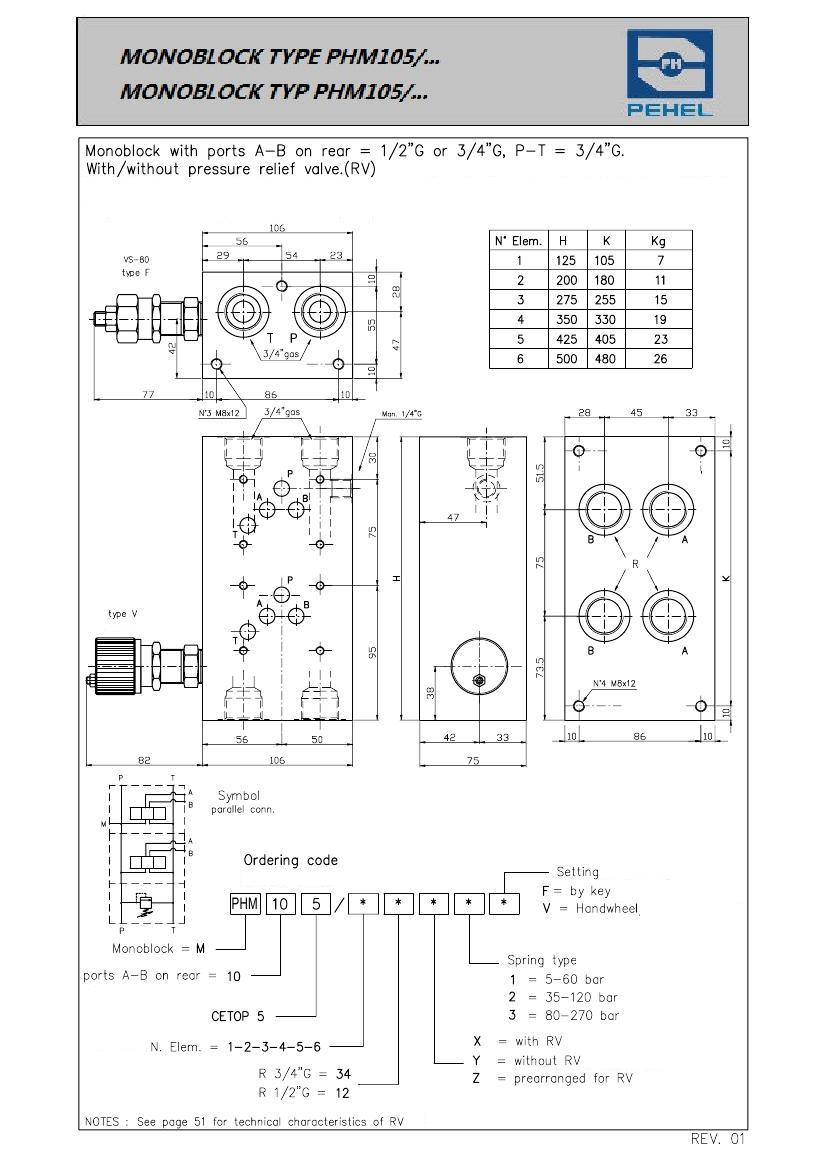

Parameter Details Model PHM105 Monoblock Type Ports (A-B, rear) 1/2" G or 3/4" G (optional) Ports (P-T) 3/4" G Pressure Relief Valve (RV) Optional (with / without / prearranged) Adjustment Type F = Hexagon key / V = Handwheel Mounting Threads N3 / N4: M8 x 12 deep Parallel Connection Yes (symbol shown) CETOP Size CETOP 5
Pehel/PHM105/Customized Quality Guaranteed Manifold Block For Hydraulic System

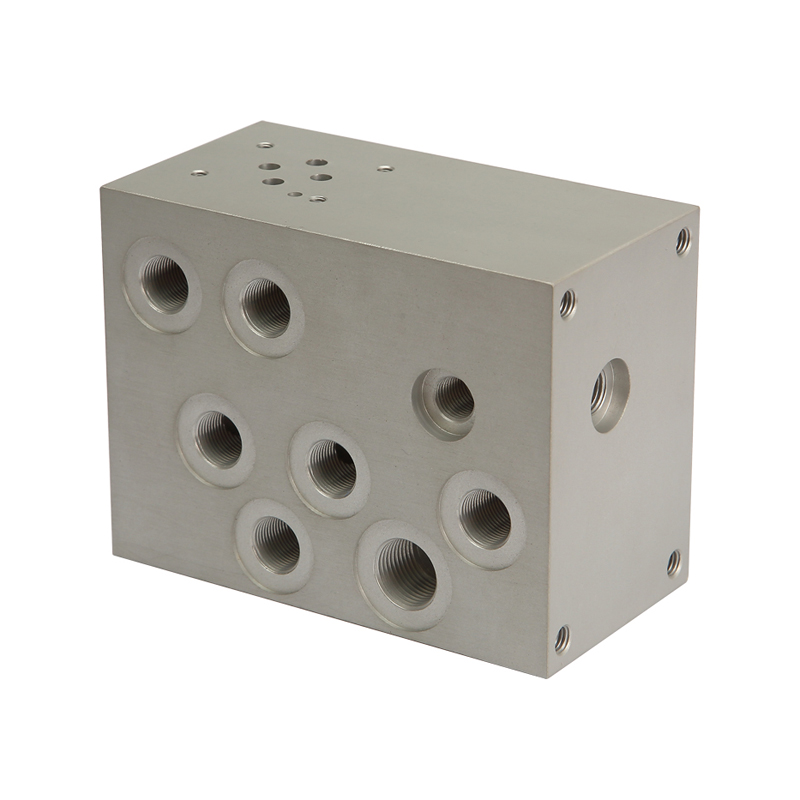

PEHEL Hydraulic Model: PHM105
QTY:
- 1. Monolock with ports A-B on rear=1/2”G or 3/4”G, P-T=3/4”G.
2. with/ without pressure relief valve. (RV)
3. Superior in quality and competitive in price
4. Scientific design and precise manufacturing Material: Carbon steel/Aluminum
Brand: Pehel, OEM
Color: Silver Zinc plating/Anodizing
Connector Type: Manifold Block
Thread Type: Thread can be chosen
About the item:
1.Compact Monoblock Design – Integrates multiple valve sections into a single, rigid block, minimizing leakage points and space requirements.
2.Customizable Section Count – Available from 1 to 6 sections (N.Elem.), allowing flexible configuration for various hydraulic system complexities.
3.Dual Port Options on A-B Rear – Supports both 1/2" G and 3/4" G ports, offering compatibility with different hose and fitting standards.
