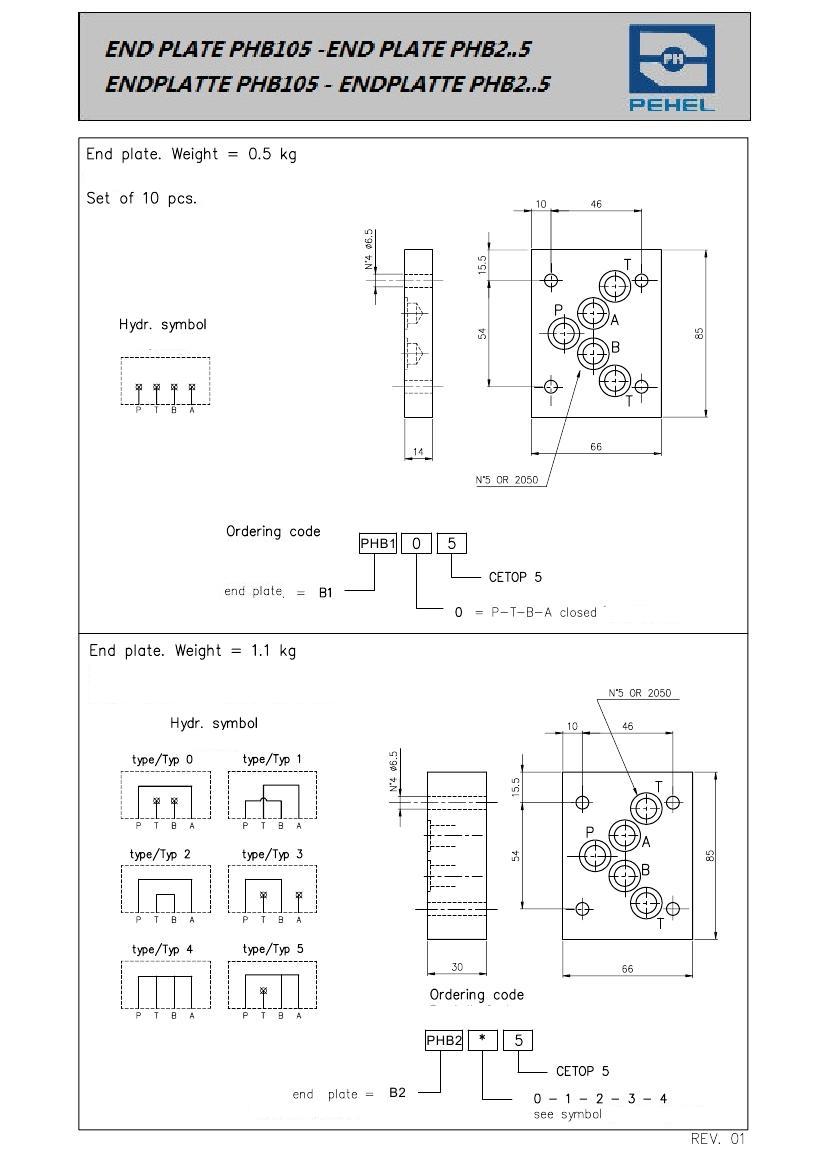

Item Parameter / Description 1 Standard / Interface CETOP 5 (Conforms to CETOP standard) 2 Port Configuration P-T-A-B (All ports closed in neutral position) 3 Number of Positions 5 positions (for Type B1) / 10 positions (for Type B2) 4 Pressure Rating (Alternate) N'5.65 (Refer to detailed symbol for specifics) 5 Hydraulic Symbol Reference Refer to diagram for specific porting functions 6 Dimensions (Reference) 66 (Length or Height unit, as per diagram) 7 Pressure Rating (Notation) N'5OR2050 (Refer to detailed symbol for specifics) 8 End Plate Type B1 (for PHB10) / B2 (for PHB2) 9 Weight (Single Unit) 0.5 kg (for Type B1)
Pehel/PHB105/Hydraulic End Plates Subplates For Cetop 5/High Quality Manifold Block
PEHEL Hydraulic Model: PHB105
QTY:
- 1. End plate. Weight=0.5kg, set of 10 pcs
2. End plate. Weight=1.1kg
3. up to 8 stations
4. Superior in quality and competitive in price Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Manifold Block
Thread Type: Threads Can be Chosen
About the item:
1.Robust & Durable Construction – Manufactured from high-strength materials with precision machining, ensuring reliable performance under high-pressure conditions.
2.Compact & Space-Saving – Optimized footprint design reduces installation space while maintaining full functionality.
3.Easy Installation & Maintenance – Clear port markings (P-T-A-B) and standardized bolt patterns simplify assembly and reduce downtime.
4.Reliable Sealing Performance – Precision-ground mounting surfaces ensure leak-free operation and long service life.
