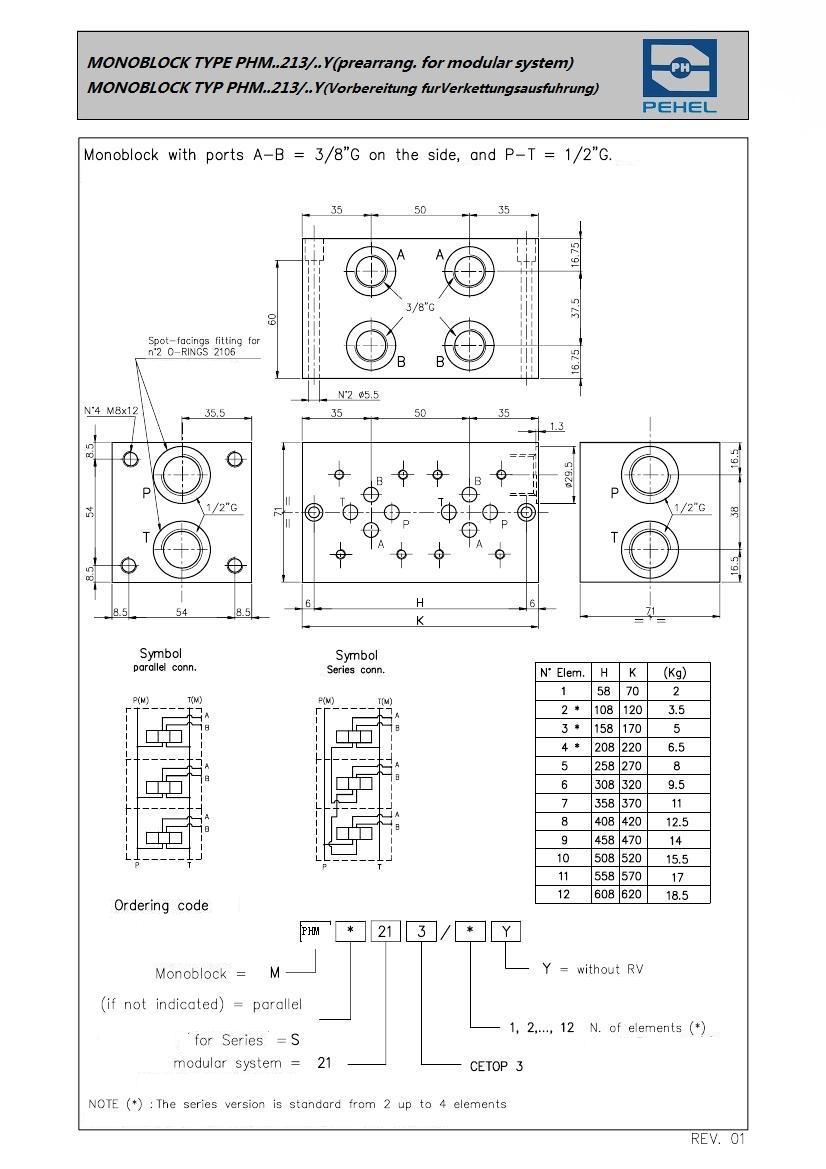

NPT,SAE,PT thread for all parts is availableItem Description Type Monoblock valve body Model PHM..213/..Y Ports A-B = 3/8" G (side); P-T = 1/2" G Mounting CETOP 3 Spot-facing For 2" O-ring 2106 Mounting Holes 4 × M8×12 (depth) Weight Range 2.0 ~ 18.5 Kg Circuit Type Parallel (default) or Series (optional)
Pehel | PHM213 | Hydraulic Monoblock with Ports Oil Blocks
PEHEL Hydraulic Model: PHM213..Y
QTY:
- 1. Monoblock with ports A-B=3/8”G on the side, P-T=1/2”G.
2. NPT, SAE, PT thread for all parts is available
3. up to 8 stations
4. Superior in quality and competitive in price Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Customized: Yes
About the items:
1. Compact design – integrates multiple valves into one unit.
2. Customizable ports – tailored drilling for specific circuit needs.
3. Leak-free operation – precision-machined surfaces minimize fluid loss.
4. Space-saving solution – eliminates complex piping and fittings.
5. Durable construction – high-strength material for high-pressure systems.
