代号
PART NO.
螺 纹 THREAD
O形圈 O-RING

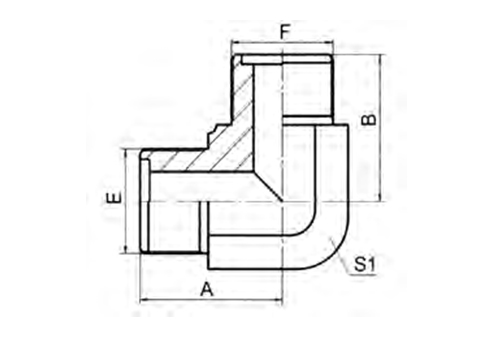

尺寸DIMENSIONS
E、F
E、F端
A
B
S1
1E9-12
M12X1.25
8X1.9
20.5
20.5
12
1E9-14
M14X1.5
10X2
22.5
22.5
14
1E9-16
M16X1.5
11X1.9
24
24
17
1E9-18
M18X1.5
13X2
26
26
19
1E9-22
M22X1.5
16.1X2.4
29
29
22
1E9-27
M27X1.5
20.1X2.4
32.5
32.5
27
1E9-30
M30X1.5
24.1X2.4
35.5
35.5
30
1E9-36
M36X2
30X3.1
42
42
36
1E9-39
M39X2
32X3.1
47.5
47.5
41
1E9-42
M42X2
35X3.1
49.5
49.5
41
1E9-45
M45X2
38X3.1
52.5
52.5
46
1E9-52
M52X2
40X3.1
57
57
50
Metric Male O-Ring 90° Elbow Hydraulic Fitting – Carbon & Stainless Steel Adapter
PEHEL Hydraulic Model: P1E9
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: Metric O-ring
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Leak-proof sealing – Precision-machined O-ring groove ensures reliable performance in high-pressure hydraulic systems.
2.Premium materials – Available in carbon steel and stainless steel for superior strength and corrosion resistance.
3.Corrosion protection – Silver zinc plating extends service life in harsh industrial environments.
4.Versatile fit – Compatible with metric male threads across various hydraulic hoses and tubes.
5.Space-saving design – 90° elbow reduces bending stress and optimizes routing in tight installations.
