THREAD TUBE O.D. DIMENSIONS PART NO. MPa E,F D1,D2 L2 S1,S2 3C-12 M12X1.5 6 32 14 31.5 L 3C-14 M14X1.5 8 32 17 3C-16 M16X1.5 10 33 19 3C-18 M18X1.5 12 34 22 3C-22 M22X1.5 15 38 27 3C-26 M26X1.5 18 40 32 3C-30 M30X2 22 42 36 16 L 3C-36 M36X2 28 46 41 3C-45 M45X2 35 51 50 3C-52 M52X2 42 56 60 3D-14 M14X1.5 6 32 17 63 S 3D-16 M16X1.5 8 33 19 3D-18 M18X1.5 10 35 22 3D-20 M20X1.5 12 36 24 3D-22 M22X1.5 14 36 27 3D-24 M24X1.5 16 39 30 40 S 3D-30 M30X2 20 44 36 3D-36 M36X2 25 46 46 3D-42 M42X2 30 52 50 3D-52 M52X2 38 55 60 31.5 S

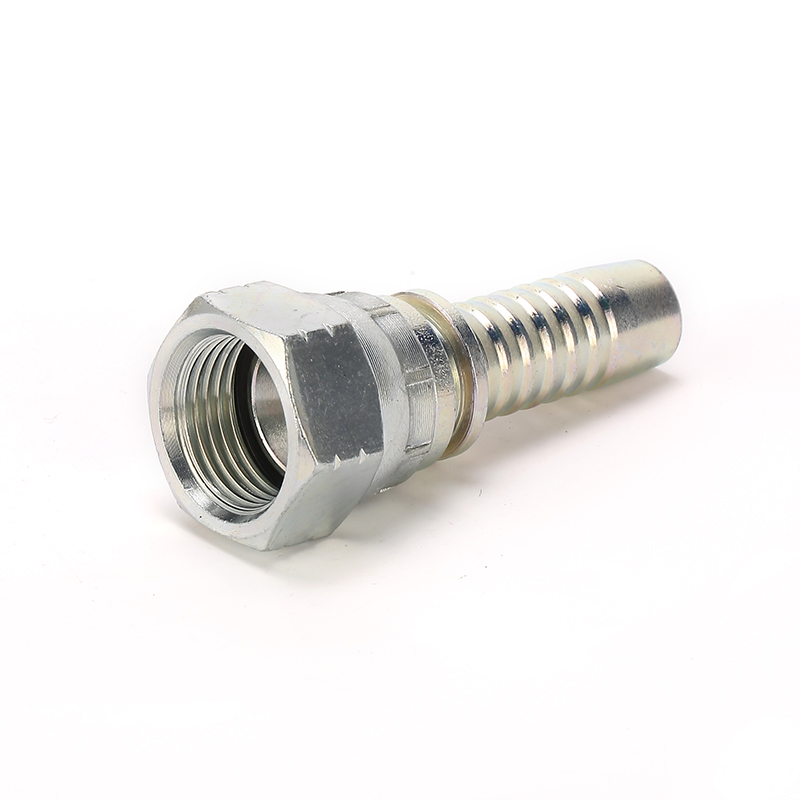

Metric Female Hydraulic Fittings | Connectors | Factory Ready Stock
PEHEL Hydraulic Model: P3C P3D
QTY:
About the item:
· 1.Forged Construction: Ensures durability and strength for heavy-duty applications.
· 2.High Pressure Rating: Designed to withstand high-pressure hydraulic systems.
· 3. Zinc Plated Finish: Provides rust resistance and enhances longevity.
4. Strict tolerance crimp stem enables stable hose crimping, avoids hose pull-off & oil seepage.
· 5. Customizable Options: Available in various sizes and configurations for tailored solutions.
