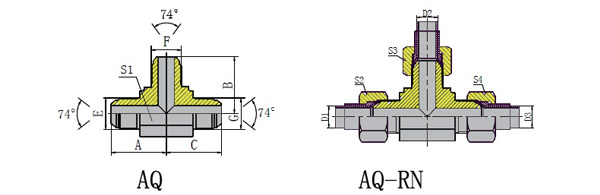

PART NO. THREAD TUBE O.D. DIMENSIONS E F G D1,D2,D3 A B C S1 S2,S3,S4 AQ-14 M14X1.5 M14X1.5 M14X1.5 8 30.2 30.5 30.2 14 17 AQ-16 M16X1.5 M16X1.5 M16X1.5 10 32 32 32 16 19 AQ-18 M18X1.5 M18X1.5 M18X1.5 12 34 34 34 19 22 AQ-22 M22X1.5 M22X1.5 M22X1.5 14 37.5 37.5 37.5 22 27 AQ-27 M27X1.5 M27X1.5 M27X1.5 18 41.5 41.5 41.5 27 32 AQ-30 M30X1.5 M30X1.5 M30X1.5 20 45.8 45.8 45.8 30 36 AQ-33 M33X2 M33X2 M33X2 22 49.5 49.5 49.5 33 41 Note: In case if you are interested to order the adapter in complete set with sleeve and nut ,it is necessory to inset suffix "RN" in after of part no., for example AQ-18RN.
PEHEL/ Metric Male 74 Seat TEE ADAPTER
PEHEL Hydraulic Model: AQ
QTY:
Metric Male 74 Seat TEE ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: TEE ADAPTER
Thread Type: METRIC 74 SEAT MALE
ABOUT THIS ITEM:
1.PEHEL AQ series is metric male 74° cone flare tube fitting with fine metric threads M14×1.5 to M33×2, matches European metric hydraulic tube systems for metal-to-metal leakproof sealing.
2.Complete standard size lineup covers tube OD 8mm–22mm, unified A/B/C/S1/S2 dimensional specs for universal interchange with metric hydraulic tubing assemblies.
3.Optional full kit version marked suffix RN (AQ-XXRN) including matching sleeve and nut, one-stop solution for complete metric flare tube connection installation.
4.CNC machined carbon steel with zinc electroplated finish delivers strong anti-corrosion and anti-vibration performance, stable under continuous high-pressure hydraulic circulation.
5.Factory direct AQ metric flare fittings with strict thread & cone angle tolerance inspection, supports bulk wholesale and OEM custom drawing service for global hydraulic distributors.
