THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 D2 I1 L1 S1 S2 1C9-12 M12×1.5 M12×1.5 6 6 11 19 12 12 31.5 L
1C9-14 M14×1.5 M14×1.5 8 8 14 21 12 12 1C9-16 M16×1.5 M16×1.5 10 10 15 22 14 14 1C9-18 M18×1.5 M18×1.5 12 12 17 24 17 17 1C9-22 M22×1.5 M22×1.5 15 15 21 28 19 19 1C9-26 M26×1.5 M26×1.5 18 18 23.5 31 24 24 1C9-30 M30×2 M30×2 22 22 27.5 35 27 27 16 L
1C9-36 M36×2 M36×2 28 28 30.5 38 36 36 1C9-45 M45x2 M45x2 35 35 34.5 45 41 41 1C9-52 M52×2 M52×2 42 42 40 51 50 50 1D9-14 M14×1.5 M14×1.5 6 6 16 23 12 12 63 S
1D9-16 M16×1.5 M16×1.5 8 8 17 24 14 14 1D9-18 M18×1.5 M18×1.5 10 10 17.5 25 17 17 1D9-20 M20×1.5 M20×1.5 12 12 21.5 29 17 17 1D9-22 M22×1.5 M22×1.5 14 14 22 30 19 19 1D9-24 M24×1.5 M24×1.5 16 16 24.5 33 24 24 40 S
1D9-30 M30×2 M30×2 20 20 26.5 37 27 27 1D9-36 M36×2 M36×2 25 25 30 42 36 36 1D9-42 M42×2 M42×2 30 30 35.5 49 41 41 1D9-52 M52x2 M52x2 38 38 41 57 50 50 31 S

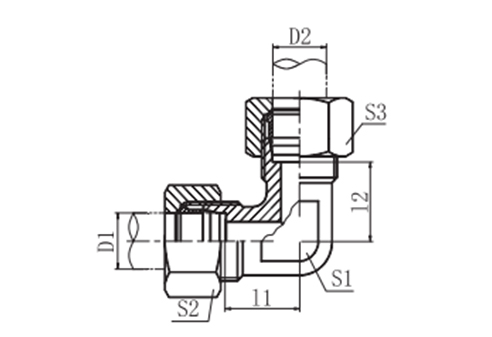

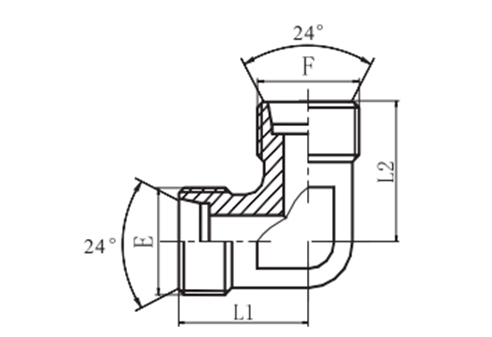

90° Elbow Fittings
PEHEL Hydraulic Model: P1C9 P1D9/P1C9-RN/P1D9-RN
