PEHEL |Metric Female 74 Seat Plug Hydraulic Adapter| CNC Machined Connector

PEHEL |Metric Female 74 Seat Plug Hydraulic Adapter| CNC Machined Connector

PEHEL Hydraulic Model: 9Q

QTY:

  • Material: Carbon steel, Stainless Steel, Aluminium, Brass

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: Straight

    Thread Type: HYDRAULIC HOSE ADAPTER

  • 1. Zinc-plated surface treatment against rust and oxidation.

    2.Strict dimension tolerance, consistent crimping result batch to batch.

    3. Designed for hydraulic hose crimp on assembly.

    4. Reliable replacement parts for repair & maintenance of hydraulic hoses.

  • Specification
  • You May Also Like
  • PART NO. THREAD DIMENSIONS
    E A L S2
    9Q-14 M14X1.5 8.5 11 19
    9Q-16 M14X1.5 8 12 22
    9Q-18 M18X1.5 8 13 24
    9Q-22 M22X1.5 10 14 27
    9Q-27 M24X1.5 10 17 32
    9Q-30 M30X1.5 11 17 36
    9Q-36 M36X2 13 20 41
    9Q-39 M39X2 13 21 46
    9Q-45 M45X2 15 23 50
    9Q-52 M52X2 17 27 60
    9Q-60 M60X2 20 30 70

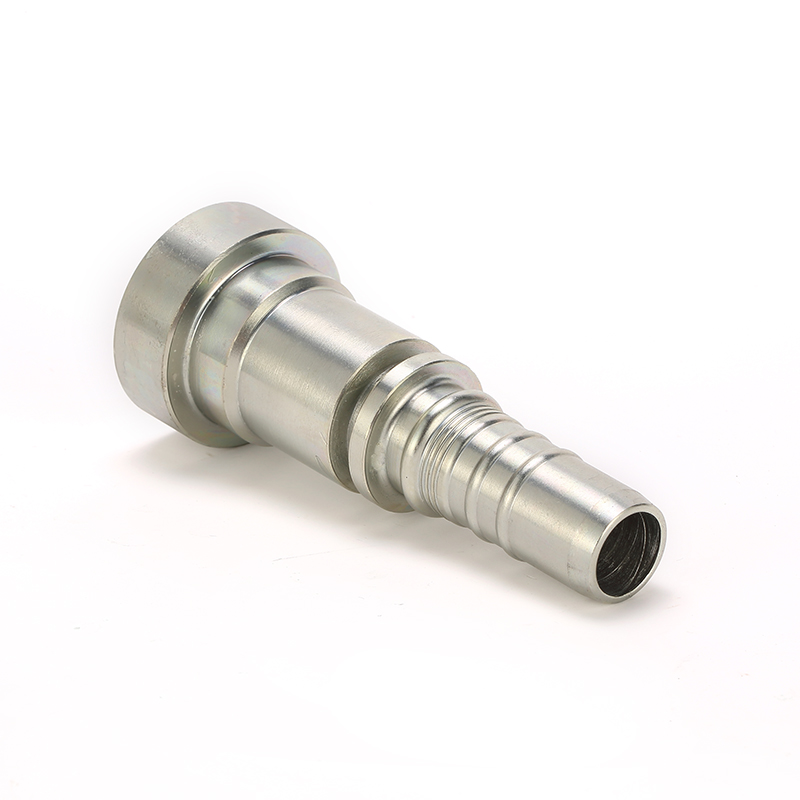

  • SAE 9000 PSI HYDRAULIC HOSE FITTING
    Details

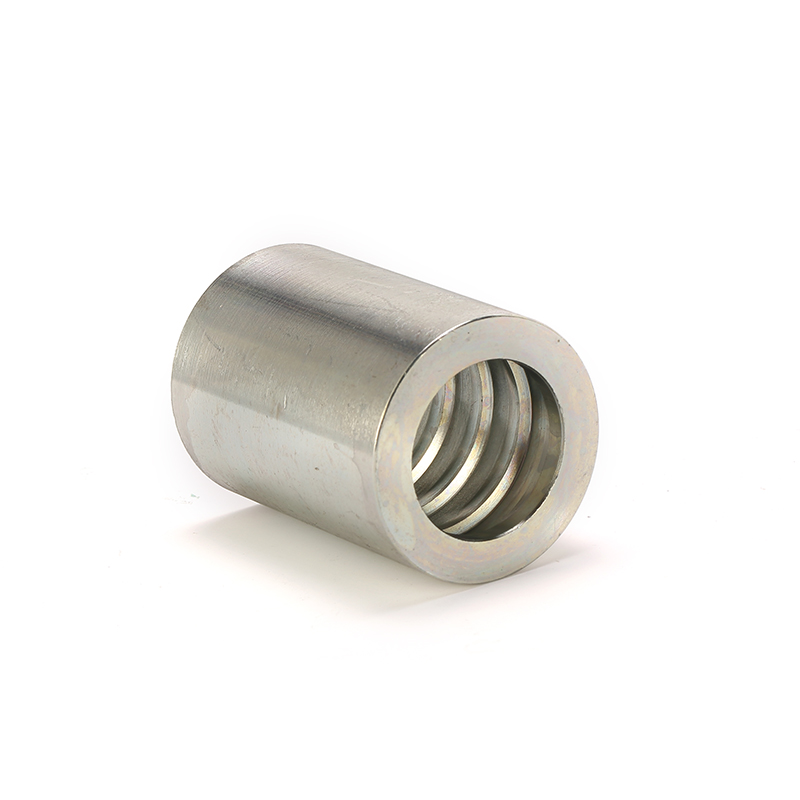

    HYDRAULIC HOSE FERRULE HOSE CLAMP
    Details

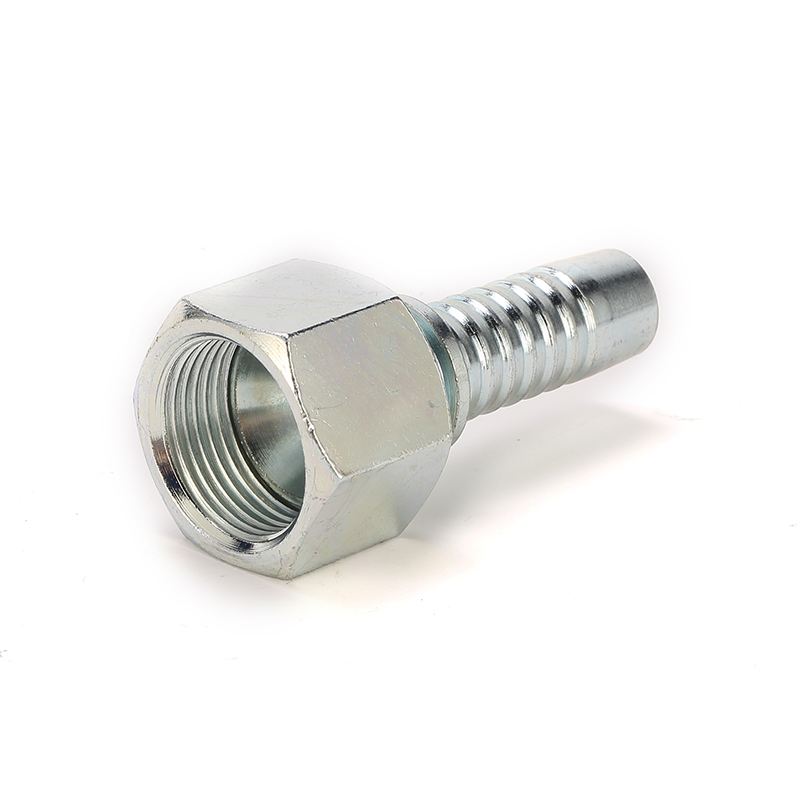

    METRIC FEMALE HYDRAULIC HOSE FITTING
    Details

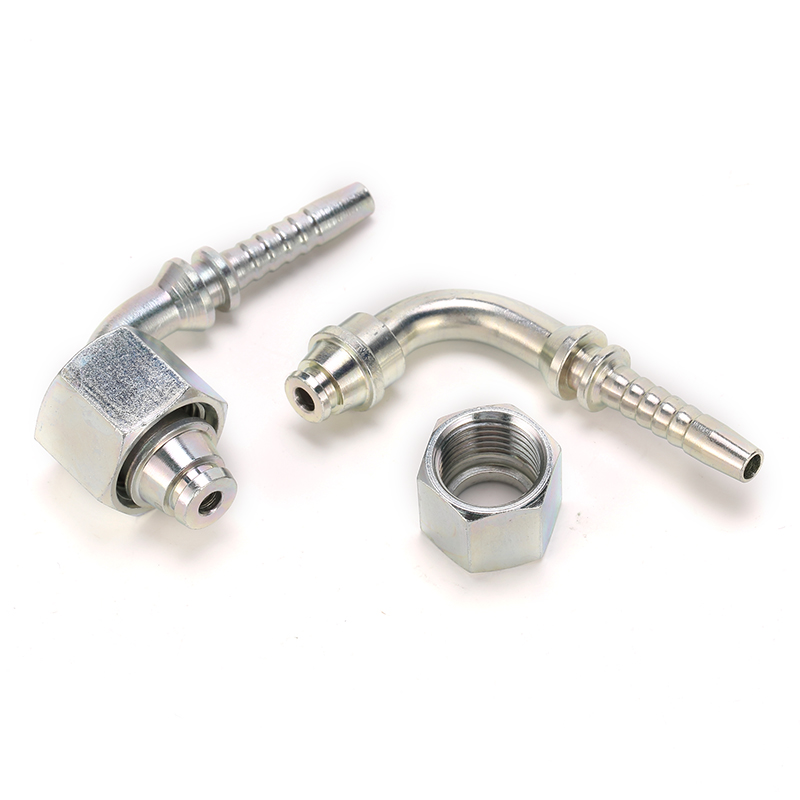

    METRIC FEMALE THREAD HYDRAULIC HOSE FITTING
