PART NO. THREAD TUBE O.D. DIMENSIONS E F D1,D2 A B S1 S2 S3,S4 6Q9-12 M12X1.5 M12X1.5 6 26.5 52 11 17 14 6Q9-14 M14X1.5 M14X1.5 8 31 56 14 19 17 6Q9-16 M16X1.5 M16X1.5 10 33 58 16 22 19 6Q9-18 M18X1.5 M18X1.5 12 34 62 19 24 22 6Q9-22 M22X1.5 M22X1.5 14 36.5 64 22 27 27 6Q9-27 M27X1.5 M27X1.5 18 40 72 27 32 32 6Q9-30 M30X1.5 M30X1.5 20 45.5 78 30 36 36 6Q9-33 M33X2 M33X2 22 48.5 82 33 41 41 6Q9-36 M36X2 M36X2 25 50 86 36 41 41 6Q9-39 M39X2 M39X2 28 53 88 41 46 46 6Q9-42 M42X2 M42X2 32 55.5 95 41 50 50 6Q9-45 M45X2 M45X2 34 57 96 45 50 50 Note In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.for example 6Q9-30LN ;order the adapter with sleeve and nut,insert suffix "RN" after part
no.,for example 6Q9-30RN order the adapter with lock nut and sleeve and nut,insert suffix"LN/RN" after part no.,for example 6Q9-30LN/RN.

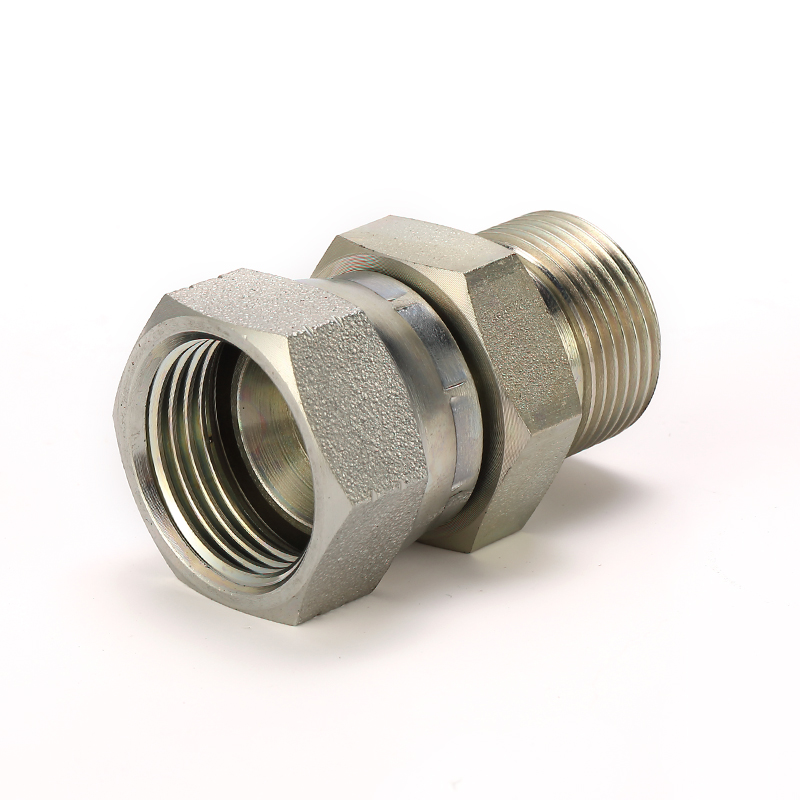

Pehel | P6Q9 | Hydraulic 90 Metric Male 74 Cone
PEHEL Hydraulic Model: 6Q9
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: Metric
About the item:
1. Versatile fittings – connect metric male threads through bulkhead panels.
2. Metric male thread – meets DIN/ISO standards for exact fit and sealing.
3. Bulkhead design – allows secure pass-through mounting on panels or enclosures.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Easy installation – locknut design simplifies panel mounting and alignment.
