PEHEL | Metric Male 24°-Female 60° Hydraulic Connector | Ready Stock Quick Delivery

PEHEL | Metric Male 24°-Female 60° Hydraulic Connector | Ready Stock Quick Delivery

PEHEL Hydraulic Model: P2M

QTY:

  • Material: Carbon steel

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: Straight

    Thread Type: Metric

  • 1. Dual Cone Sealing Design，Zero Oil Leakage under High Pressure

    2. Precise CNC Machined Cone Surface，Uniform Pressure Distribution，No Sealing Failure Under Vibration

    3. Built-in O-ring Reinforced Seal，Resist Oil Seepage During Long-time Continuous Operation

    4. Meet ISO 8434-1 Metric Standard，Stable Sealing for Hydraulic Heavy-duty Systems

  • Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F A B S1 S2 L
    P2M-12 M12X1.5 M12X1.5 10 5 17 17 27
    P2M-14 M14X1.5 M14X1.5 11 5.5 19 19 28.5
    P2M-16 M16X1.5 M16X1.5 12 5.5 22 22 29.5
    P2M-16-18 M16X1.5 M18X1.5 12 5.6 22 24 33
    P2M-18-16 M18X1.5 M16X1.5 12 5.5 24 22 32
    P2M-18 M18X1.5 M18X1.5 12 5.6 24 24 31
    P2M-18-20 M18X1.5 M20X1.5 12 6.5 24 27 34.5
    P2M-18-22 M18X1.5 M22X1.5 12 6 24 27 35
    P2M-20-18 M20X1.5 M18X1.5 14 5.6 27 24 37
    P2M-20 M20X1.5 M20X1.5 14 6.5 27 27 38.5
    P2M-20-22 M20X1.5 M22X1.5 14 6 27 27 40
    P2M-22-18 M22X1.5 M18X1.5 14 5.6 27 24

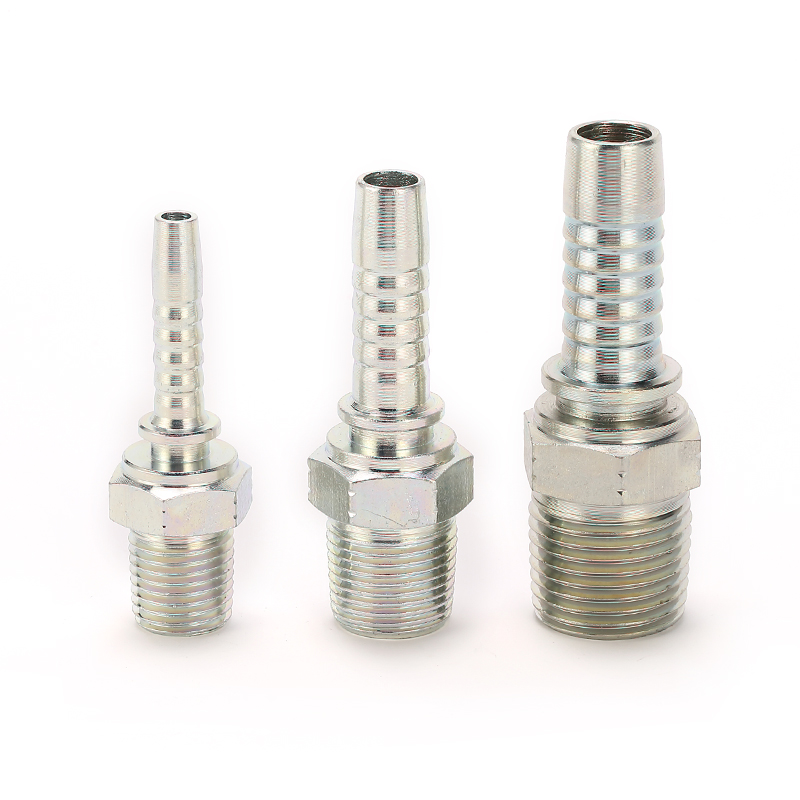

  • 15611 Male NPT Straight Two Piece Crimp Hydraulic Hose Fittings

    Details

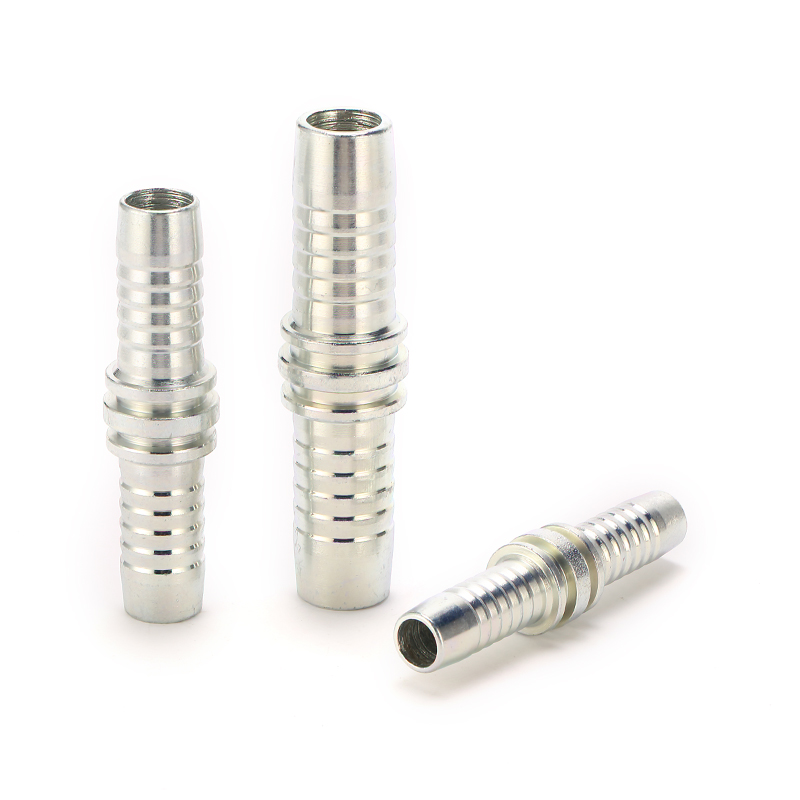

    Double Connector Hose Fittings
    Details

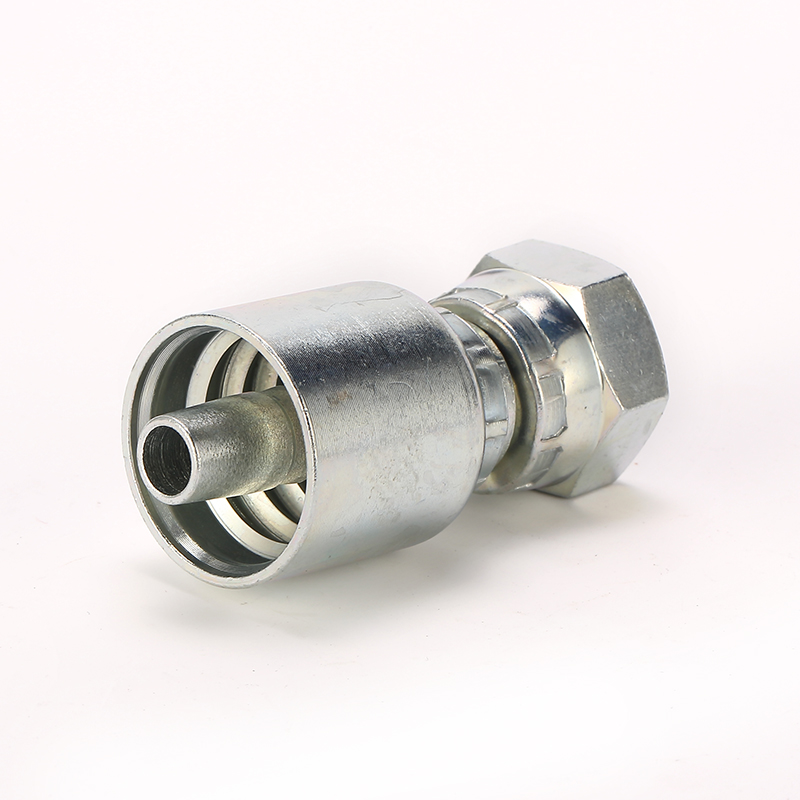

    Metric Female 24 Degree Cone H. T. Hose Fitting
    Details

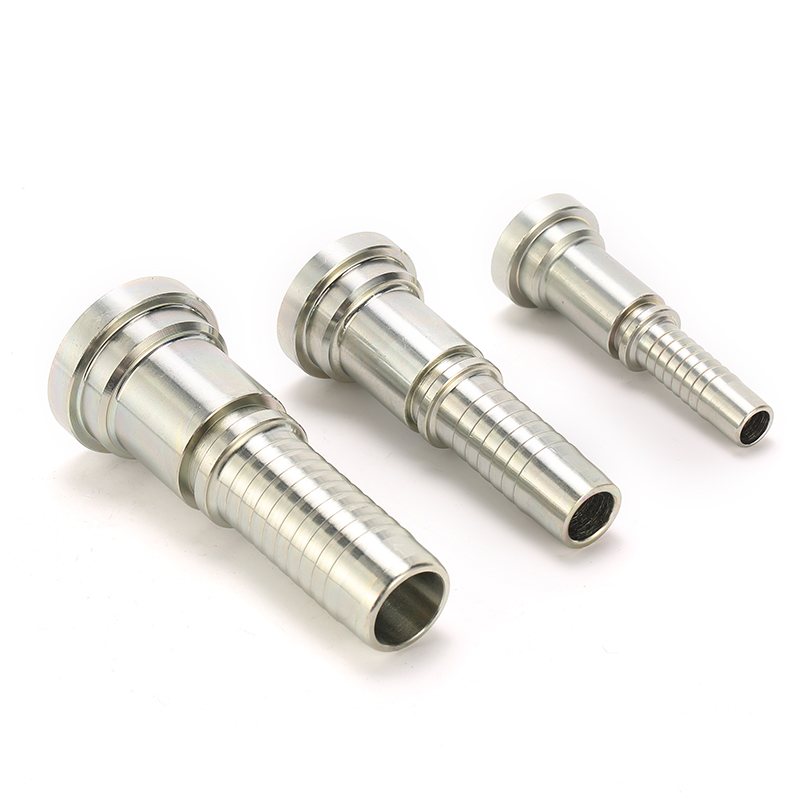

    3000PSI SAE Flange
