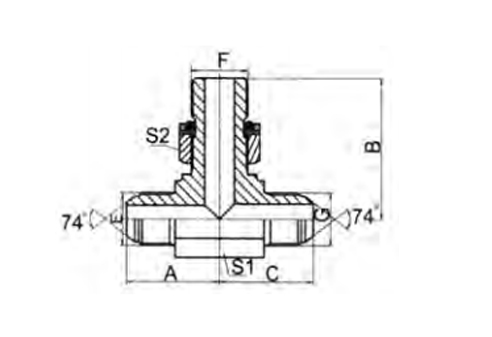

THREAD D1,D2 O-RING DIMENSIONS PART NO. E,G F TUBE O.D. F A,C B S1 S2 S3,S4 AQHQ-14-12-14OG M14X1.5 M12X1.5 8 O09.3X2.4 29 32 14 17 17 AQHQ-16-14-16OG M16X1.5 M14X1.5 10 O11.3X2.4 33 35.5 16 19 22 AQHQ-18-16-18OG M18x1.5 M16X1.5 12 O13.3X2.4 34 36 19 22 24 AQHQ-22-18-22OG M22x1.5 M18x1.5 14 O15.3X2.4 37.5 39.5 22 24 27 AQHQ-27-22-27OG M27X1.5 M22x1.5 18 O19.3X2.4 41.5 43.5 27 27 32 AQHQ-30-27-30OG M30x1.5 M27X2 20 O23.5X3.0 45.8 50 30 32 36 AQHQ-33-27-33OG M33x2 M27X2 22 O23.5X3.0 49.5 52 33 32 38 AQHQ-36-33-36OG M36x2 M33X2 25 O29.5X3.0 51.5 54 36 41 41 AQHQ-39-33-39OG M39X2 M33x2 28 O29.5X3.0 55.5 57.2 41 41 46 AQHQ-45-42-45OG M45X2 M42x2 34 O38.5X3.0 62.5 61 48 50 55
Pehel | Metric 74° Cone Tee Hydraulic Transition Fitting
PEHEL Hydraulic Model: PAQHQ-OG/PAQHQ-OG/RN
QTY:
- Material: Carbon steel, stainless steel
- Brand: Pehel, OEM
- Color: Silver color zinc plating
- Connector Type: Tee adapter, 3‑way branch connector, Metric 74° Cone
- Thread Type: Metric thread, 74° cone seat (SAE J514 equivalent metric standard)
- Surface Treatment: Trivalent zinc plating, silver finish
- Sealing Type: 74° cone metal‑to‑metal seal
- Structure: Three‑way tee branch
- Application: Industrial hydraulics, mobile machinery, hydraulic power units
About the item:
- 1.This metric 74° cone hydraulic transition piece serves as 3‑way tee branch for splitting hydraulic fluid flow.
- 2.Carbon steel and stainless steel grades make this hose end connector fit different pressure and ambient working scenarios.
- 3.Silver zinc‑plated surface provides outstanding anti‑corrosion performance for this heavy‑duty hose coupling.
- 4.Precisely machined metric threads and 74° cone seat deliver leak‑tight performance for this high‑pressure hydraulic union.
- 5.Supply Pehel standard parts plus OEM service to meet your custom fluid connection component requirements.
