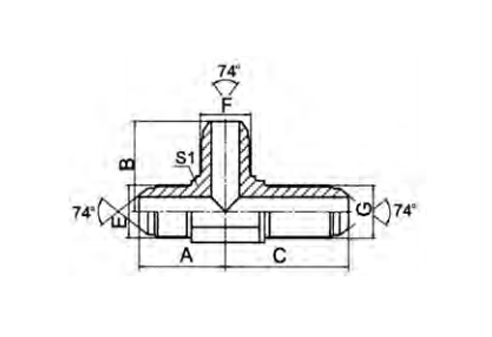

THREAD DIMENSIONS PART NO. E F G A B C S1 S2 AJJ6J-04 7/16"X20 7/16"X20 7/16"X20 24.5 24.5 40.4 11 17 AJJ6J-05 1/2"X20 1/2"X20 1/2"X20 26.6 26.6 43.7 14 19 AJJ6J-06 9/16"X18 9/16"X18 9/16"X18 26.9 26.9 46 14 22 AJJ6J-08 3/4"X16 3/4"X16 3/4"X16 32 32 53.5 19 24 AJJ6J-10 7/8"X14 7/8"X14 7/8"X14 37.8 37.8 60.7 22 30 AJJ6J-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 44.2 67.8 27 36 AJJ6J-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 49 71 33 41 AJJ6J-20 1.5/8"X12 1.5/8"X12 1.5/8"X12 55.3 55.3 79.2 41 50 AJJ6J-24 1.7/8"X12 1.7/8"X12 1.7/8"X12 63.5 63.5 86.9 48 55

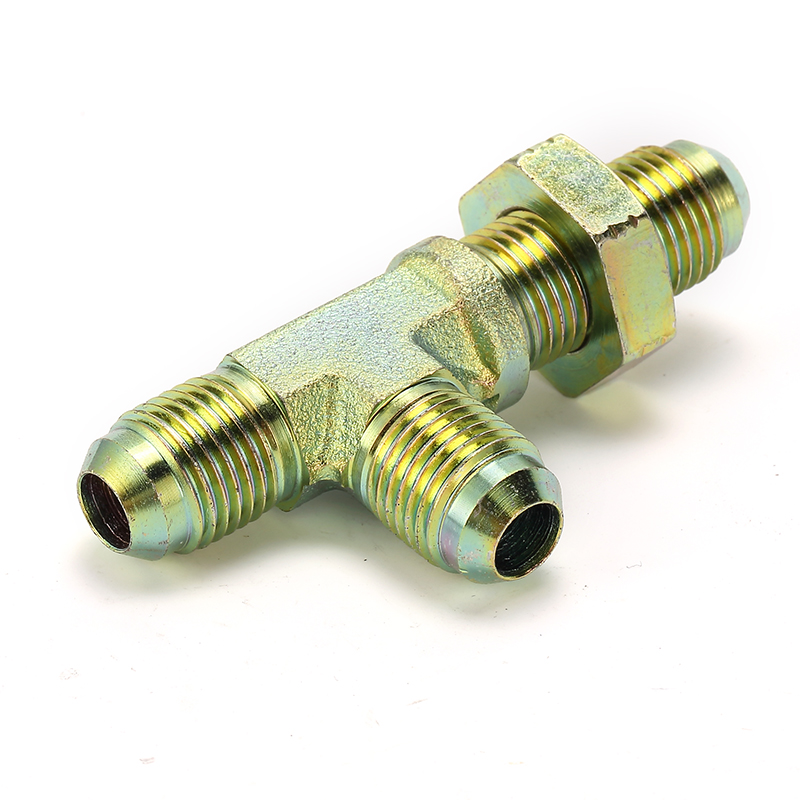

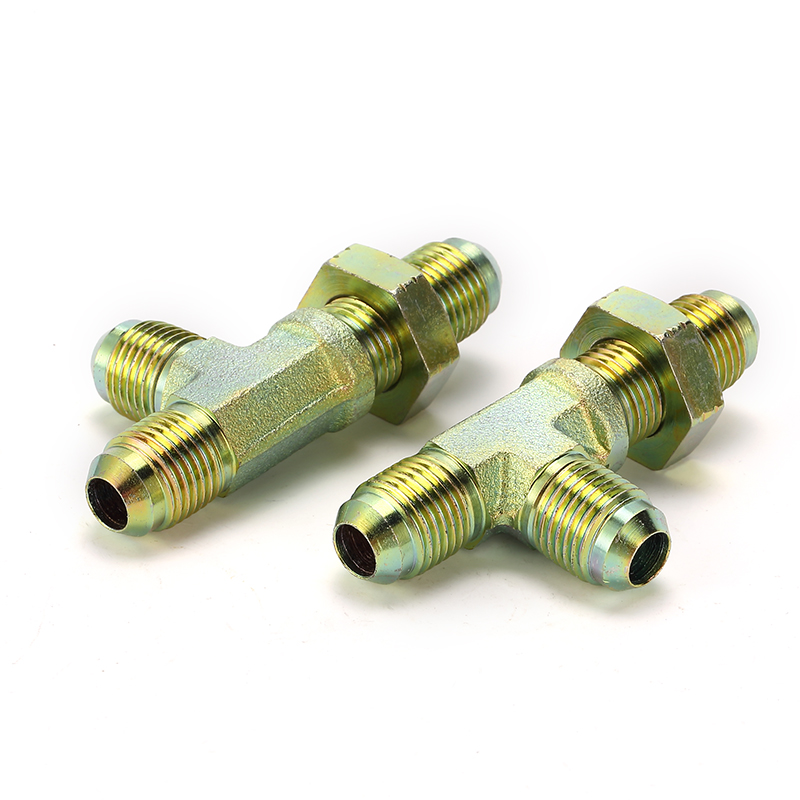

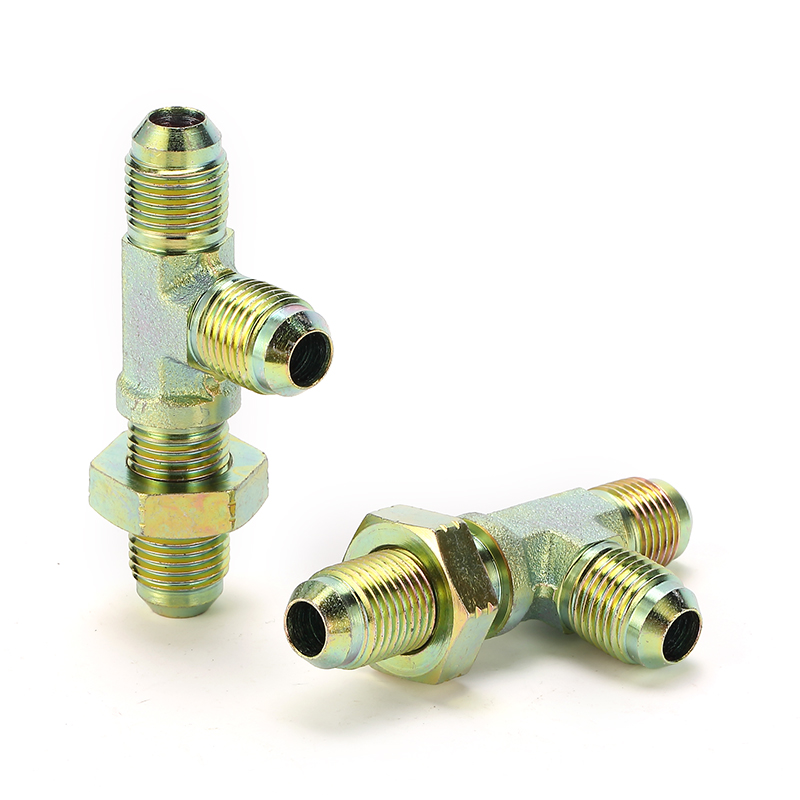

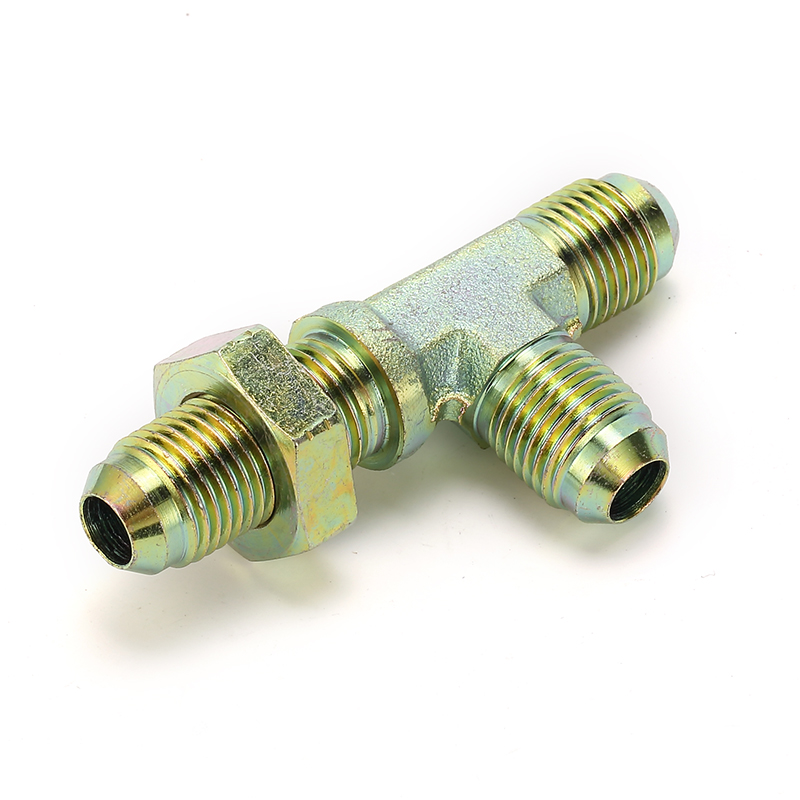

Pehel | JIC Male 74° Cone Bulkhead Run Tee Adapter
PEHEL Hydraulic Model: PAJJ6J/PAJJ6J-LN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.JIC male 74° cone bulkhead run tee adapter provides stable through‑panel hydraulic line connections.
- 2.Available in carbon steel and stainless steel to satisfy various industrial hydraulic application needs.
- 3.Silver zinc‑plated surface enhances anti‑corrosion performance for long‑term service of this tee adapter.
- 4.Precision‑machined 74‑degree cone surface achieves leak‑tight sealing for JIC bulkhead tee assembly.
- 5.Strict dimensional tolerance guarantees smooth installation of the bulkhead run tee adapter.
