PEHEL/JIC MALE 74° CONE / BSPT MALE ADAPTER

PEHEL/JIC MALE 74° CONE / BSPT MALE ADAPTER

PEHEL Hydraulic Model: P5JT

QTY:

  • JIC MALE 74° CONE / BSPT MALE ADAPTER


    Material: Carbon steel

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: ADAPTER

    Thread Type 1: JIC MALE 74° CONE

    Thread Type 2: BSPT MALE

  • About the item:

    1. JIC Male 74° Cone / BSPT Male — straight adapter connecting JIC 74° cone systems to BSPT taper ports.

    2. 74° cone seat ensures a reliable, leak-tight flare-type seal.

    3. BSPT male taper thread (Rc) provides a strong metal-to-metal interference seal.

    4. Available from 7/16"-20 to 1-5/16"-12, including reducing sizes for flexible matching.

    5. Ideal for hydraulic, pneumatic, oil and gas systems needing JIC-to-BSPT conversion.

  • Specification
  • You May Also Like

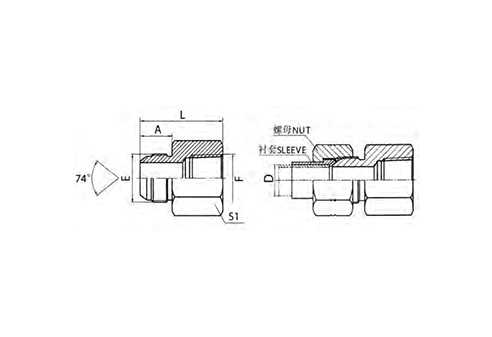

  • PART NO. THREAD DIMENSIONS
    EFALS1
    5JT-04-027/16"X20Rc1/8"X28143014
    5JT-047/16"X20Rc1/4"X191435.519
    5JT-06-049/16"X18Rc1/4"X1914.135.519
    5JT-069/16"X18Rc3/8"X1914.136.522
    5JT-08-063/4"X16Rc3/8"X1916.739.522
    5JT-083/4"X16Rc1/2"X1416.745.527
    5JT-10-087/8"X14Rc1/2"X1419.34827
    5JT-121.1/16"X12Rc3/4"X1421.952.536
    5JT-161.5/16"X12Rc1"X1123.159.541

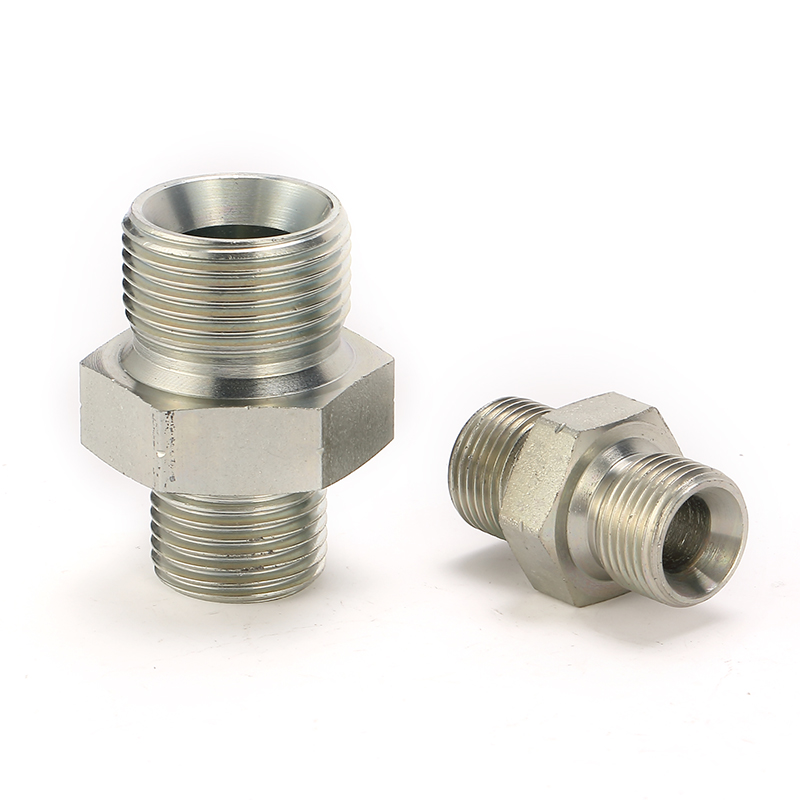

  • 1BG / MALE BSP 60 CONE MALE BSP O RING STRAIGHT ADAPTER
    Details

    1B / MALE BSP 60 CONE SEAL OR BONDED SEAL DOUBLE USE STRAIGHT ADAPTER

    Details

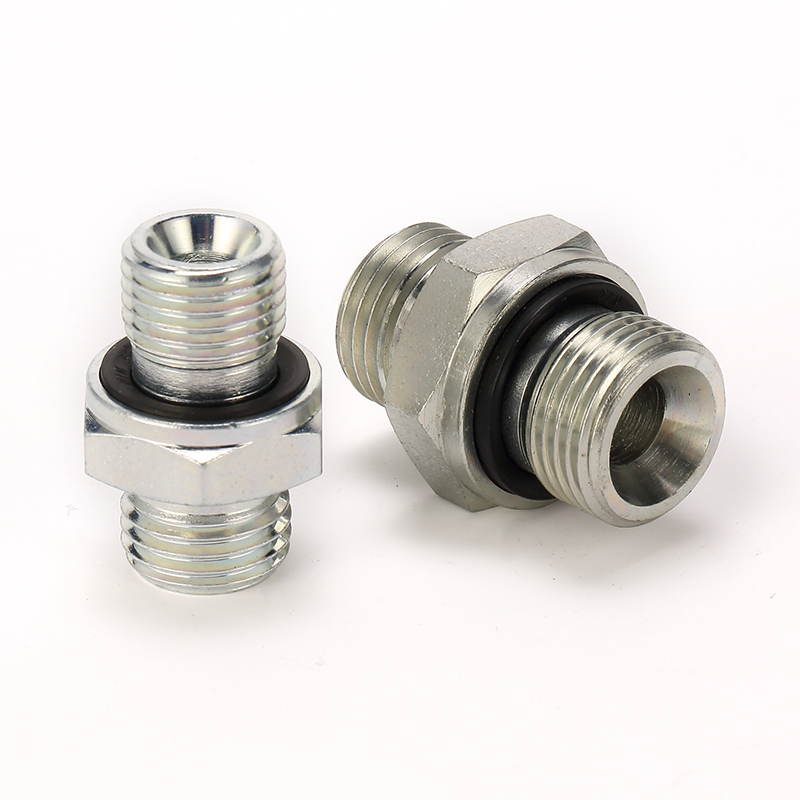

    1B-WD / MALE BSP 60 CONE CAPTIVE SEAL STRAIGHT ADAPTER
