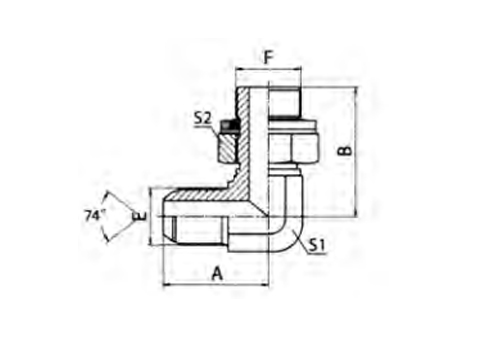

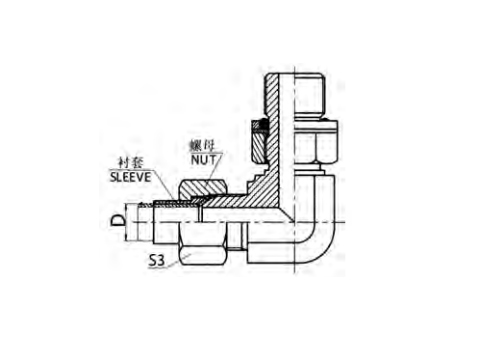

THREAD D O-RING DIMENSIONS PART NO. E F TUBE O.D. F A B S1 S2 S3 1QH9-14-12OG M14X1.5 M12X1.5 8 O09.3X2.4 29 32 14 17 17 1QH9-16-14OG M16X1.5 M14X1.5 10 O11.3X2.4 33 35.5 19 19 22 1QH9-18-16OG M18x1.5 M16x1.5 12 O13.3X2.4 34 36 19 22 24 1QH9-22-18OG M22x1.5 M18x1.5 14 O15.3X2.4 37.5 39.5 22 24 27 1QH9-27-22OG M27x1.5 M22x1.5 18 O19.3X2.4 41.5 43.5 27 27 32 1QH9-30-27OG M30x1.5 M27x2 20 O23.5X3.0 45.8 50 30 32 36 1QH9-33-27OG M33x2 M27x2 22 O23.5X3.0 49.5 52 33 32 41 1QH9-36-33OG M36x2 M33x2 25 O29.5X3.0 51.5 54 36 41 41 1QH9-39-33OG M39x2 M33x2 28 O29.5X3.0 55.5 57.2 41 41 46 1QH9-45-42OG M45x2 M42x2 34 O38.5X3.0 62.5 61 48 50 50
Zinc Plated Carbon Steel | 90 Elbow Metric 74°Cone Hydraulic Tube Fitting
PEHEL Hydraulic Model: P1QH9-OG/P1QH9-OG/RN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: 90 degree elbow hydraulic adapter
Thread Type: Metric thread with precision 74° cone sealing seat
About the item:
- 1.This 90 degree metric 74 cone elbow adopts precise 74° cone seat to achieve tight metal-to-metal sealing without oil leakage.
- 2.Made of carbon steel and stainless steel with silver zinc plating, the metric 74 cone hydraulic fitting owns excellent anti-rust performance.
- 3.Standard metric thread on this 90 elbow hydraulic adapter perfectly matches global metric tubing and hydraulic equipment ports.
- 4.Compact 90° angle design of metric 74 cone seal connector changes pipeline direction to save installation space effectively.
- 5.Pehel supports OEM customization for this zinc plated carbon steel hydraulic joint, supplying multiple metric sizes for diverse machinery.
