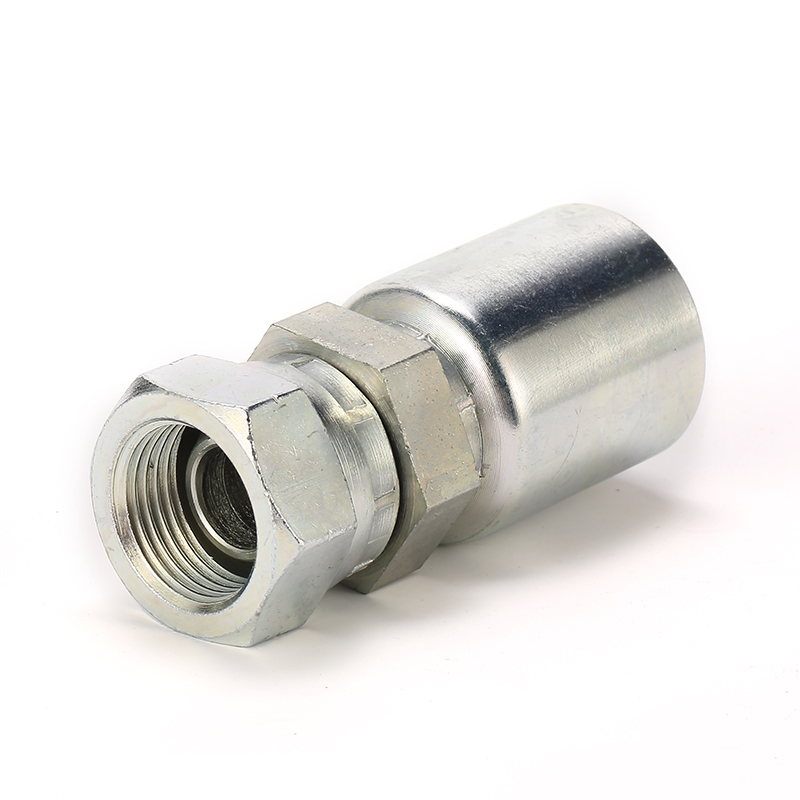

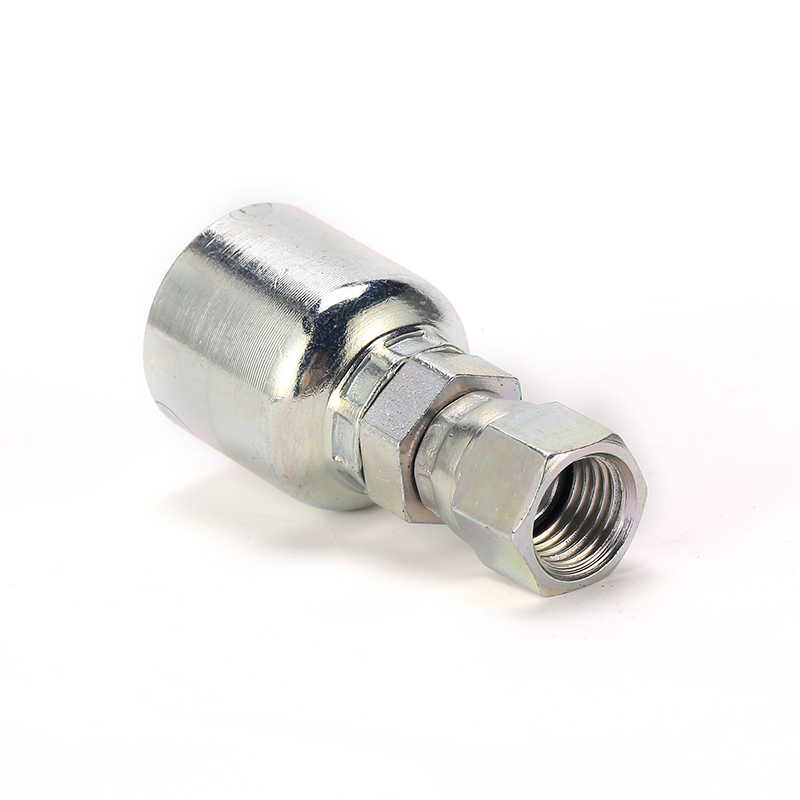

JIC MALE 74 CONE/METRIC FEMALE 60 CONE

PEHEL Hydraulic Model: 2JM

QTY:

  • You May Also Like

  • PART NO. THREAD DIMENSIONS
    E F A B L S1 S2
    2JM-05-12 1/2"X20 M12X1.5 14 5 31 14 17
    2JM-06-14 9/16"X18 M14X1.5 14.1 5.5 31.6 17 19
    2JM-06-16 9/16"X18 M16X1.5 14.1 5.5 32.1 17 22
    2JM-06-18 9/16"X18 M18X1.5 14.1 5.6 33.1 17 24
    2JM-06-20 9/16"X18 M20X1.5 14.1 6.5 34.6 19 27
    2JM-06-22 9/16"X18 M22X1.5 14.1 6 37.1 22 27
    2JM-08-16 3/4"X16 M16X1.5 16.7 5.5 36.7 22 22
    2JM-08-18 3/4"X16 M18X1.5 16.7 5.6 37.7 22 24
    2JM-08-20 3/4"X16 M20X1.5 16.7 6.5 39.2 22 27
    2JM-08-22 3/4"X16 M22X1.5 16.7 6 39.7 22 27
    2JM-10-16 7/8"X14 M16X1.5 19.3 5.5 39.3 24 22
    2JM-10-18 7/8"X14 M18X1.5 19.3 5.6 40.3 24 24
    2JM-10-20 7/8"X14 M20X1.5 19.3 6.5 41.8 24 27
    2JM-10-22 7/8"X14 M22X1.5 19.3 6 42.3 24 27
    Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
