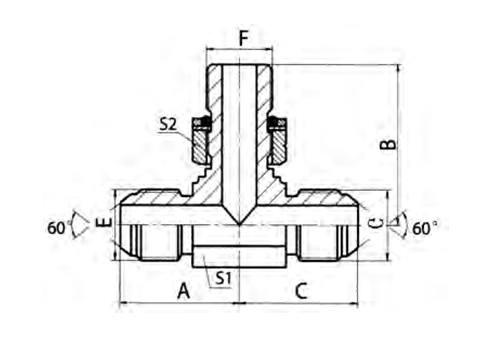

THREAD O-RING DIMENSIONS PART NO. E、G F F A B C S1 S2 AKGK-14-04-14OG M14X1.5 G1/4"X19 O111 26.5 31.3 26.5 14 19 AKGK-14-06-14OG M14X1.5 G3/8"X19 O113 28.5 35.8 28.5 16 22 AKGK-16-06-16OG M16X1.5 G3/8"X19 O113 28 35.8 28 16 22 AKGK-18-06-18OG M18X1.5 G3/8"X19 O113 31 37 31 19 22 AKGK-22-08-22OG M22X1.5 G1/2"X14 O115 35.5 43.2 35.5 22 27 AKGK-24-08-24OG M24X1.5 G1/2"X14 O115 37 46 37 24 27 AKGK-24-12-24OG M24X1.5 G3/4"X14 O119 40 49.3 40 27 32 AKGK-30-12-30OG M30X1.5 G3/4"X14 O119 47.5 53 47.5 30 32 AKGK-33-16-33OG M33X1.5 G1"X11 O217 50 53 50 33 41
PEHEL | JIS Metric Male Tee Hydraulic Hose Adapter | Short Lead-Time
PEHEL Hydraulic Model: PAKGK-OG
QTY:
