Pehel/4K/Carbon Steel Zinc Plating JIS Metric Male 60° Cone Plug/All Sizes Available

Pehel/4K/Carbon Steel Zinc Plating JIS Metric Male 60° Cone Plug/All Sizes Available

PEHEL Hydraulic Model: P4K

QTY:

  • Material: Carbon steel

    Brand: Pehel, OEM

    Color: Silver Zinc plating

    Connector Type: Plug

    Thread Type: JIS metric 60deg cone


    About the item:

    1.‌High Pressure Tolerance‌: Withstands up to 31.5MPa, suitable for heavy-load hydraulic systems.

    2.Chamfered tube entry guides tubing for error-free assembly, reducing installation misalignment that leads to premature seal wear.

    3.Wide operating temperature range from -40℃ to +120℃, stable performance in extreme cold northern mines and high-temperature metallurgy workshops.

  • Specification
  • You May Also Like
  • THREADDIMENSIONS
    PART NO.
    EALS1
    4K-14M14X1.5172317
    4K-16M16X1.5182417
    4K-18M18X1.5182519
    4K-20M20X1.5202822
    4K-22M22X1.5202824
    4K-24M24X1.521.531.527
    4K-30M30X1.5263732
    4K-33M33X1.5304136

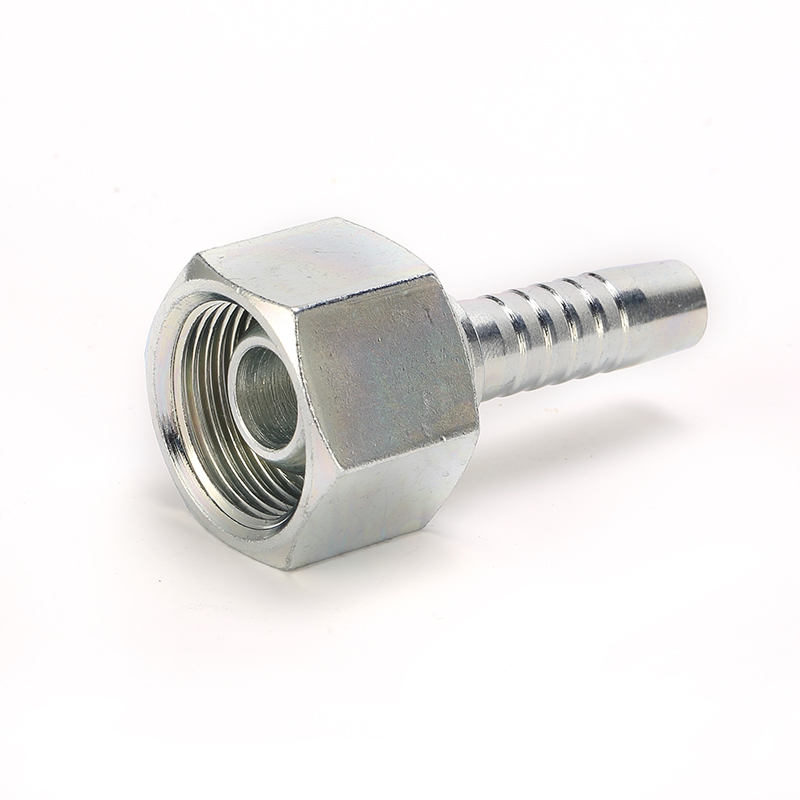

  • Straight female metric multiseal hose fitting
    Details

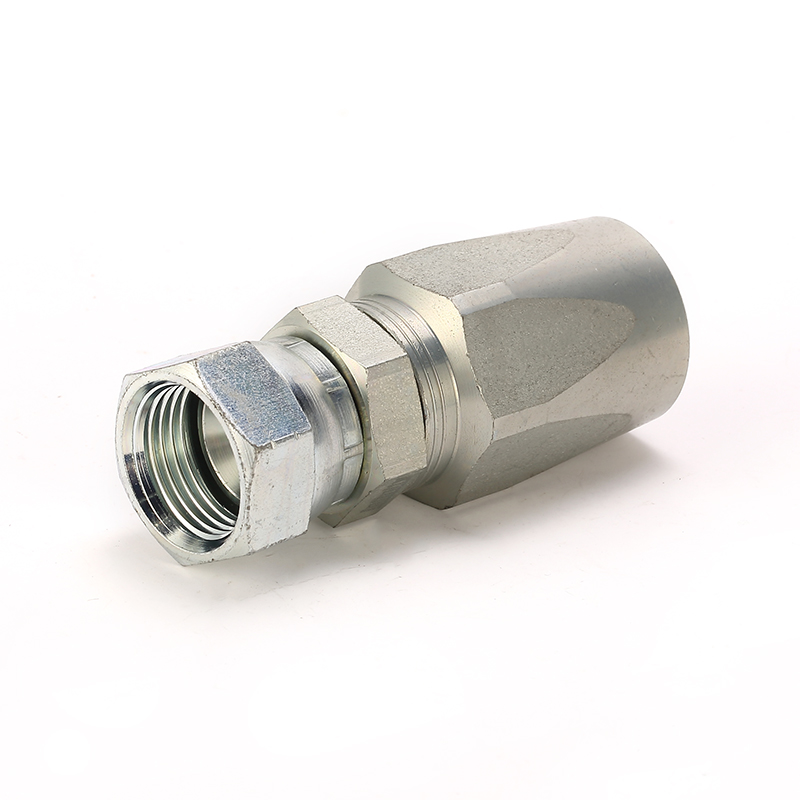

    Straight female jic 74deg cone reusable fitting for R5 hose

    Details

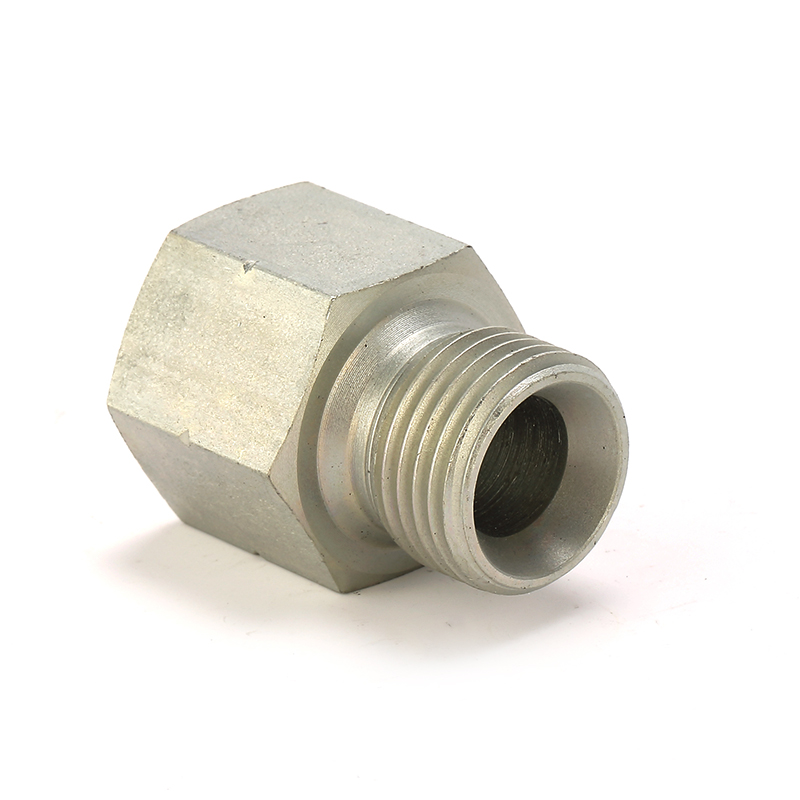

    Straight male bsp 60deg cone-female bsp 60deg cone adapter

    Details

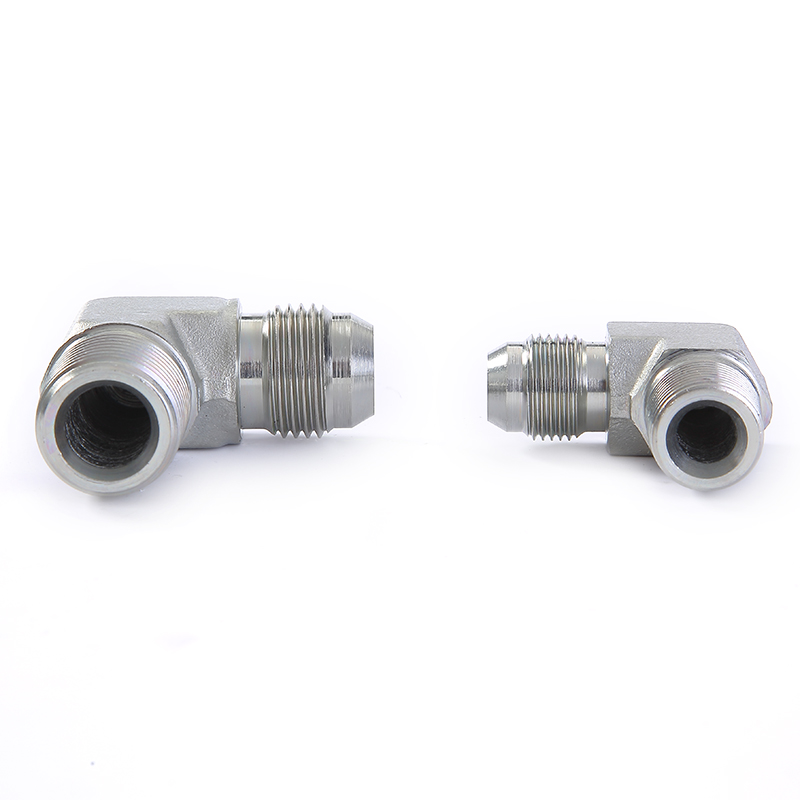

    90deg elbow male jis gas-male bspt adapter
