Pehel/4K/High Quality Male Metric Japanese Standard 60 Cone Seal Plug

Pehel/4K/High Quality Male Metric Japanese Standard 60 Cone Seal Plug

PEHEL Hydraulic Model: 4K

QTY:

  • Material: Carbon steel

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: Plug

    Thread Type: Japanese Metric 60 Cone


    About the item:

    1.‌High Pressure Tolerance‌: Withstands up to 31.5MPa, suitable for heavy-load hydraulic systems.

    2.Interchangeable with ISO 8434 standard counterparts, no custom modification required for direct replacement in existing hydraulic systems.

    3.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.

  • Specification
  • You May Also Like
  • PART NO. THREAD DIMENSIONS
    E A L S1
    4K-14 M14X1.5 17 23 19
    4K-16 M16X1.5 18 24 19
    4K-18 M18X1.5 18 26 22
    4K-20 M20X1.5 20 28 24
    4K-22 M22X1.5 20 30 27
    4K-24 M24X1.5 21.5 32.5 32
    4K-30 M30X1.5 26 37 36
    4K-33 M33X1.5 30 41 41

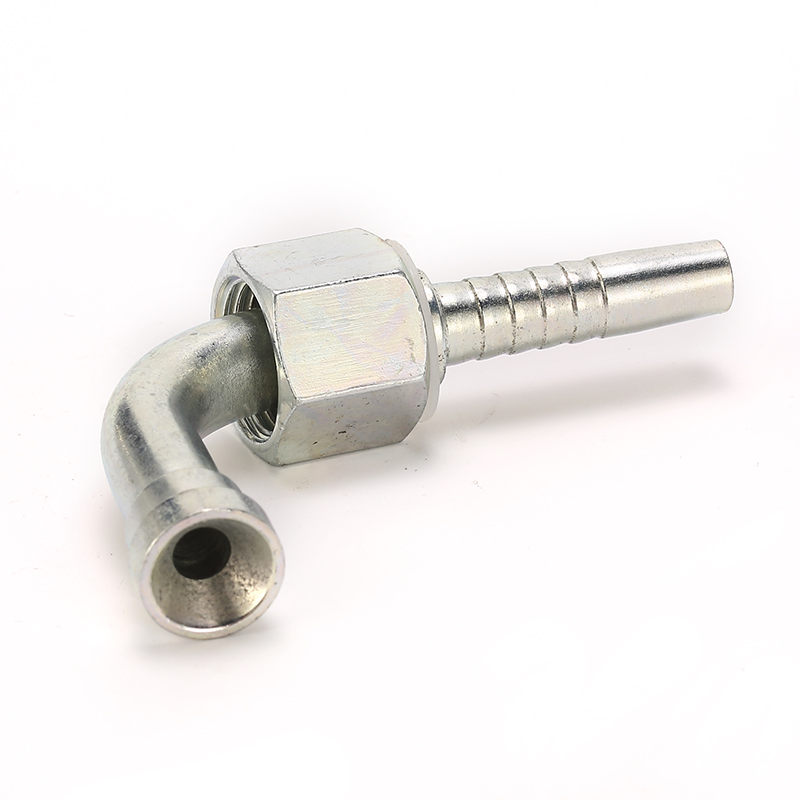

  • 90 elbow female metric 74 cone seal hose fitting
    Details

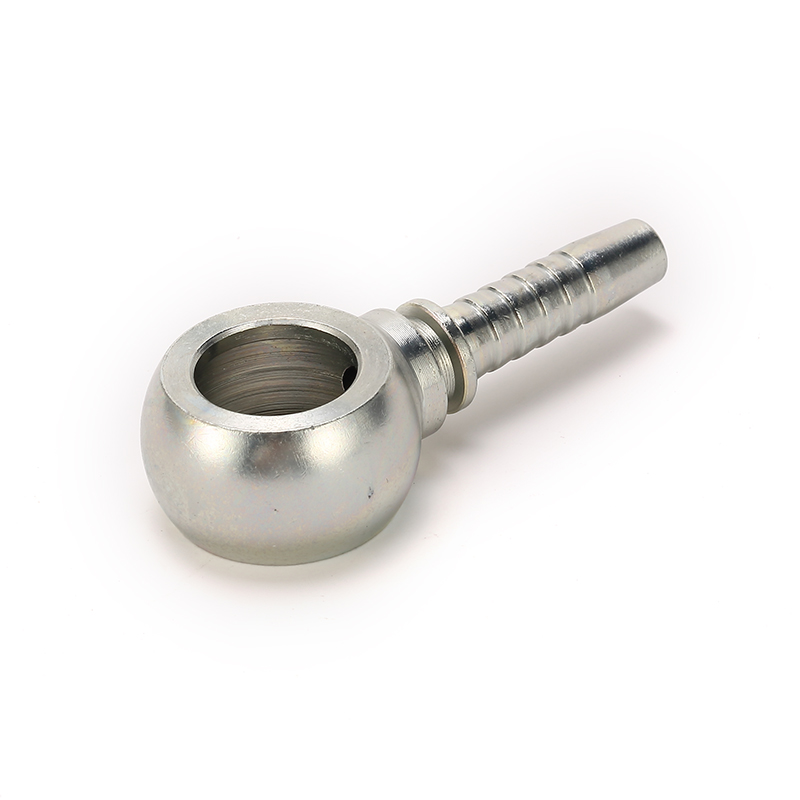

    Hydraulic bsp straight banjo fitting

    Details

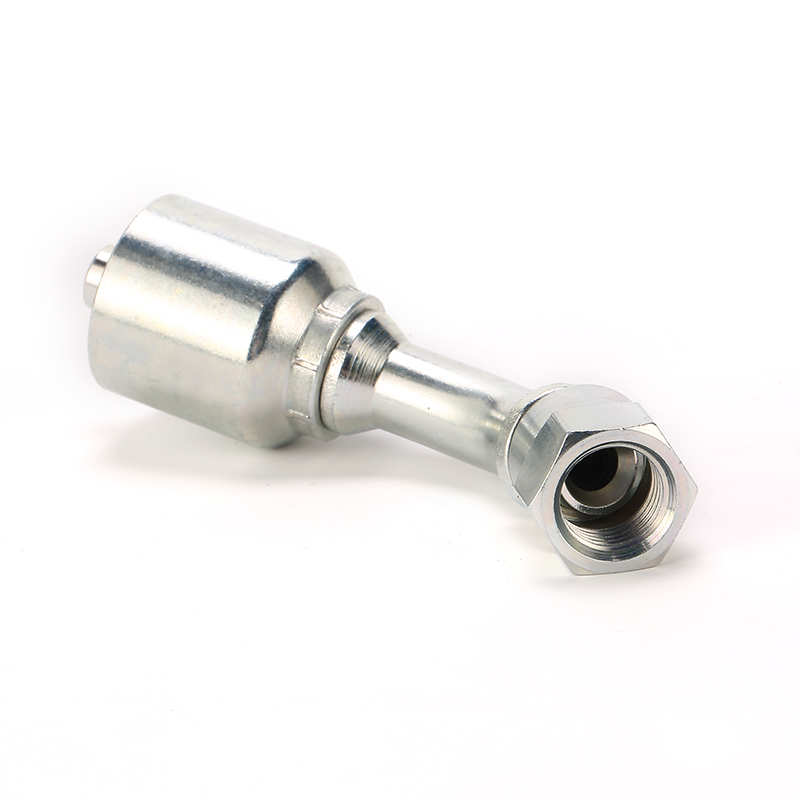

    45 elbow female JIC one piece fitting

    Details

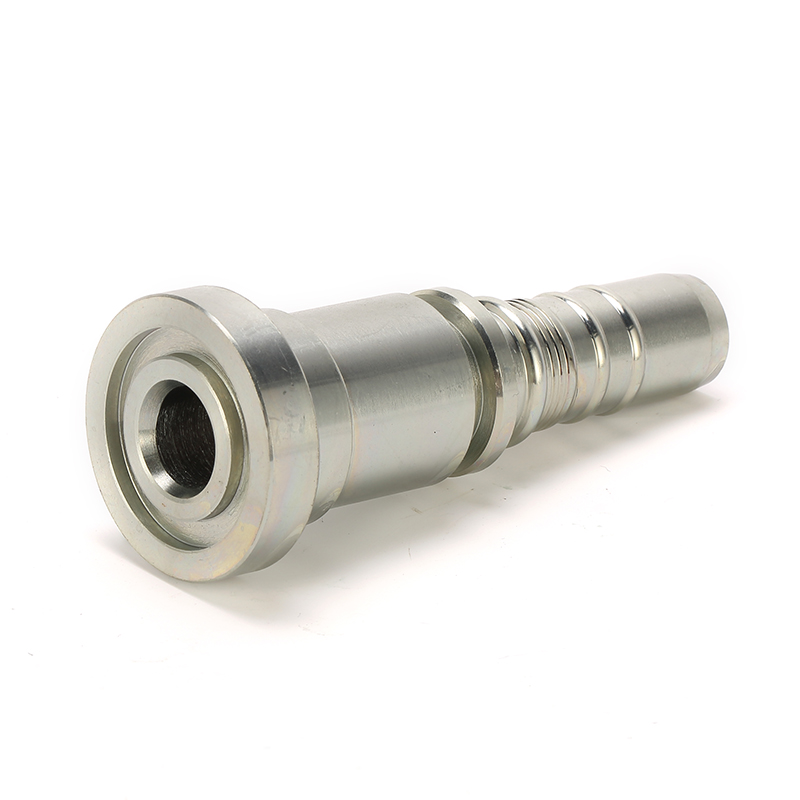

    6000psi straight interlock flange fitting
