PART NO. E (THREAD E) HOSE BORE (DN) HOSE BORE (DASH) DIMENSIONS (A) DIMENSIONS (B) DIMENSIONS (H) DIMENSIONS (S1) Per hundred weight Weight per case 26741-06-06PK 9/16"X18 10 6 70 48 20 19 10.1 50-80 26741-08-06PK 3/4"X16 10 6 70 48 21 24 12 60 26741-08-08PK 3/4"X16 12 8 88 59.5 23.5 24 17.2 40 26741-10-10PK 7/8"X14 16 10 108 70.9 25 27 17 50 26741-12-12PK 1.1/16"X12 20 12 118 78.4 30 32 33.2 40 26741-16-16PK 1.5/16"X12 25 16 132.5 87.5 31.5 38 58.5 25 26741-20-20PK 1.5/8"X12 32 20 145.8 98.8 37 50 15 26741-24-24PK 1.7/8"X12 40 24 155 116.6 43 60 12 26741-32-32PK 2.1/2"X12 50 32 184.5 137.3 51 73 8/10
PEHEL/45° JIC Female 74° Cone Seat
PEHEL Hydraulic Model: P26741-PK
QTY:

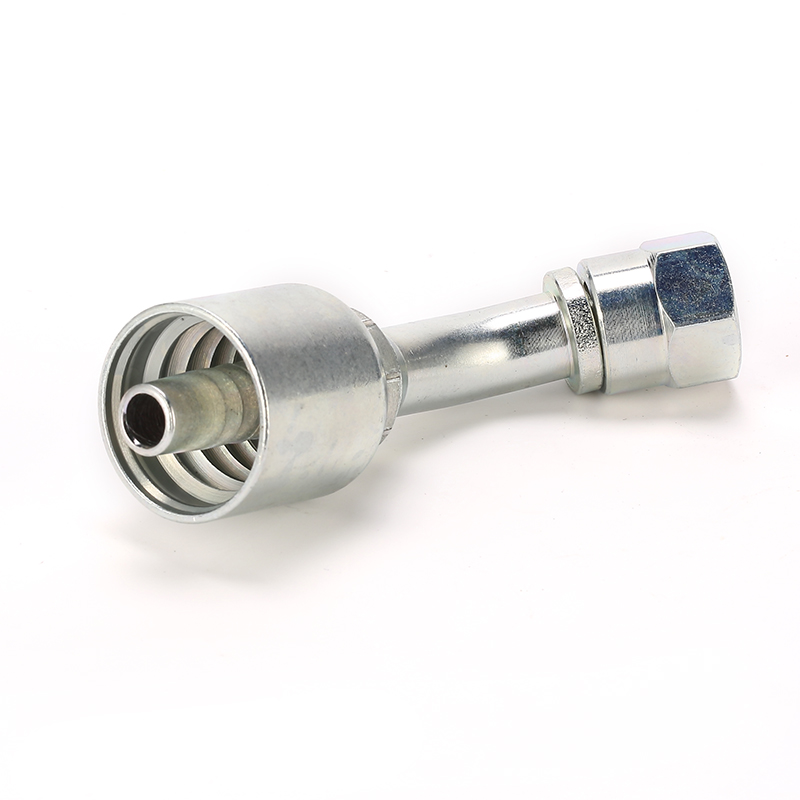

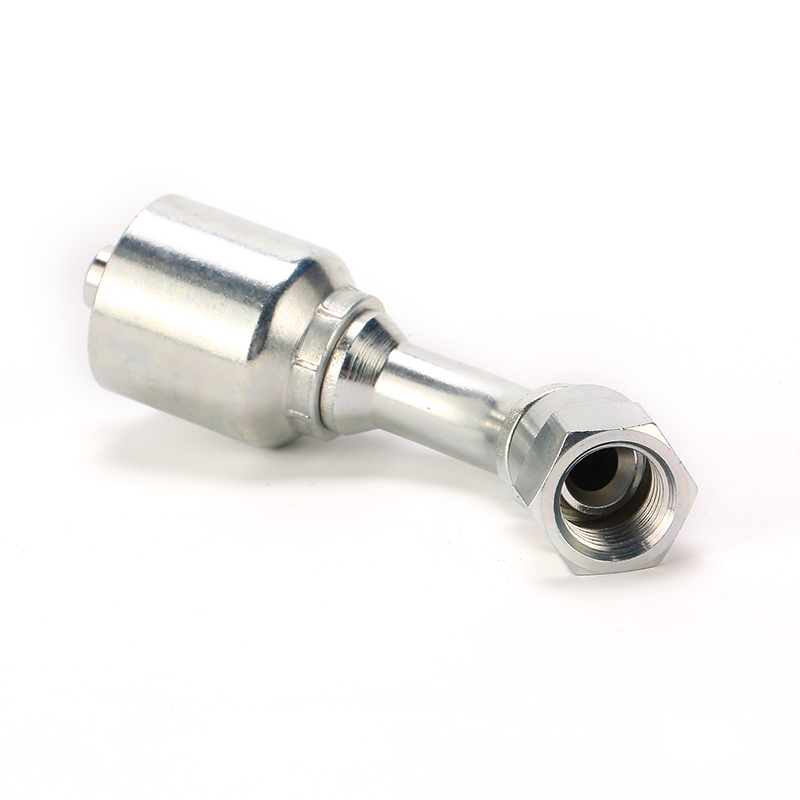

JIC Elbow 45 degree Hydraulic Pipe Fitting 26741 JIC Female Connector Hydraulic Tube Fitting
45° JIC Female 74° Cone Seat
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: JIC FEMALE 74 CONE
About the item:
1. Model 26741‑PKAST is one‑piece 45‑degree elbow hose fitting with JIC female 74° cone seat per SAE J514 standard.
2. 74‑degree metal‑to‑metal cone sealing delivers reliable leak‑proof performance for high‑pressure hydraulic circuits.
3. Complete size selection covers multiple UNF threads and hose bore DN6‑DN50 for various crimping assemblies.
4. Integrated one‑piece carbon‑steel structure avoids sleeve detachment, with zinc‑plated finish for corrosion resistance.
5. Compact angled layout saves installation space, widely adopted for construction and mobile hydraulic machinery.
