SAE 100R6 Low Pressure Hydraulic Hose

PEHEL Hydraulic Model: SAE 100R6 / EN854 R6

QTY:

Material:Fiber and Rubber
Brand:Pehel, OEM
Inner Tube: Oil resistant synthetic nitrile-butadiene rubber
Reinforcement: single layer of high strength fiber braided
Cover: oil and weather resistant synthetic rubber
Application:Petroleum base and water base hydraulic fluids
Surface: Wrapped surface, smooth surface
Temperature Range:-40℃~+100℃
About the item:
1.Complies with both SAE 100R6 and EN854 R6 specifications, ensuring global compatibility and reliable performance in hydraulic systems.
2.Designed specifically for low pressure return lines and suction applications, offering flexibility without compromising durability.
3.Features multiple layers of textile braid reinforcement, providing excellent burst strength and kink resistance for long service life.
4.Constructed with synthetic oil resistant rubber, this hose withstands petroleum-based hydraulic fluids and lubricants effectively.
5.As a Pehel brand product, each hose undergoes rigorous pressure testing to meet industry standards for flexible tubing.

Metric Size (mm)	Inch Size (Inches)	SAE Dash Size	I.D Standard(mm) Min	I.D Standard(mm) Max	I.D Lenflex(mm) Min	I.D Lenflex(mm) Max	O.D Standard(mm) Min	O.D Standard(mm) Max	O.D Lenflex(mm) Min	O.D Lenflex(mm) Max	Max.W.P (Mpa)
5	3/16	03	4.2	5.4	4.8	5.4	10.3	11.9	10.9	11.9	3.5
6.3	1/4	04	5.6	7.2	6.1	6.9	11.9	13.5	12.5	13.5	2.8
8	5/16	05	7.2	8.8	7.7	8.4	13.5	15.1	14.1	15.1	2.8
10	3/8	06	8.7	10.3	9.5	10.3	15.1	16.7	15.7	16.7	2.8
12.5	1/2	08	11.9	13.5	12.6	13.4	19.0	20.6	19.4	20.4	2.8
*14	9/16	09	——	——	13.8	14.6	——	——	21.0	22.0	2.8
16	5/8	10	15.1	16.7	15.8	16.6	22.2	23.8	22.8	23.8	2.4
19	3/4	12	18.3	19.9	18.8	19.8	25.4	27.8	26.4	27.4	2.1
*22	7/8	14	——	——	21.8	22.8	——	——	29.7	30.7	2.1
*25	1	16	——	——	24.8	26.0	——	——	33.5	34.5	2.0
*29	1-1/8	18	——	——	28.0	29.2	——	——	37.4	38.6	2.0
*31.5	1-1/4	20	——	——	31.6	32.8	——	——	43.0	45.0	2.0
*35	1-3/8	22	——	——	34.6	35.8	——	——	46.0	48.0	1.8
*38	1-1/2	24	——	——	37.6	38.8	——	——	50.0	52.0	1.5
*45	1-3/4	28	——	——	44.6	45.8	——	——	55.0	57.0	1.5
*51	2	32	——	——	50.6	51.8	——	——	64.0	66.0	1.5
*63	2-1/2	40	——	——	63.6	65.8	——	——	78.0	80.0	1.5
*76	3	48	——	——	75.4	76.8	——	——	90.5	92.5	1.0

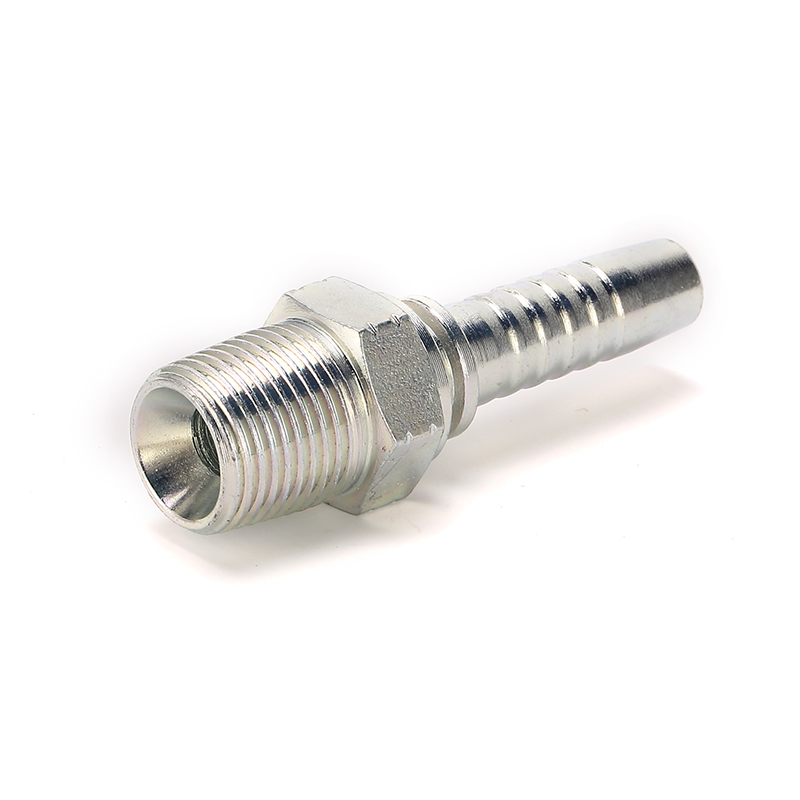

Pehel/p15612/NPT Male 60° Cone Seal
Details

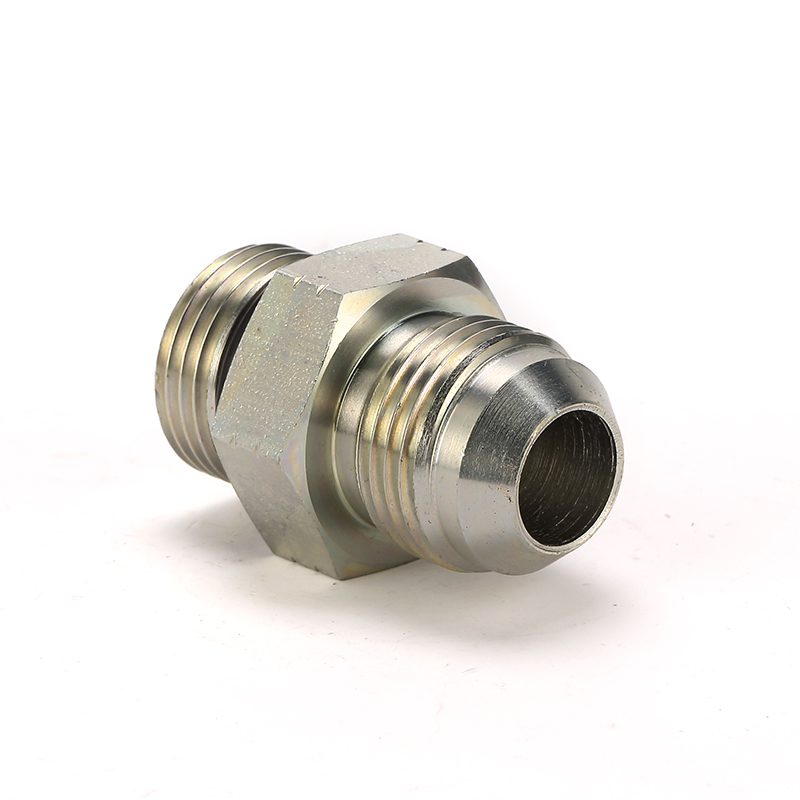

BSP Male Captive Seal Fitting | JIC 74° Cone Male Adapter | Carbon Steel & SS
Details

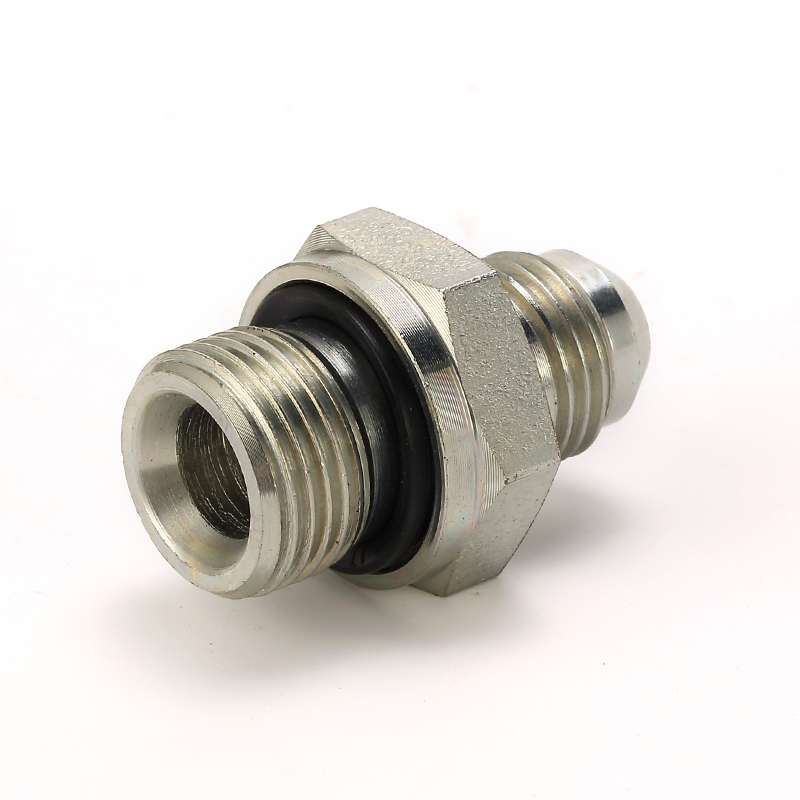

Long JIC to ORB Adapter | 74° Cone Seal Male SAE O-Ring Male Fitting
