Home / Hose Fitting Other Fittings / GB Standard / PEHEL | GB Metric Banjo Hydraulic Hose Fitting | Galvanized Carbon Steel
PEHEL | GB Metric Banjo Hydraulic Hose Fitting | Galvanized Carbon Steel

PEHEL | GB Metric Banjo Hydraulic Hose Fitting | Galvanized Carbon Steel

PEHEL Hydraulic Model: P71011

QTY:

71011 Metric Banjo, JB Standard

  • Material: Carbon steel, Stainless Steel, Aluminium, Brass

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: Straight

    Thread Type: Hydraulic Hose Fitting

  • 1. Stainless Steel & Carbon Steel Material Available

    2. Custom non-standard connectors available, material test reports provided

    3. Tested before delivery, extremely low defective rate

    4. In Stock, Fast Delivery, Custom Service Supported

  • Specification
  • You May Also Like

  • PART NO.

    		BOLT HOSE BORE DIMENSIONS
    DN DASH d D H
    P71011-10-04 M10X1 6 04 10 22 13
    -10-05 M10X1 8 05 10 22 13
    -10-06 M10X1 10 06 10 22 13
    -12-06 M12X1.5 10 06 12 26 15
    -14-04 M14X1.5 6 04 14 28 18
    -14-05 M14X1.5 8 05 14 28 18
    -14-06 M14X1.5 10 06 14 28 18
    -14-08 M14X1.5 12 08 14 28 18
    -16-05 M16X1.5 8 05 16 32 18
    -18-06 M18X1.5 10 06 18 36 22
    -18-08 M18X1.5 12 08 18 36 22
    -18-10 M18X1.5 16 10 18 36 22
    -20-08 M20X1.5 12 08 20 36 22
    -22-10 M22X1.5 16 10 22 46 30
    -22-12 M22X1.5 20 12 22 46 30
    -27-10 M27X2 16 10 27 56 36
    -27-14 M27X2 22 14 27 56 36
    -27-16 M27X2 25 16 27 56 36

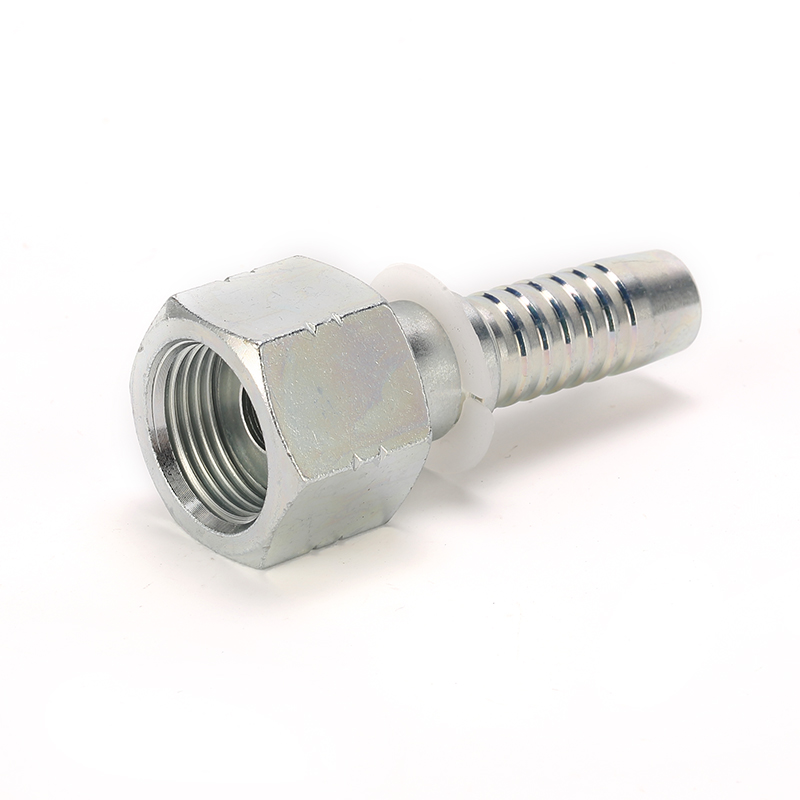

  • Hydraulic ORFS Female Flat Seat Fitting
    Details

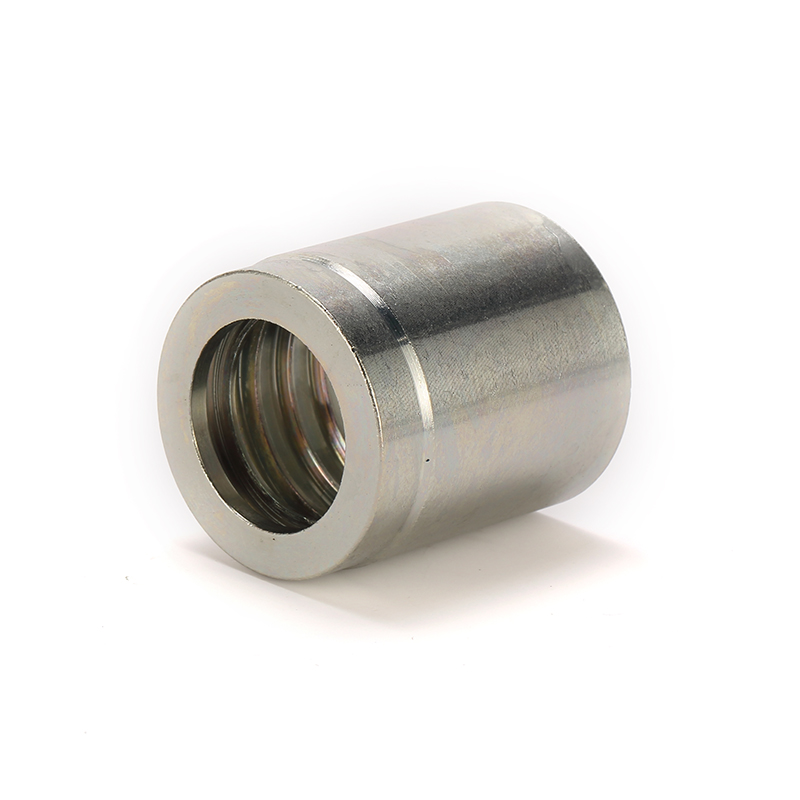

    1 Wire Hydraulic  Hose Ferrule

    Details

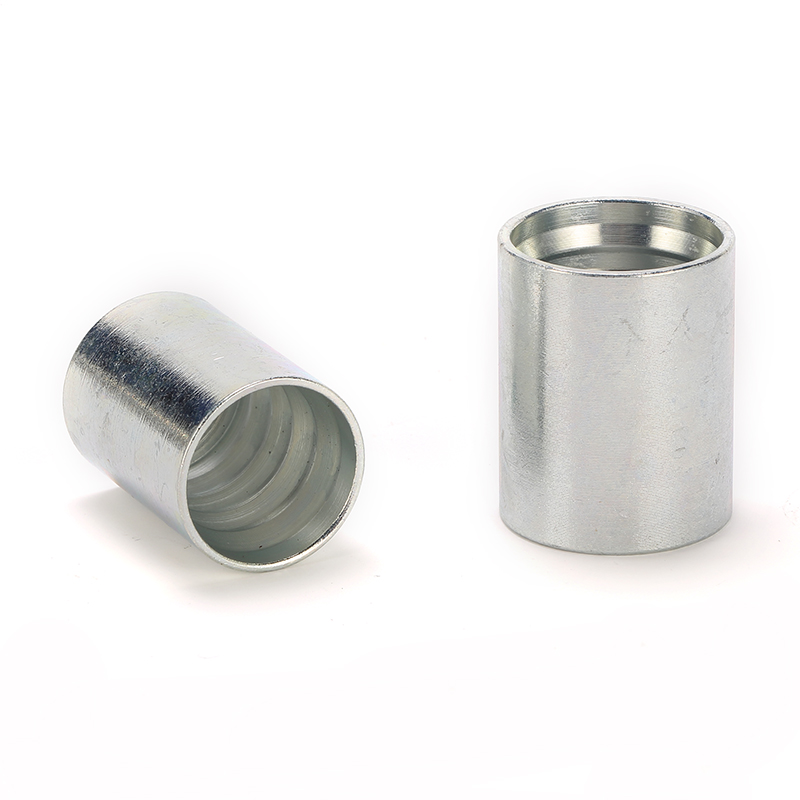

    SAE 100 R2AT/EN 853 2SN Ferrule

    Details

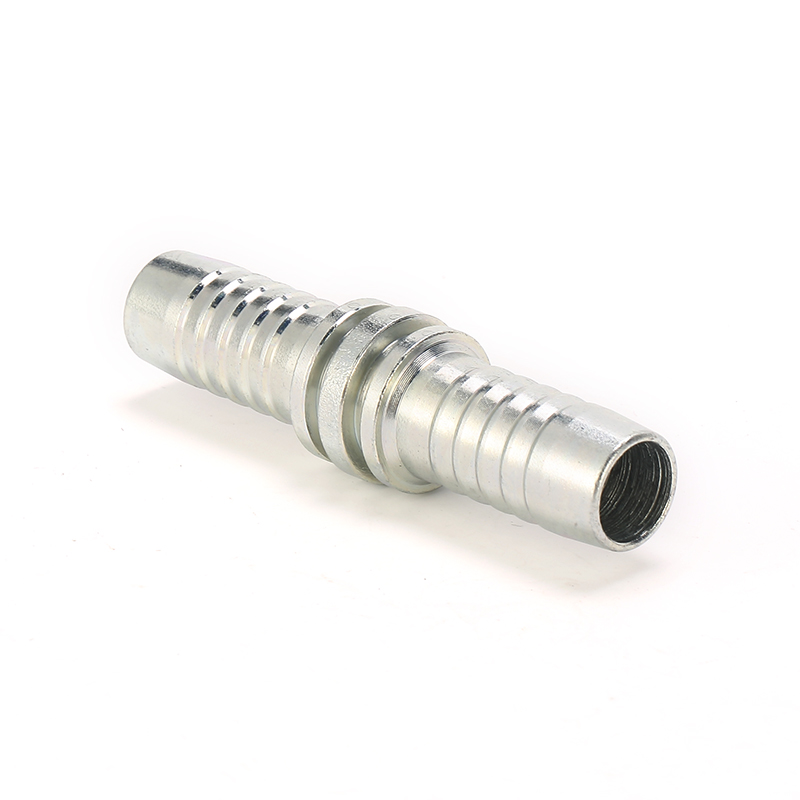

    Double connector/Hydraulic hose fittings
