PART NO.
THREAD E
HOSE BORE
DIMENSIONS
DN
DASH
A
C
H
S1
S2
29641D-04-04
G1/4"X19
6
4
43.5
9
21.3
19
19
29641D-06-06
G3/8"X19
10
6
50
9.5
24.6
22
22
29641D-08-08
G1/2"X14
12
8
62.5
11.3
27.5
27
27
29641D-12-12
G3/4"X14
20
12
81
13
33.9
32
32
29641D-16-16
G1"X11
25
16
87.7
14
36
41
41
29641D-20-20
G1.1/4"X11
32
20
107.3
15.5
46.5
50
50
29641D-24-24
G1.1/2"X11
40
24
122.8
17.5
50.8
55
55
29642D-32-32
G2"X11
50
32
143
24
60
70
70
NOTE:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 29642-XX-XX。

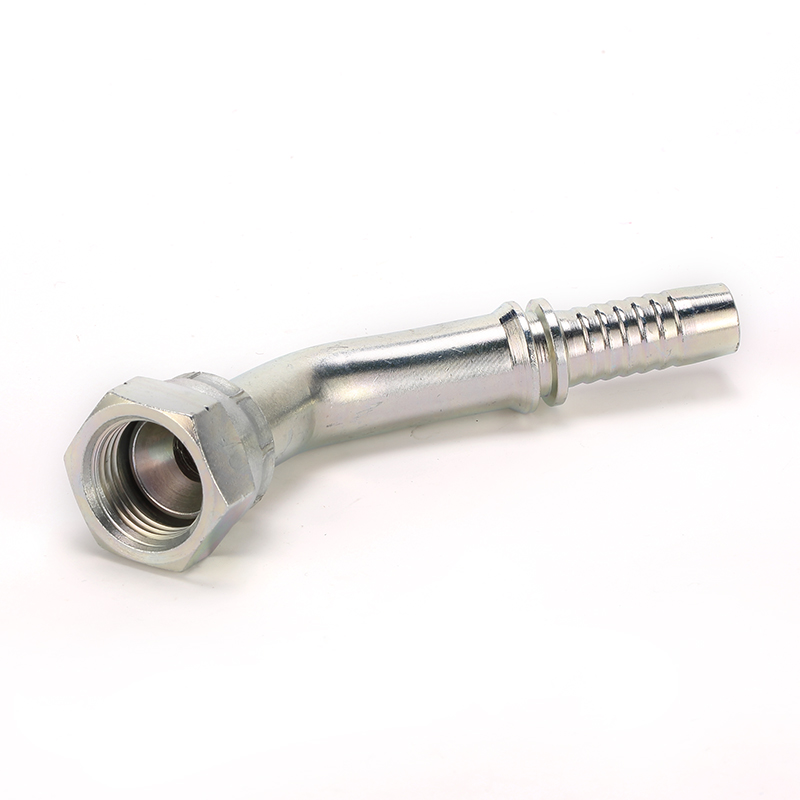

Pehel 45 Degree Elbow JIS Gas Female 60° Cone Seat Hydraulic Hose Fitting
PEHEL Hydraulic Model: P29641D
QTY:
BSP 45° Elbow Female Fittings 60° Cone
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- 1.Made of carbon steel or stainless steel with silver zinc plating, this JIS B8363 hydraulic elbow fitting delivers excellent rust and corrosion resistance.
- 2.Precision machined 60° cone sealing seat forms tight metal-to-metal seal, zero leakage for hydraulic and gas fluid transmission.
- 3.Compact 45° elbow structure saves installation space, this JIS gas thread hose connector fits narrow machinery pipeline layouts.
- 4.Support Pehel brand stock supply and full OEM customization, all standard sizes of 45° JIS Gas Female 60° Cone Seat available.
- 5.Integrated swaged crimp end locks hydraulic hose firmly, this 60 degree cone seat hydraulic joint resists vibration and frequent disassembly.
