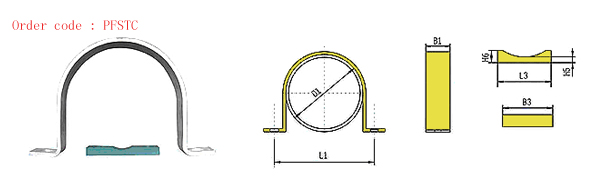

flat steel tube clamp: 4 models for choice
clamp Tube D
Flat steel hoop F B U-steel Plastic pads P U K mm Out inch L1 B1
Flat steelB2×H4 L3 B3 H5 n
H640 48.3
11/2 76 20×3 50×38 24 35 5 8 50 57 85 38 50 10 60.3 2 88 65 76.1 21/2 104 80 88.9 3 122 40×4 80×45 75 70 8 17 100 108 140 114.3 4 147 125 133 165 139.7 5 172 150 159 201 40×6 140 75 26 168.3 6 211 175 193.7 236 200 216 260 219.1 8 261 250 267 325 40×8 273 10 330 300 318 375 220 32 323.9 12 382 350 355.6 14 420 60×8 100×50 220 75 8 32 368 430 400 406.4 16 470 419 482 457 18 520 500 508 20 570 521 585
PEHEL / PFSTC / Hydraulic Tube Clamp Carbon Steel Double Bolt Pipe Clamp
PEHEL Hydraulic Model: Flat Steel Tube Clamp PFSTC
QTY:
Hydraulic Tube Clamp Carbon Steel Double Bolt Pipe Clamp Duty Quick Two‑bolt Installation
Material: Carbon steel
Surface Treatment: White Zinc Plating
Brand: PEHEL, OEM
Color: Silver
1. PEHEL tube clamp securely fastens hydraulic pipes and hoses, preventing abrasion from friction and machine vibration.
2. Robust carbon steel body with zinc‑plated coating resists rust and ensures durable performance in harsh worksites.
3. Precision‑engineered rubber insert cushions tubes, absorbing shock loads and reducing system noise effectively.
4. Universal design fits standard pipe diameters 6–42mm, compatible with DIN 3015 and SAE J1029 mounting standards.
5. Quick two‑bolt installation enables fast maintenance and replacement, minimising downtime for hydraulic repairs.
