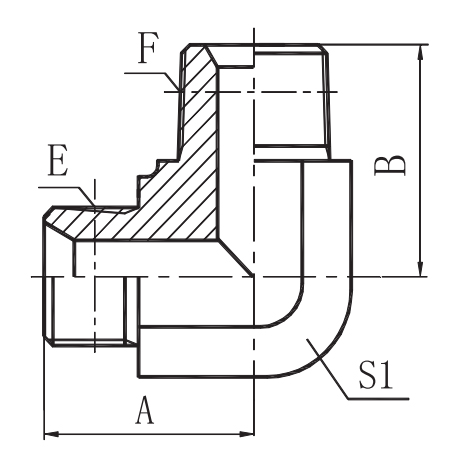

THREAD DIMENSIONS PART NO. E F A B S1 1T9-02SP R1/8"X28 R1/8"X28 21 21 11 1T9-02-04SP R1/8"X28 R1/4"X19 23.5 25.5 14 1T9-04SP R1/4"X19 R1/4"X19 25.5 25.5 14 1T9-04-06SP R1/4"X19 R3/8"X19 26.5 28.5 16 1T9-04-08SP R1/4"X19 R1/2"X14 30.5 36 22 1T9-06SP R3/8"X19 R3/8"X19 28.5 28.5 16 1T9-06-08SP R3/8"X19 R1/2"X14 32.5 36 22 1T9-08SP R1/2"X14 R1/2"X14 36 36 22 1T9-08-12SP R1/2"X14 R3/4"X14 39.5 43.5 27 1T9-12SP R3/4"X14 R3/4"X14 43.5 43.5 27 1T9-12-16SP R3/4"X14 R1"X11 47.5 50 33 1T9-16SP R1"X11 R1"X11 50 50 33 1T9-16-20SP R1"X11 R1.1/4"X11 56.5 57.5 41 1T9-20SP R1.1/4"X11 R1.1/4"×11 57.5 57.5 41 1T9-24SP R1.1/2"X11 R1.1/2"X11 62.5 62.5 48 1T9-32SP R2"X11 R2"X11 68 68 63
PEHEL/90° ELBOW JIC MALE 74° CONE / BSPT MALE

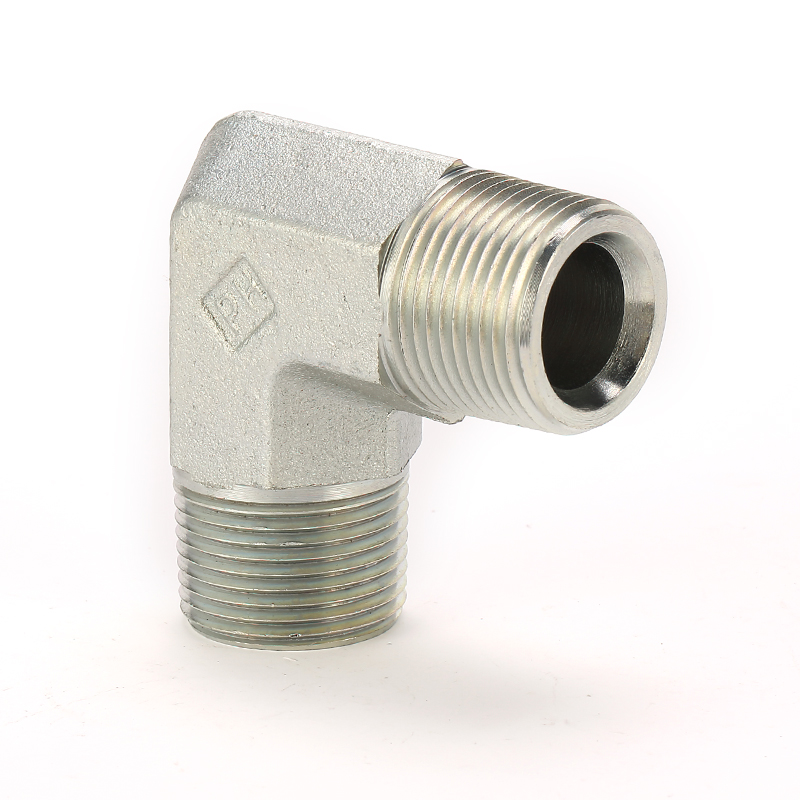

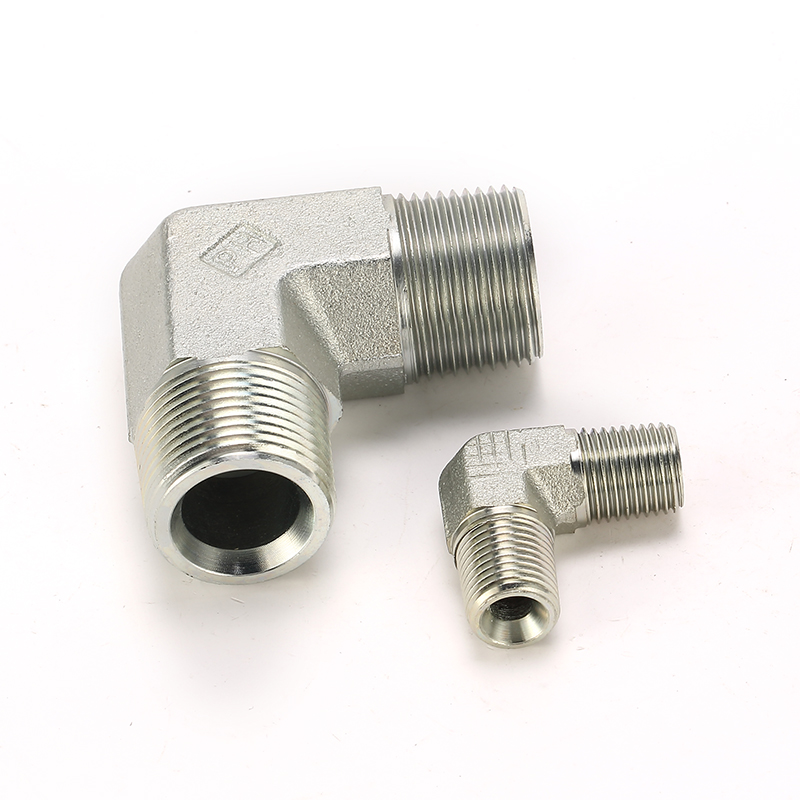

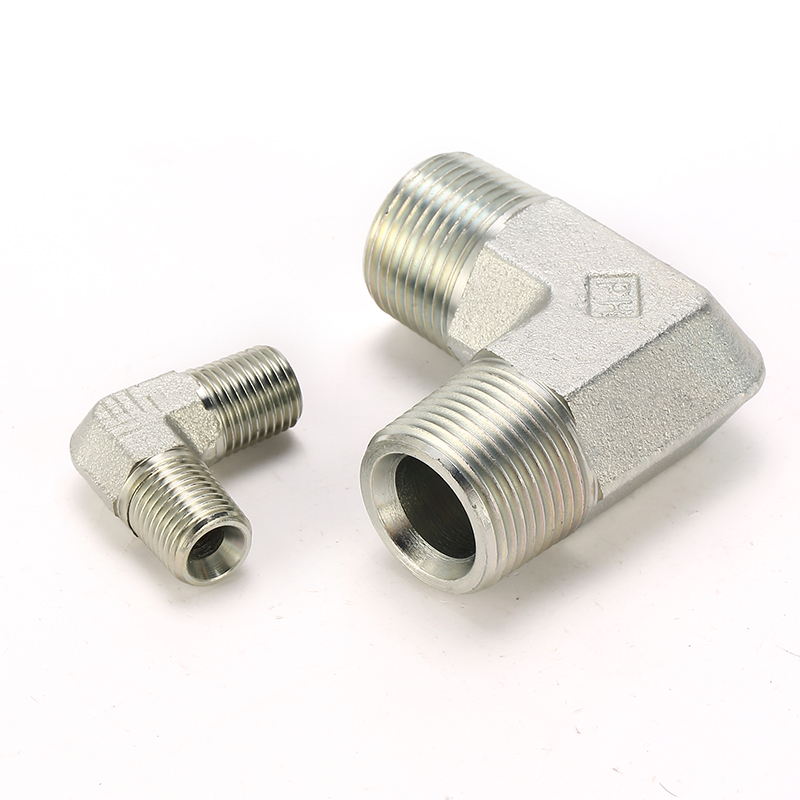

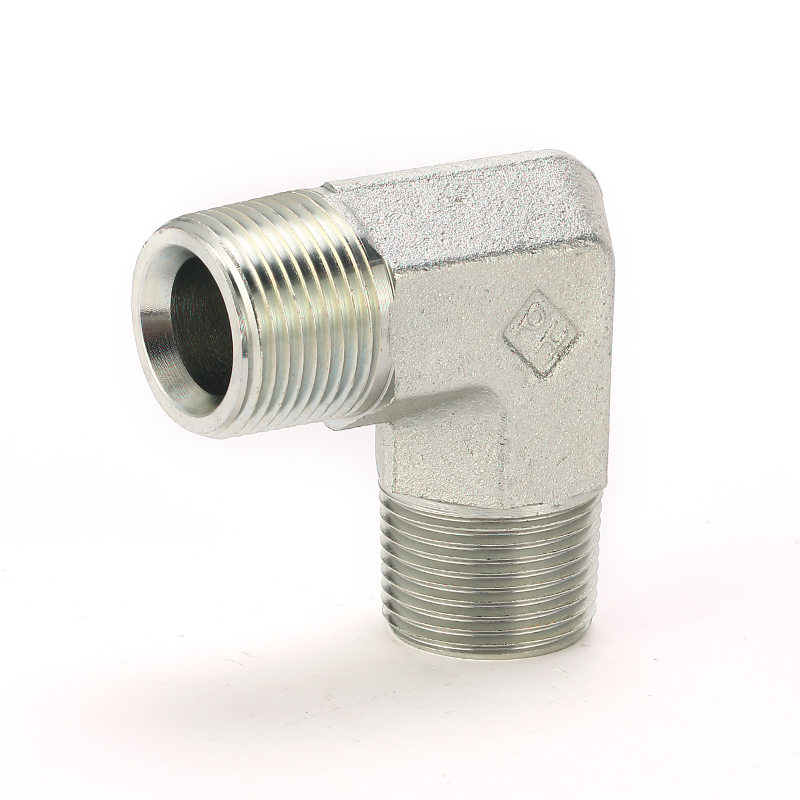

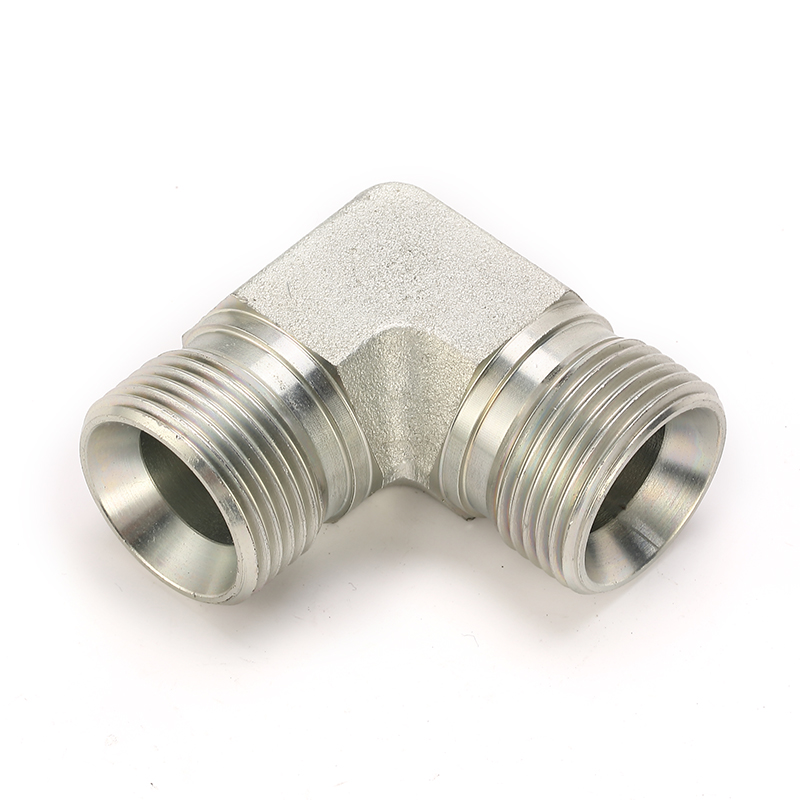

PEHEL Hydraulic Model: P1T9-SP
QTY:
90° ELBOW JIC MALE 74° CONE / BSPT MALE
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type 1: 90° ELBOW JIC MALE 74° CONE
Thread Type 2: BSPT MALE
About the item:
1. JT9‑SP is 90‑degree elbow hydraulic adapter with JIC male 74° cone and BSPT male tapered thread.
2. 74‑degree metal‑to‑metal cone sealing complies with SAE J514; BSPT taper thread delivers reliable leak‑proof connection.
3. Rich thread options cover common UNF JIC and R1/8"‑R2" BSPT sizes for cross‑standard pipeline transition.
4. Precisely CNC‑machined carbon‑steel body with zinc‑plated finish, ensuring good interchangeability and corrosion resistance.
5. Right‑angle layout optimizes piping routing, widely used for industrial and mobile heavy‑duty hydraulic machinery.
