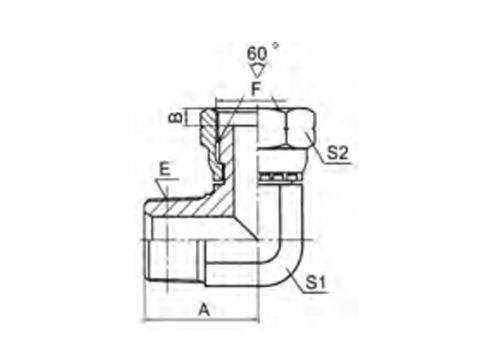

THREAD DIMENSIONS PART NO. E F A B S1 S2 2NB9-02 Z1/8"X27 G1/8"X28 21 6 11 14 2NB9-04 Z1/4"X18 G1/4"X19 25.5 5 14 19 2NB9-04-06 Z1/4"X18 G3/8"X19 25.5 6.5 14 22 2NB9-06 Z3/8"X18 G3/8"X19 31 6.5 19 22 2NB9-06-04 Z3/8"X18 G1/4"X19 31 5 19 19 2NB9-06-08 Z3/8"X18 G1/2"X14 31 7.8 19 27 2NB9-08 Z1/2"X14 G1/2"X14 37.3 7.8 22 27 2NB9-08-06 Z1/2"X14 G3/8"X19 36.7 6.5 22 22 2NB9-12 Z3/4"X14 G3/4"X14 43.5 10.5 27 32 2NB9-12-08 Z3/4"X14 G1/2"X14 44 7.8 27 27 2NB9-12-16 Z3/4"X14 G1"X11 45 11 30 41 2NB9-16 Z1"X11.5 G1"X11 50 11 33 41 2NB9-16-12 Z1"X11.5 G3/4"X14 50 10.5 33 32 2NB9-20 Z1.1/4"X11.5 G1.1/4"X11 54.5 11.5 41 50 2NB9-24 Z1.1/2"X11.5 G1.1/2"X11 59 12.5 48 55 2NB9-32 Z2"X11.5 G2"X11 73.5 17 63 70
Pehel | P2NB9 | Hydraulic 90° Elbow NPT Male / BSP FEMALE 60° CONE
PEHEL Hydraulic Model: P2NB9
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: NPT/BSP
About the item:
1. Versatile fittings – connect NPT male to BSP female systems seamlessly.
2. NPT male thread – tapered design provides self-sealing, leak-tight connections.
3. BSP female port – parallel (BSPP) or tapered (BSPT) options for flexible sealing.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Easy installation – standard threads allow quick and secure assembly
