PART NO.
THREAD DIMENSIONS E F A S1 L P5BT-04 G1/4"x19 Rc1/4"x19 12 19 33.5 P5BT-04-02 G1/4"x19 Rc1/8"x19 12 19 28 P5BT-06 G3/8"x19 Rc3/8"x19 13.5 22 37.5 P5BT-06-04 G3/8"x19 Rc1/4"x19 13.5 22 35 P5BT-08 G1/2"x14 Rc1/2"x14 16 27 45 P5BT-08-06 G1/2"x14 Rc3/8"x19 16 27 39.5 P5BT-12 G3/4"x14 Rc3/4"x14 18.5 36 49 P5BT-12-08 G3/4"x14 Rc1/2"x14 18.5 32 47.5 P5BT-16 G1"x11 Rc1" x11 20.5 41 57 P5BT-20 G1.1/4"x11 Rc1.1/4"x11 20.5 50 58.5 P5BT-24 G1.1/2"x11 Rc1.1/2"x11 23 55 61

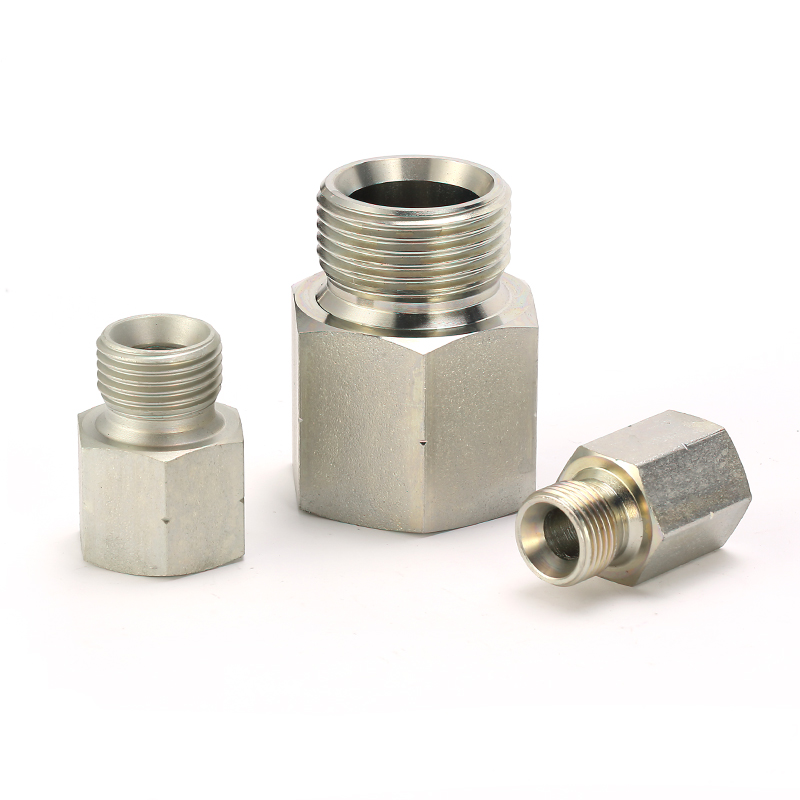

PEHEL/BSP MALE DOUBLE USE FOR 60 DEGREE SEAT OR BONDED SEAL/BSPT FEMALE
PEHEL Hydraulic Model: P5BT
QTY:
BSP MALE DOUBLE USE FOR 60 DEGREE SEAT OR BONDED SEAL/BSPT FEMALE
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: Adapter
Thread Type 1: BSPP MALE 60 CONE
Thread Type 2: BSPT MALE
About the item:
- 1. Model P5BT hydraulic adapter features BSP male dual‑use end and BSPT female tapered thread connection.
- 2. Dual‑sealing design supports either 60‑degree cone seat or bonded seal for flexible assembly options.
- 3. Complete size range covers G1/4"‑G1‑1/2" threads, including multiple reducer specifications.
- 4. Precisely machined carbon‑steel body with standard thread tolerance for good interchangeability.
- 5. Complies with British standard thread specs, widely applied for industrial hydraulic pipeline transition.
