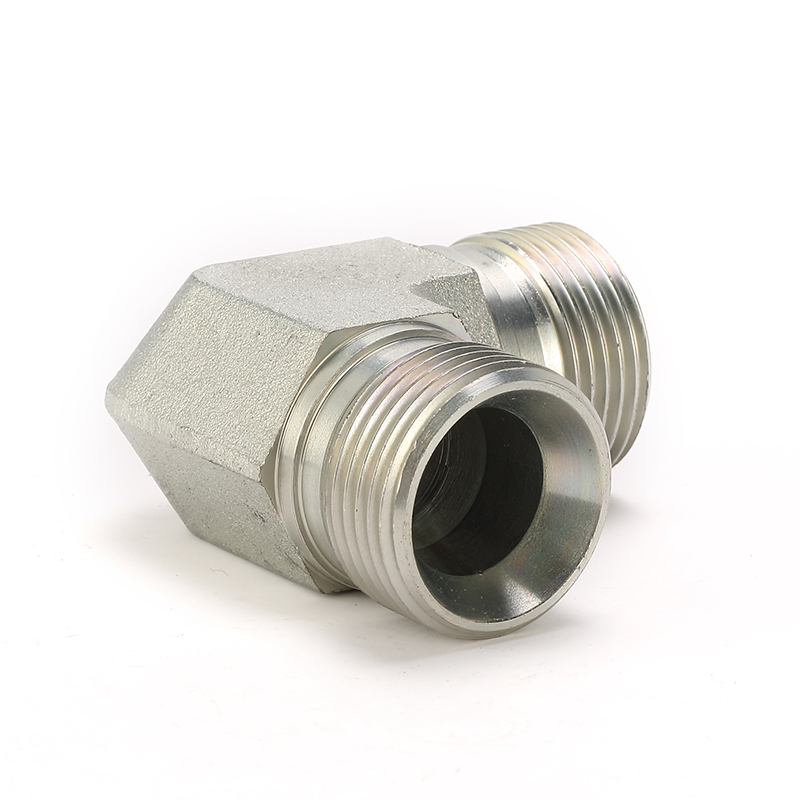

PEHEL | 45 Degree Elbow JIC Male 74 degree Cone-BSPT Male | Perfect Hydraulic Connector

PEHEL | 45 Degree Elbow JIC Male 74 degree Cone-BSPT Male | Perfect Hydraulic Connector

PEHEL Hydraulic Model: 1JT4-SP

QTY:

  • Material: Carbon steel, Stainless Steel, Aluminium, Brass

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: 45 Elbow

    Thread Type: Hydraulic Hose Adapter

  • 1. Direct factory supply with competitive cost

    2. Ample stock, short lead time

    3. Bulk order support, complete fitting kits available

    4. Less frequent maintenance & replacement, lower overall cost

  • Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F L1 L2 S
    P1JT4-04-02SP 7/16"X20 R1/8"X28 21.5 17 11
    P1JT4-04SP 7/16"X20 R 1/4"X19 22.3 21 14
    P1JT4-04-06SP 7/16"X20 R3/8"X19 22.8 23 16
    P1JT4-04-08SP 7/16"X20 R1/2"X14 24.5 29.5 22
    P1JT4-05-02SP 1/2"X20 R1/8"X28 22.3 17.5 14
    P1JT4-05-04SP 1/2"X20 R1/4"X19 22.3 21 14
    P1JT4-05-06SP 1/2"X20 R3/8"X19 22.8 23 16
    P1JT4-06-02SP 9/16"X18 R1/8"X28 22.8 17.5 14
    P1JT4-06-04SP 9/16"X18 R1/4"X19 22.8 21 14
    P1JT4-06SP 9/16"X18 R3/8"X19 23 23 16
    P1JT4-06-08SP 9/16"X18 R1/2"X14 25 29.5 22
    P1JT4-06-12SP 9/16"X18 R3/4"X14 26.5 30.5 27
    P1JT4-08-04SP 3/4"X16 R1/4"X19 26.8 22 19
    P1JT4-08-06SP 3/4"X16 R3/8"X19 26.8 24 19
    P1JT4-08SP 3/4"X16 R1/2"X14 28 29.5 22
    P1JT4-10-06SP 7/8"X14 R3/8"X19 31 25 22
    P1JT4-10-08SP 7/8"X14 R1/2"X19 31 29.5 22
    P1JT4-10-12SP 7/8"X14 R3/4"X14 32 30.5 27
    P1JT4-10-16SP 7/8"X14 R1"X11 34 38 33
    P1JT4-12-08SP 1.1/16"X12 R1/2"X14 35.5 30 27
    P1JT4-12SP 1.1/16"X12 R3/4"X14 35.5 30.5 27
    P1JT4-12-16SP 1.1/16"X12 R1"X11 37.5 38 33
    P1JT4-16-12SP 1.5/16"X12 R3/4"X14 38.5 32.5 33
    P1JT4-16SP 1.5/16"X12 R1"X11 38.5 38 33
    P1JT4-16-20SP 1.5/16"X12 R1.1/4"X11 42 43 41
    P1JT4-20-16SP 1.5/8"X12 R1"X11 43 42 41
    P1JT4-20SP 1.5/8"X12 R1.1/4"X11 43 43 41
    P1JT4-20-24SP 1.5/8"X12 R1.1/2"X11 46 47.5 48
    P1JT4-24-16SP 1.7/8"X12 R1"X11 49 44.5 48
    P1JT4-24-20SP 1.7/8"X12 R1.1/4"X11 49 45.5 48
    P1JT4-24SP 1.7/8"X12 R1.1/2"X11 49 47.5 48

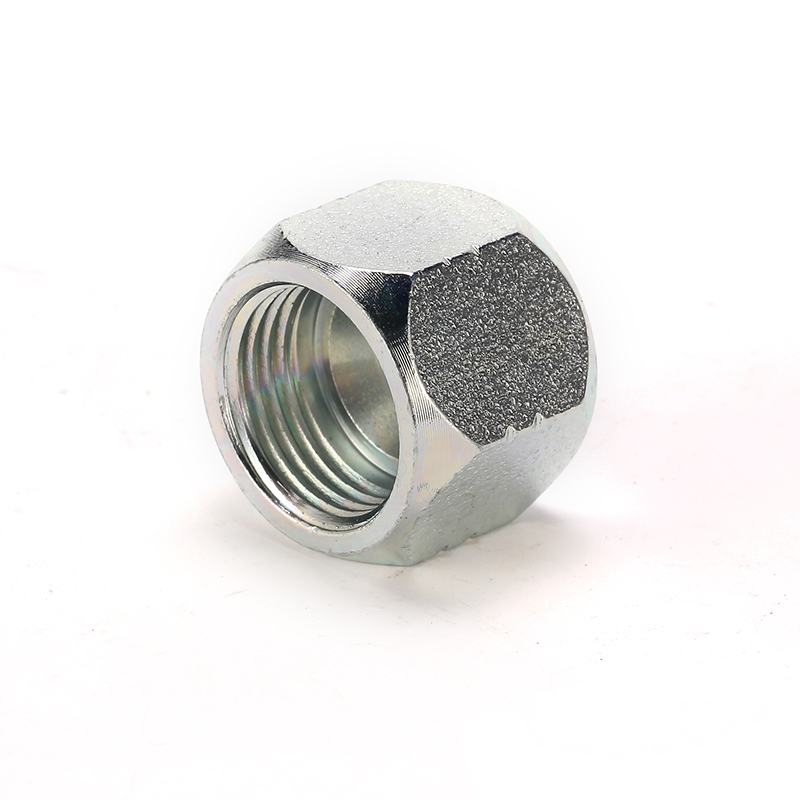

  • JIC THREAD CAP HOSE CONNECTOR
    Details
    MALE BSP HYDRAULIC HOSE ADAPTER
    Details

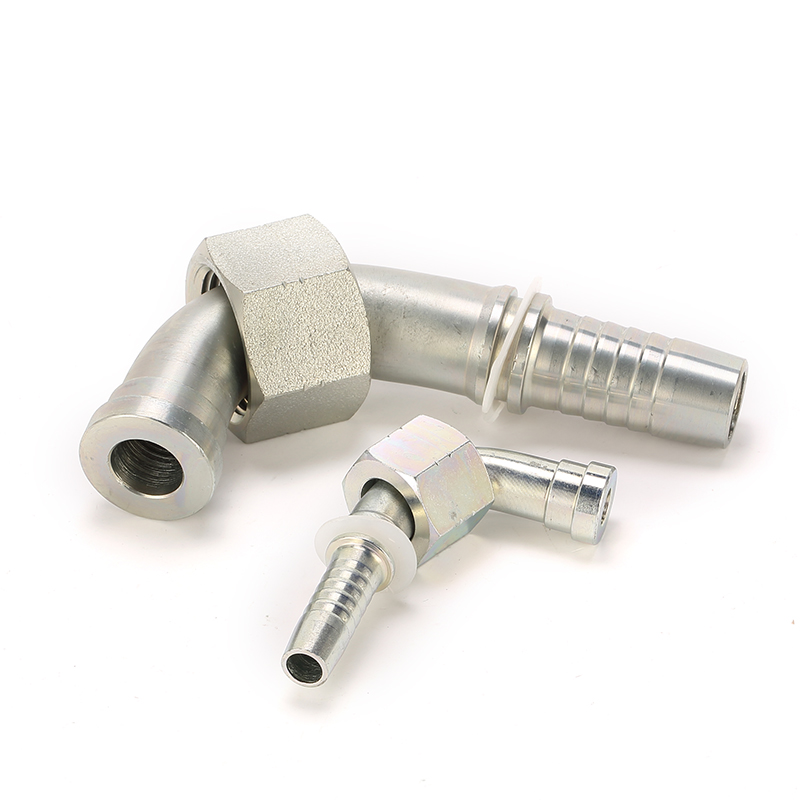

    90 ORFS THREAD HYDRAULIC HOSE FITTING
    Details

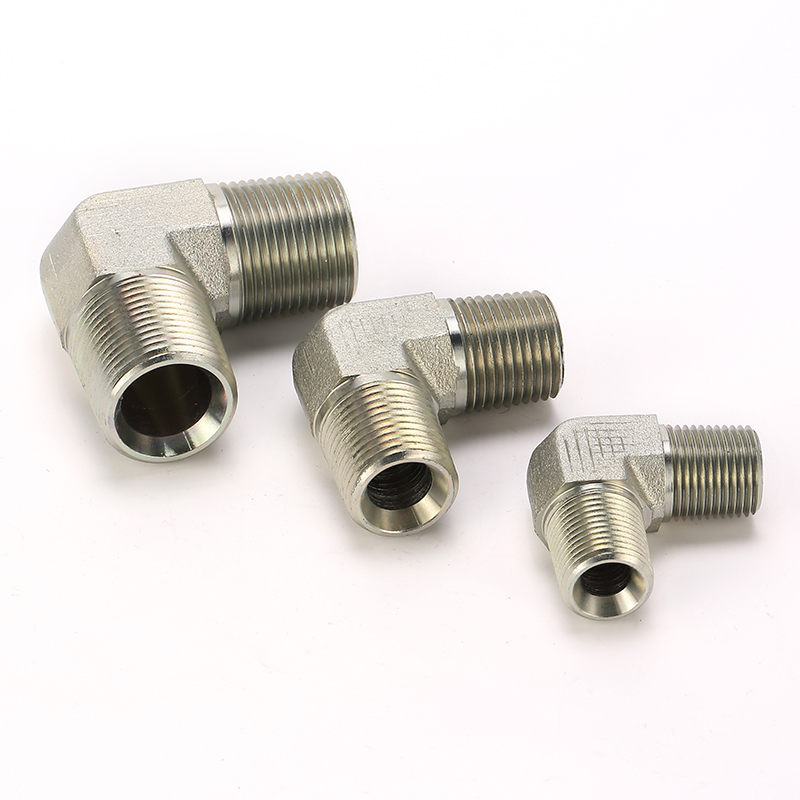

    90 NPT HOSE CONNECTOR
