PART NO. THREAD O-RING DIMENSIONS E F E A L S1 5OT-04 7/16"X20 Rc1/4"X19 8.92X1.83 9.1 30.5 19 5OT-04-02 7/16"X20 Rc1/8"X28 8.92X1.83 9.1 26 17 5OT-06 9/16"X18 Rc3/8"X19 11.89X1.98 9.9 32.5 22 5OT-06-04 9/16"X18 Rc1/4"X19 11.89X1.98 9.9 31.5 19 5OT-08 3/4"X16 Rc1/2"X14 16.36X2.21 11.1 40 30 5OT-08-02 3/4"X16 Rc1/8"X28 16.36X2.21 11.1 22 22 5OT-08-04 3/4"X16 Rc1/4"X19 16.36X2.21 11.1 32.5 22 5OT-08-06 3/4"X16 Rc3/8"X19 16.36X2.21 11.1 34 22 5OT-10-06 7/8"X14 Rc3/8"X19 19.18X2.46 12.7 35.5 27 5OT-10-08 7/8"X14 Rc1/2"X14 19.18X2.46 12.7 41.5 30 5OT-12-06 1.1/16"X12 Rc3/8"X19 23.47X2.95 15.1 30.5 32 5OT-12-08 1.1/16"X12 Rc1/2"X14 23.47X2.95 15.1 42 32 5OT-16 1.5/16"X12 Rc1"X11 29.74X2.95 15.1 51.5 41 5OT-16-08 1.5/16"X12 Rc1/2"X14 29.74X2.95 15.1 42 38 5OT-16-12 1.5/16"X12 Rc3/4"X14 29.74X2.95 15.1 43 38

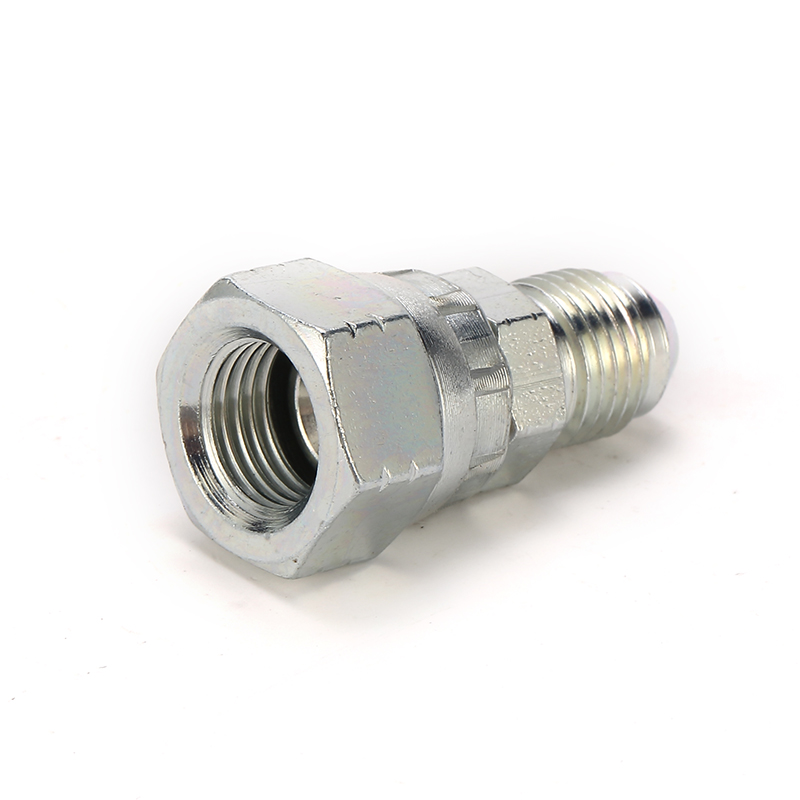

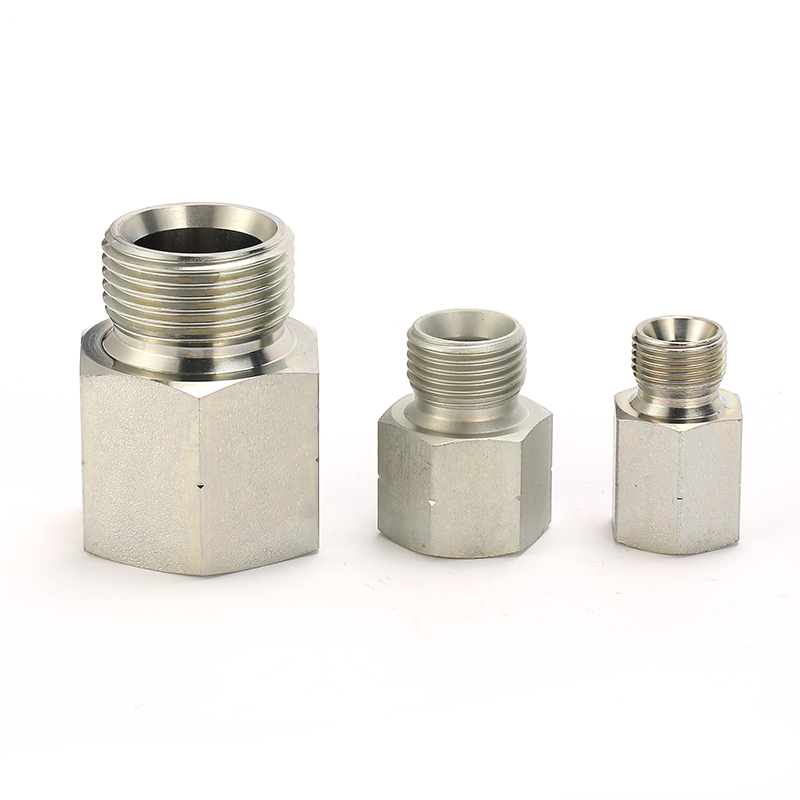

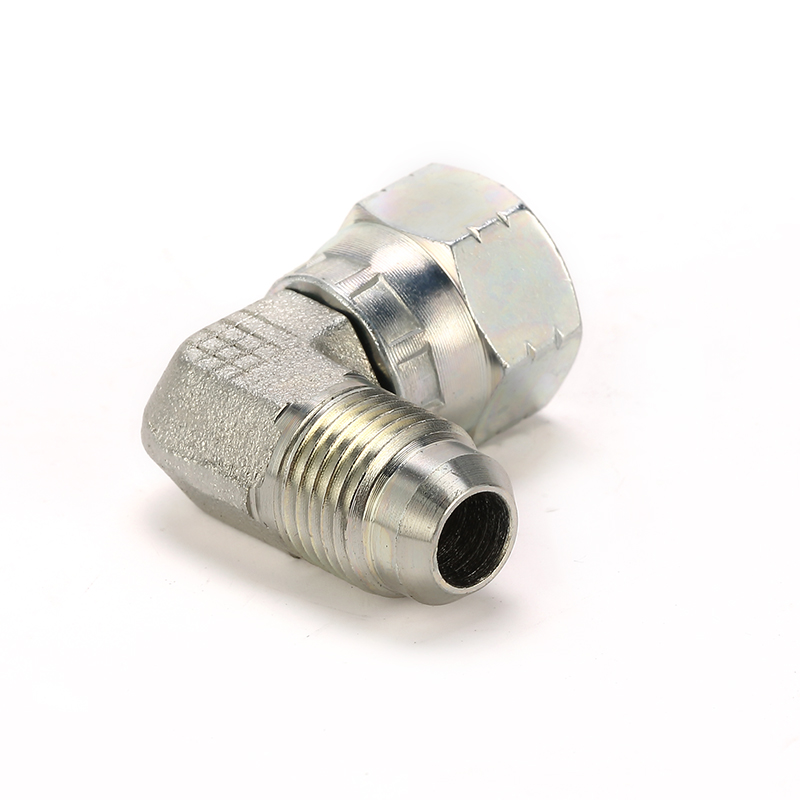

Pehel |P5OT |Hydraulic SAE O-ring Boss/BSPT Female Hose Adapter
PEHEL Hydraulic Model: 5OT
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: SAE/BSPT
About the item:
1. Versatile fittings – connect SAE male to BSPT female systems seamlessly.
2. SAE male thread – straight thread with O-ring boss ensures leak-proof sealing.
3. BSPT female port – tapered thread provides self-sealing, leak-tight connections.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Easy installation – thread-on design with O-ring saves assembly time.
