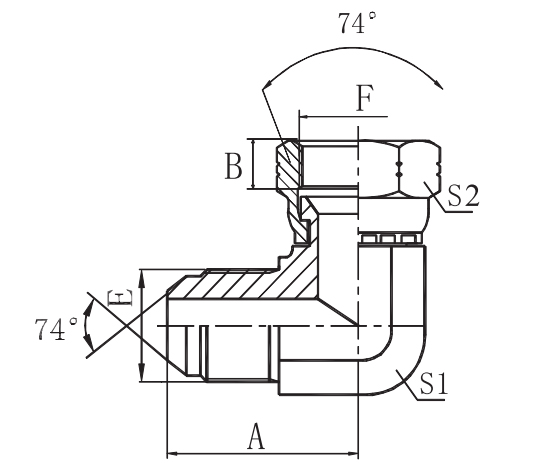

THREAD DIMENSIONS PART NO. E F A B S1 S2 2J9-02 5/16"X24 5/16"X24 21 5.6 11 12 2J9-03 3/8"X24 3/8"X24 22 5 11 14 2J9-04 7/16"X20 7/16"X20 24.5 9.5 11 17 2J9-05 1/2"X20 1/2"X20 26.5 9 14 19 2J9-06 9/16"X18 9/16"X18 26.9 9.5 14 19 2J9-06-08 9/16"X18 3/4"X16 28.5 10.8 16 24 2J9-08-06 3/4"X16 9/16"X18 32 9.5 19 19 2J9-08 3/4"X16 3/4"X16 32 10.8 19 24 2J9-08-10 3/4"X16 7/8"X14 32 12 19 27 2J9-10 7/8"X14 7/8"X14 37.8 12 22 27 2J9-10-08 7/8"X14 3/4"X16 37.8 10.8 22 24 2J9-10-12 7/8"X14 1.1/16"X12 39.5 13 24 32 2J9-12 1.1/16"X12 1.1/16"X12 44.2 13 27 32 2J9-12-10 1.1/16"X12 7/8"X14 44.2 12 27 27 2J9-12-16 1.1/16"X12 1.5/16"X12 46 14 30 41 2J9-14 1.3/16"X12 1.3/16"X12 47.5 15 30 36 2J9-16 1.5/16"X12 1.5/16"X12 48.8 14 33 41 2J9-16-20 1.5/16"X12 1.5/8"X12 54 15 41 50 2J9-20-16 1.5/8"X12 1.5/16"X12 55.5 14 41 41 2J9-20 1.5/8"X12 1.5/8"X12 55.5 15 41 50 2J9-20-24 1.5/8"X12 1.7/8"X12 59.5 19 48 55 2J9-24-20 1.7/8"X12 1.5/8"X12 62.5 15 48 50 2J9-24 1.7/8"X12 1.7/8"X12 62.5 19 48 55 2J9-32 2.1/2"X12 2.1/2"X12 75.5 23.5 63 75

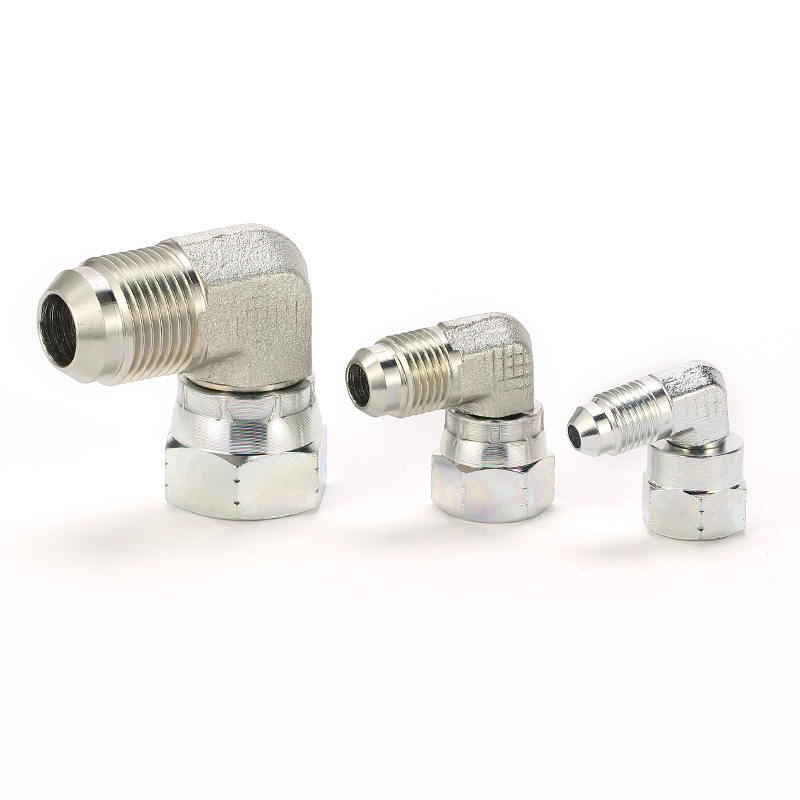

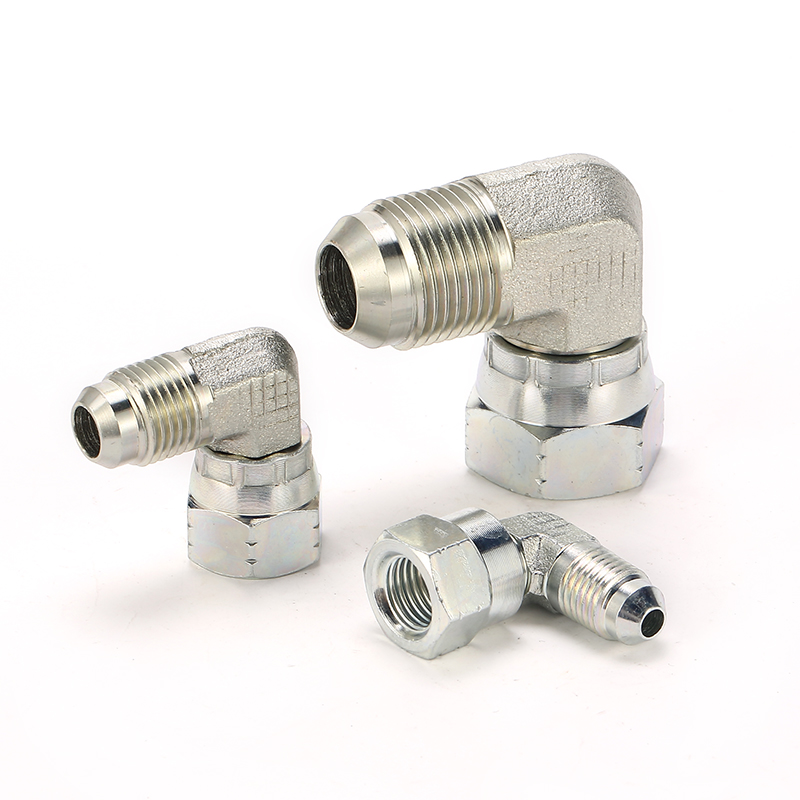

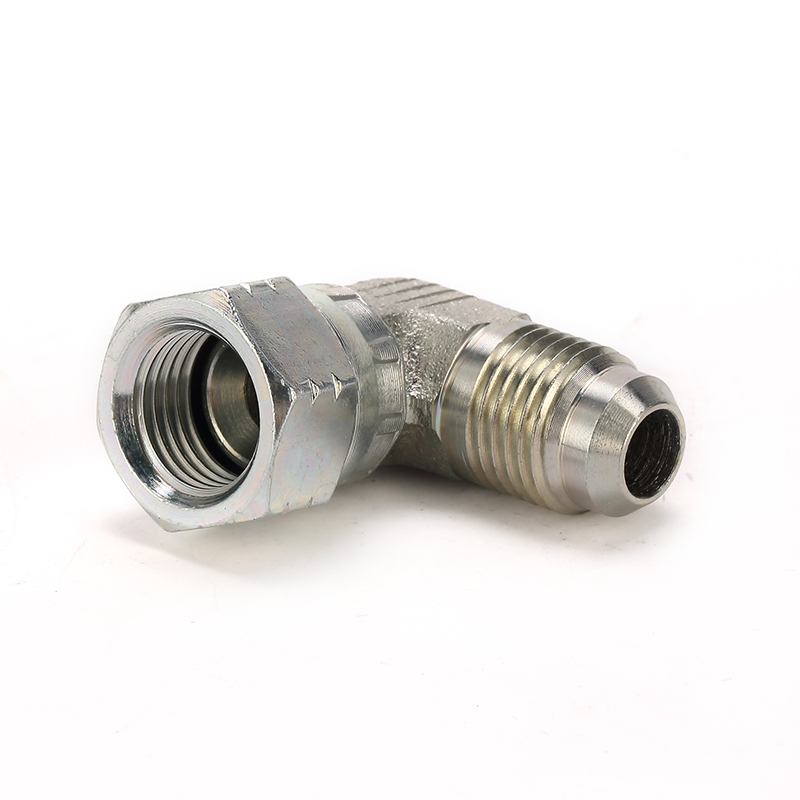

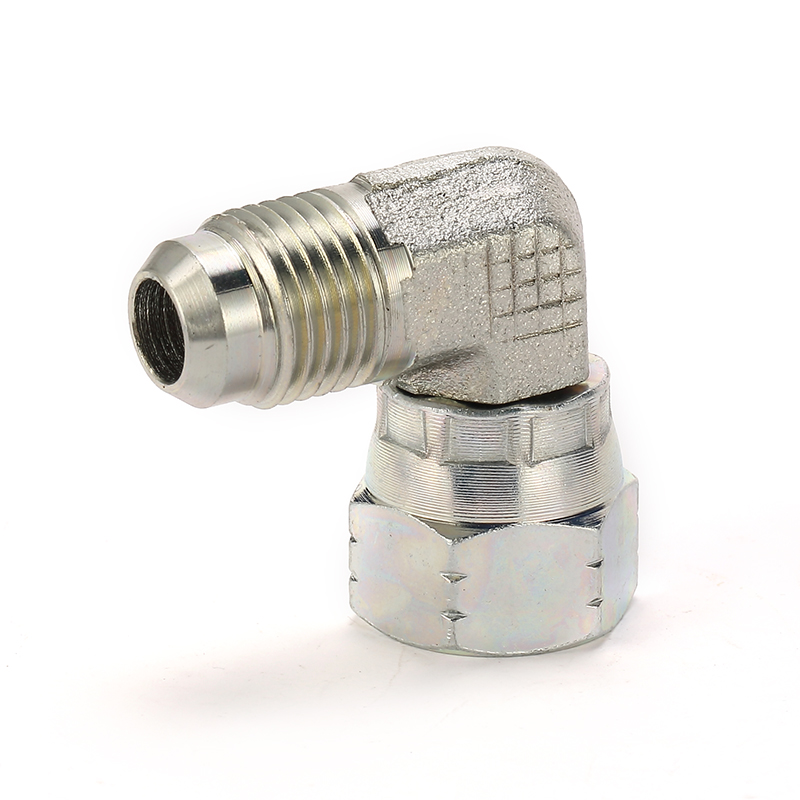

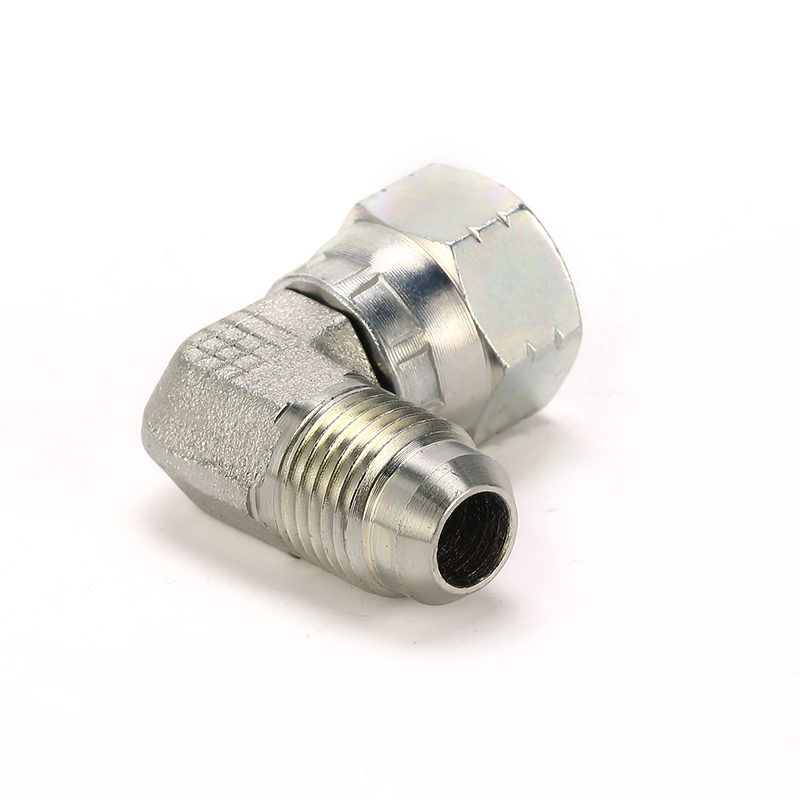

PEHEL / 2J9 / Hydraulic Adapter 90° Elbow JIC Male 74° CONE Long-Lasting Rust Prevention
PEHEL Hydraulic Model: P2J9
QTY:
Hydraulic Durable 90° Elbow JIC Male 74° Cone Adaptor Carbon Steel Easier To Install
Material: Carbon steel
Surface Treatment: White Zinc Plating
Brand: PEHEL, OEM
Color: Silver
Connector Type: Straight
Thread: JIC
About the item:
1. High-pressure rated up for reliable performance in demanding hydraulic systems.
2. Leak-proof sealing with precision threads prevents fluid loss and system contamination.
3. Durable steel construction with corrosion-resistant finish ensures long service life.
4. Versatile compatibility with BSP, NPT, JIC, and metric thread standards worldwide.
5. Easy installation and maintenance design reduces downtime and lowers overall costs
