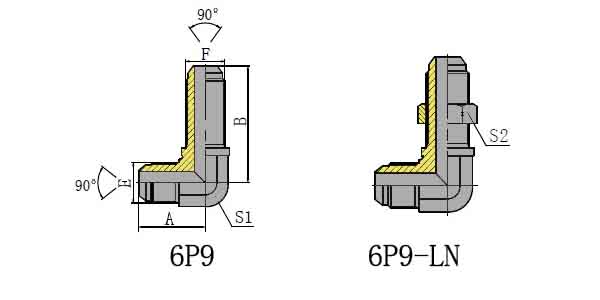

.PART NO THREAD DIMENSIONS E F A B S1 S2 6P9-06 5/8"X18 5/8"X18 15.7 36 24 24 Note:In case if you are interested to order the adapter in complete set with lock nut ,it is necessary to insert suffix "LN" after our part no.,for example 6P9-06LN.
Pehel/6P9/90° Elbow SAE 90deg Cone Male Bulkhead Connector/Lock Nut Can Be Assembled
PEHEL Hydraulic Model: 6P9
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Elbow
Thread Type: SAE 90 cone
About the item:
1.Threaded bulkhead body with included locknut provides stable, vibration-resistant fixation when routing lines through equipment walls, vehicle chassis, or control panels—prevents stress and movement at the pass-through point.
2.Combines a right-angle directional change with bulkhead mounting in a single compact fitting, enabling optimized line routing in tight installations and confined equipment spaces.
3.Fully conforms to SAE specifications, ensuring broad compatibility with standard hydraulic components and reliable performance across mobile equipment, industrial machinery, and pneumatic systems.
