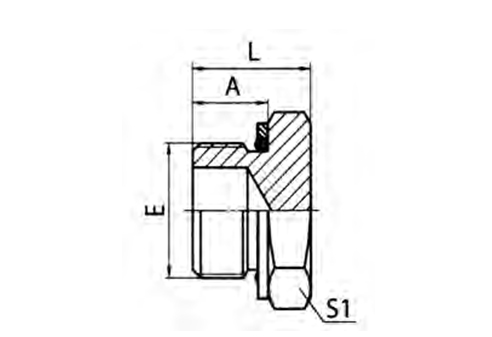

PART NO. THREAD O-RING DIMENSIONS E E A L S1 4H-12 M12X1.5 O09.3X2.4 11 17 17 4H-14 M14X1.5 O11.3X2.4 11 17 19 4H-16 M16X1.5 O13.3X2.4 11.5 20 22 4H-18 M18X1.5 O15.3X2.4 12.5 20.5 24 4H-22 M22X1.5 O19.3X2.4 13 23 27 4H-27 M27X2 O23.5X3.0 16 27 32 4H-33 M33X2 O29.5X3.0 16 27 41 4H-42 M42X2 O38.5X3.0 16 31 50
PEHEL/Metric Male L-series Plug
PEHEL Hydraulic Model: P4H
QTY:
Metric Male L-series Plug
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: Plug
Thread Type: Metric Male L-series
About the item:
1. PEHEL/Metric Male L-series Plug — hex head plug with metric male thread, model P4H.
2. O-ring under the head provides a reliable, leak-tight seal without thread sealant.
3. Available from M12x1.5 to M42x2 for a wide range of port sizes.
4. Precision-machined carbon steel construction delivers high strength and long service life.
5. Ideal for sealing hydraulic, pneumatic, oil and gas ports, manifolds and valve blocks.
