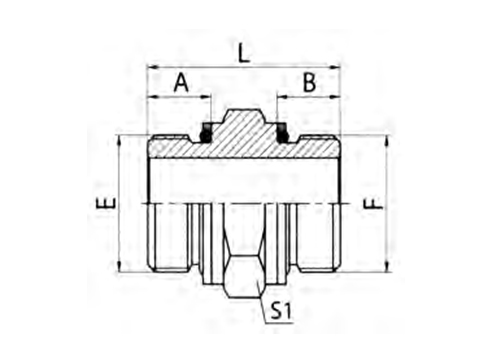

PART NO. THREAD O-RING DIMENSIONS E F E F A B L S1 1H-10 M10X1 M10X1 O08.1X1.6 O08.1X1.6 8.5 8.5 28 14 1H-12 M12X1.5 M12X1.5 O09.3X2.4 O09.3X2.4 11 11 33 17 1H-14 M14X1.5 M14X1.5 O11.3X2.4 O11.3X2.4 11 11 33 19 1H-16 M16X1.5 M16X1.5 O13.3X2.4 O13.3X2.4 11.5 11.5 34 22 1H-18 M18X1.5 M18X1.5 O15.3X2.4 O15.3X2.4 12.5 12.5 36 24 1H-22 M22X1.5 M22X1.5 O19.3X2.4 O19.3X2.4 13 13 39 27 1H-27 M27X2 M27X2 O23.5X3.0 O23.5X3.0 16 16 45 32 1H-33 M33X2 M33X2 O29.5X3.0 O29.5X3.0 16 16 48 41 1H-42 M42X2 M42X2 O38.5X3.0 O38.5X3.0 16 16 50 50 1H-48 M48X2 M48X2 O44.5X3.0 O44.5X3.0 17.5 17.5 53 55
PEHEL/Metric Male L-series
PEHEL Hydraulic Model: P1H
QTY:
Metric Male L-series
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type: Metric Male L-series
About the item:
1. 1H is L‑series metric male hydraulic adapter with built‑in O‑ring for face‑seal connection complying with DIN2353 standard.
2. Integrated O‑ring sealing delivers zero‑leak performance for medium‑pressure metric hydraulic circuits.
3. Full metric thread range covers M10×1 up to M48×2, matching various light‑series bite‑type tube assembly requirements.
4. Precisely CNC‑machined carbon‑steel body with zinc‑plated finish, offering reliable interchangeability and corrosion resistance.
5. Standard straight stud end widely adopted for industrial and mobile metric‑system hydraulic pipeline connections.
